Casablanca 99019 Quick Start Manual

Installation

OFF
Before installing the Universal Remove the canopy. If uncertain
Remote Control Receiver, use the how to remove it, reference the fan's
pull chains to set the fan speed to owner's manual. With wiring exposed,
HIGH and the light to ON. Be sure it may be helpful to note existing wire
power is OFF before proceeding connections or take a digital photo for
with installation. reference. Remove the wire connectors
that were connecting the wires from
the outlet box to the fan, leaving the
grounding wires connected.

Wiring

blue
yellow

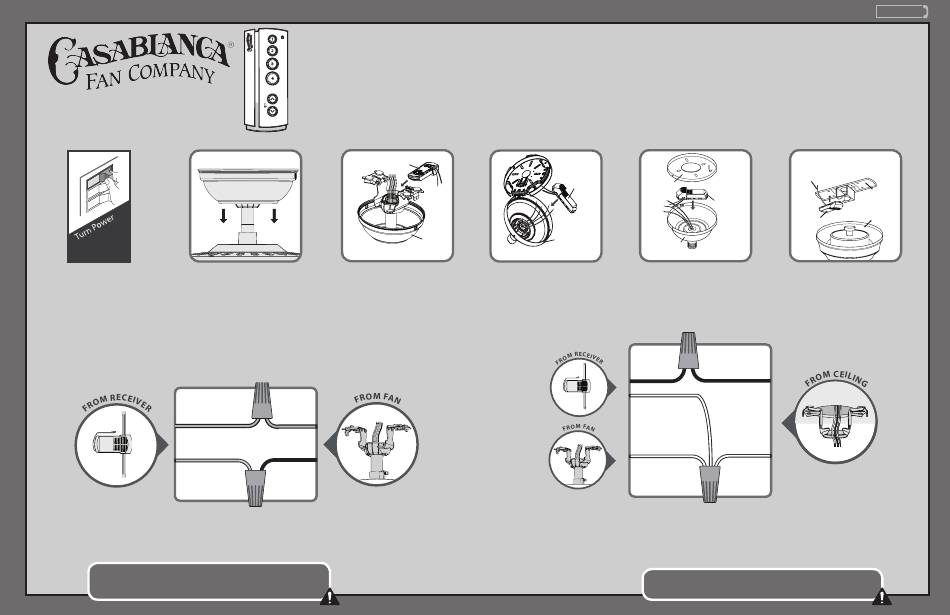

CONNECT WIRES FROM RECEIVER TO FAN - Using the orange wire connectors, connect the blue wire from the
receiver to the blue wire (or possibly black with white stripe wire) from the fan. Connect the yellow wire from the
receiver to the black wire from the fan.
If you're uncertain about wire colors or connections, please contact a qualified electrician.
To avoid possible electrical shock, before installing or servicing your fan, disconnect
the power by turning off the circuit breakers to the outlet box and associated wall
switch location. If you cannot lock the circuit breakers in the off position, securely
fasten a prominent warning device, such as a tag, to the service panel.
Universal
Remote Control
Transmitter &
Receiver

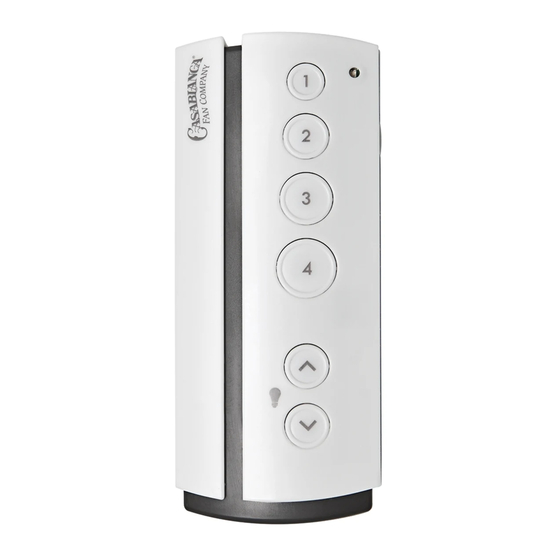

Model 99019
Receiver
OR
Canopy
Choose the hanging system that most closely resembles the one used by your fan and install the receiver and wire as directed.
Note: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire, leaving a minimum of 8" remaining. Re-strip the fan lead wires 1/2" . Place remaining excess
wire into the ceiling electrical box. The bracket and fan must remain properly grounded.
This Remote Control Transmitter and Receiver is not compatible with Casablanca Hang Tru® Canopy Systems.
You may have installation issues if the fan is installed on an angled ceiling.
blue
black
M6009-01 • 05/18/15 • © 2012–2015 Casablanca Fan Company
Ceiling
Receiver
Plate
Receiver
OR
Canopy
Canopy
black black (ungrounded)
white
white white (grounded)
CONNECT WIRES FROM RECEIVER AND FAN TO WIRES FROM OUTLET BOX - Using the orange wire connectors,
connect the black wire (ungrounded) from the ceiling to the black wire from the receiver. Connect the white wire
(grounded) from the ceiling to both the white wire from the receiver and the white wire from the fan.
AFTER ALL WIRES ARE CONNECTED and secured with wire connectors, re-install the canopy.
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
www.CasablancaFanCo.com
1.888.227.2178
For low profile fans, the receiver should be
secured to the ceiling bracket with a cable tie.
Cable Tie
Ceiling
Bracket
OR
Fan Body
Receiver
