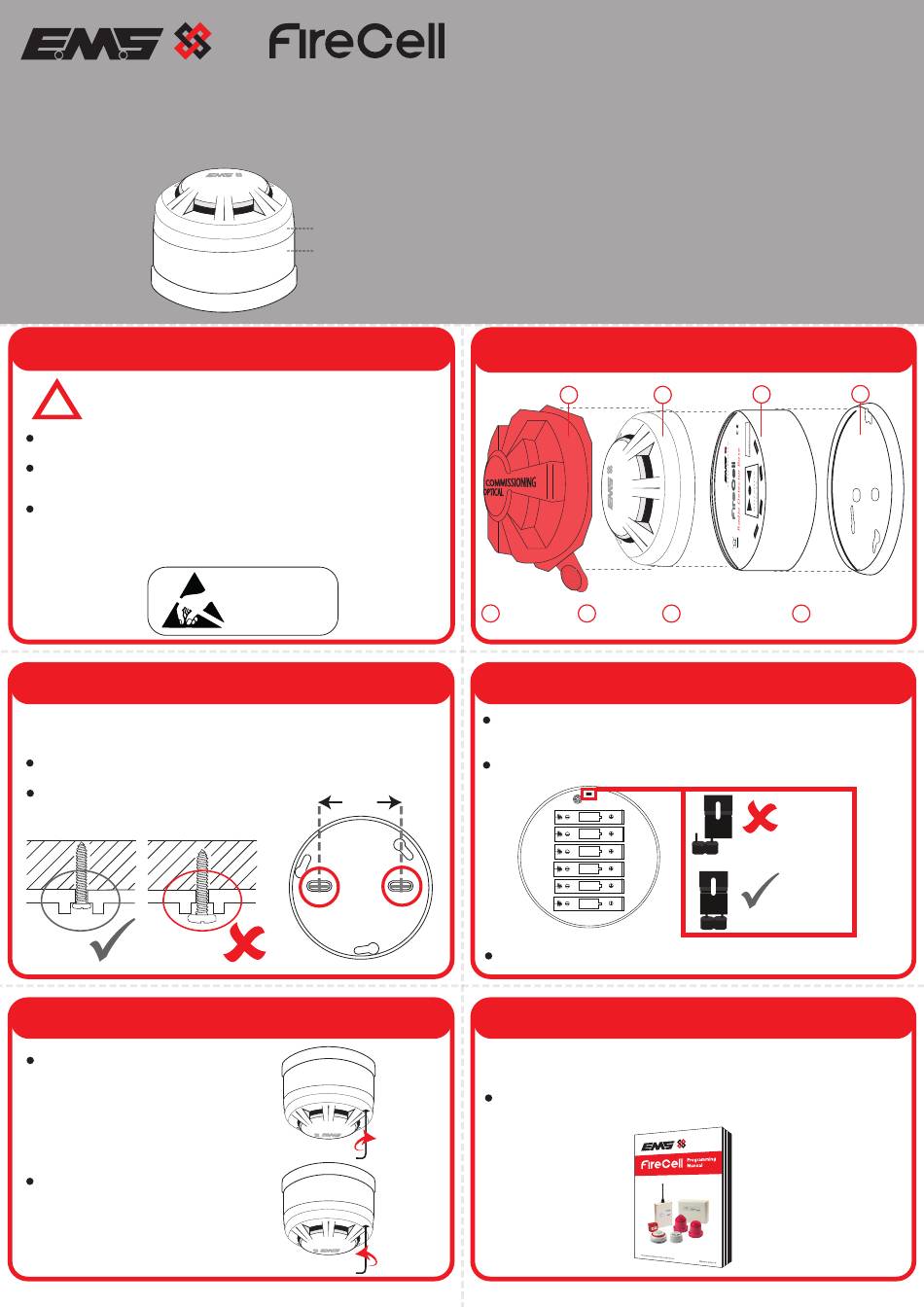

EMS FireCell FCX-175-001 Installation Manual

Wireless Detector
Installation Guide
1 Pre Installation
Installation must conform to applicable local installation
!
codes and should only be installed by a fully trained
competent person.
Ensure that the device is installed as per the site survey.
The use of a non-metallic spacer should be considered if
mounting the device on to a metal surface.
Do NOT Press the Log On button on a pre-programmed
device, as this will cause communication with the Control
Panel to be lost. Should this happen, delete the device from
the system and add it back on.
3 Fix Mounting Plate
Remove the mounting plate from the wireless module by turning
it anticlockwise.
Use both mounting holes to ensure a firm fixing.
Use suitable fasteners and fixings.
5 Optional Device Locking
To lock the detector into
the wireless module,
insert a 1.5mm Allen key
into the allen key slot and
turn clockwise as shown.
To unlock, insert a 1.5mm
Allen key into the Allen
key slot and turn
anticlockwise as shown.
©2015 EMS Security Group Ltd. All rights reserved
Example shown:
www.emsgroup.co.uk
Radio Detector Base
FCX-177-001
IDENT
PRESS HERE TO
LOG ON
FCX-170-001
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
63mm
Part No Product Description
FCX-170-001 Wireless Detector Base Only
FCX-175-001 Heat A1R Detector Only
FCX-176-001 Heat CS Detector Only
FCX-177-001 Optical Smoke Detector Only
See the Specification section for compliance information.
2 Components
1
1 2
Dust Cover Detector
4 Power Device
When fitting / replacing batteries; observe correct polarity,
using only specified batteries.
Connect the power jumper across the PIN header.
SIZE AA
SIZE AA
SIZE AA
SIZE AA
SIZE AA
SIZE AA
Once powered, reassemble the device.
6 Configuration
The device's loop address is configured within the menu structure
of the Radio Hub.
Refer to the programming manual (Doc Ref: MK98) for full
programming information.
Page 1 of 2
2 3
3 4
Wireless Module
Mounting Plate
device
unpowered
(pins unlinked)
device
powered
(both pins linked)
Free to download from
www.emsgroup.co.uk
TSD044 Iss 11 09/02/2016
CPR
[3]
[1]
[1]
[2]
4
AJM
