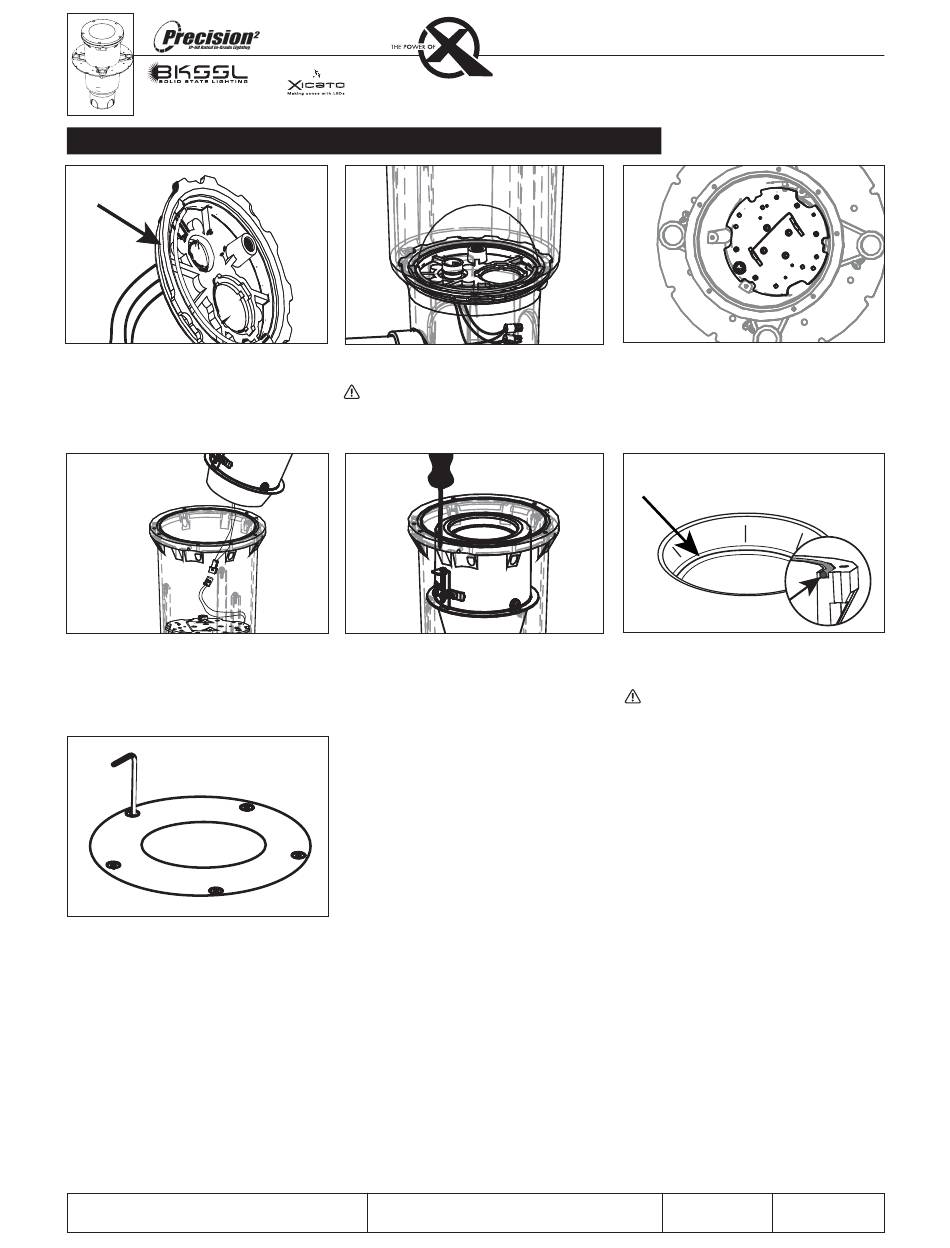

Fixture Installation (cont.)
3. Wipe O-ring clean of debris on Patented Hydro-
Lock™ Barrier Plate. Install Patented Hydro-Lock™
Barrier Plate by aligning keyholes with dome-
topped fasteners at the bottom of the housing
and while grasping handle; push down on
Patented Hydro-Lock™ Barrier Plate until firmly
seated.
7. Attach optical assembly to installed driver
assembly with quick disconnect.
10. Secure faceplate assembly to housing with (5)
#10 socket head screws as provided on faceplate
with 3/32" Allen wrench. Hand tighten screws in
a cross pattern to 25 in-lbs. to create proper seal.
B-K LIGHTING
powered by
4. Turn Hydro-Lock™ Barrier Plate clockwise ¼" to
lock.
Patented Hydro-Lock™ Barrier Plate must be
completely seated to ensure proper seal or
water may intrude. This step must be done
as stated or you will void your warranty.
8. Place optical assembly in housing, resting
the optilock on the pins provided inside the
housing. Aim fixture by adjusting optilock with
Philips screw driver.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
5. Connect transformer assembly to Patented
Hydro-Lock™ Barrier Plate
disconnect.
6. Attach driver assembly to housing by aligning
keyhole notch under one (1) of three (3) #8
screw heads. Tighten screw heads with Philips
screw driver.
9. Carefully place O-ring into the groove on top of
housing, keep free of dirt and debris. Dirt and
debris may allow water entry into fixture.
This step must be done as stated or you will
void your warranty.
RELEASE DATE REFERENCE NUMBER
6-28-13 INS001129
HP2
with quick
