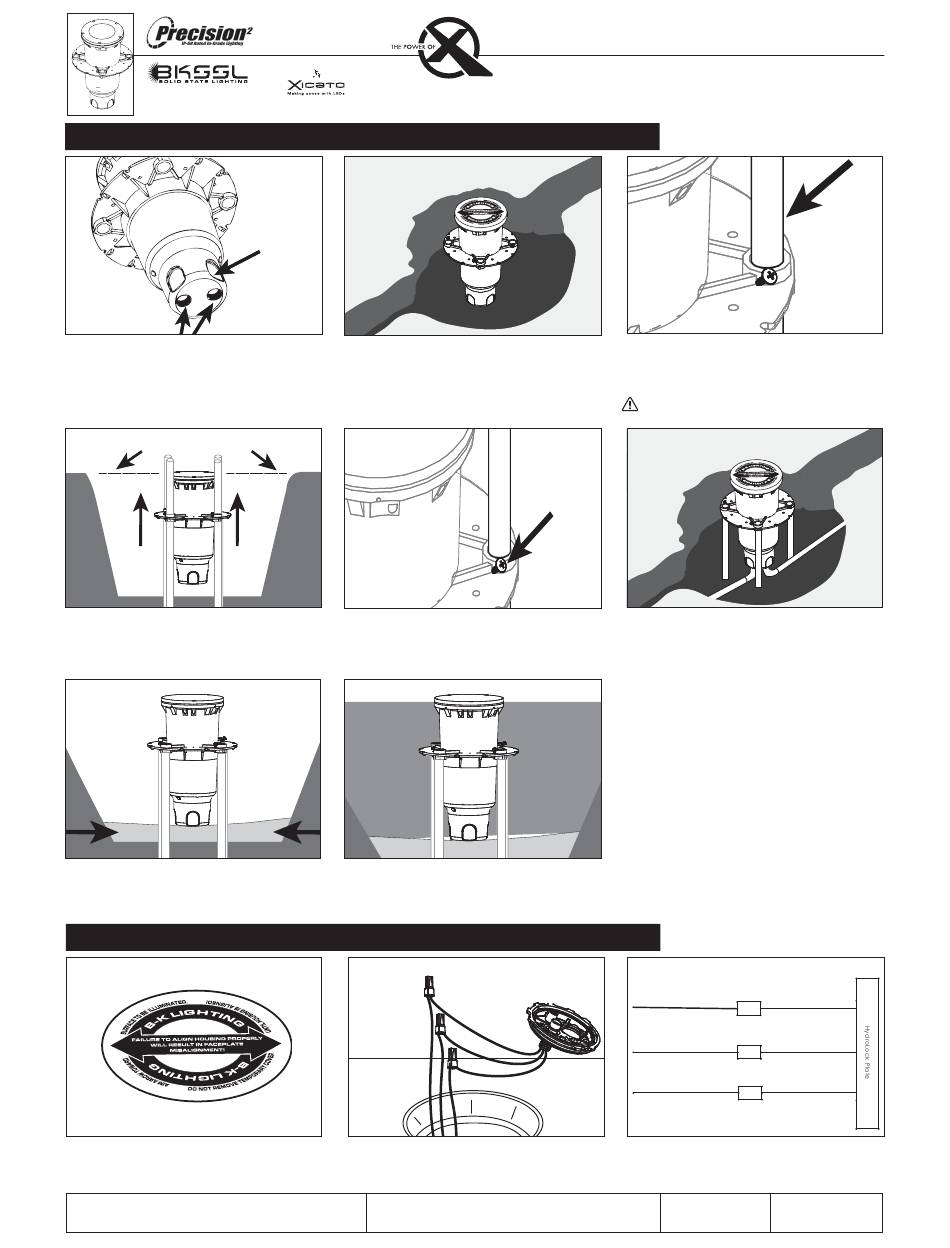

Housing Installation for HP
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of the
junction box.
Flush with finished grade
4. Raise the top of the housing flush to finished
grade using EMT/Conduit for support. Use a
level to aid in housing installation. If housing
comes with a concrete pour collar (CPC) raise
housing flush to finished grade.
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with
sand for drainage.
Fixture Installation
1. Remove temporary cover.
B-K LIGHTING
powered by
2
Side Flats
2. Place housing in hole. Align junction box in the
path of the conduit trench.
5. When housing is level, tighten screws on
Patented Stability Flange™ to secure housing to
EMT/Conduit. Remove excess EMT as needed.
8. Fill and tamp soil to the appropriate height
leaving room for sod, pavers, concrete, etc. to
be level with the top of the temporary cover.
2. Make connections using silicone filled wire
nuts (provided) to leads on the bottom of
Patented Hydro-Lock™Barrier Plate Assembly.
See wiring diagram.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
3. Insert (4) pieces of ½" EMT/Conduit longer than
the height of the hole through the Patented
Stability Flange™. Hammer substrate into
ground until housing is secure.
Leave sufficient clearance to elevate housing
to finished grade.
6. Connect the conduit to the conduit connectors.
LINE
LINE
COM
COM
GROUND
GROUND
Wiring Diagram
RELEASE DATE
REFERENCE NUMBER
6-28-13
INS001129
HP2
