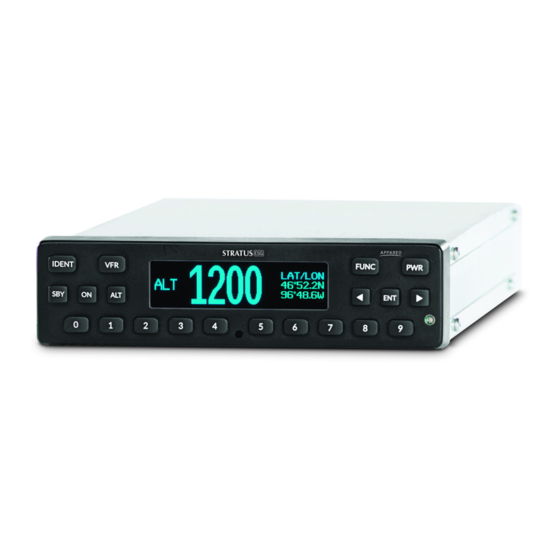

Appareo Stratus ESG Manual

Hide thumbs Also See for Stratus ESG:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
General Install
Q: Can I use Stratus ESG's WAAS GPS signal to feed other
avionics such as a navigator or emergency locator?
No, the WAAS GPS position is only available to the transponder for ADS-B out
purposes, and, if connected, a Stratus portable ADS-B in receiver.
Q: Can I use an existing WAAS GPS antenna with Stratus ESG?
If the antenna meets the specifications outlined in our
instructions
and is not being used for any other avionics, then yes you can.
Must meet TSO-C144 OR TSO-C190 requirements
Q: Can I use an existing transponder antenna with Stratus ES
and Stratus ESG?
If the antenna meets the specifications outlined in our
instructions
and is not being used for any other avionics, then yes you can.
Q: How does the resolution of a serial altitude encoder affect
its configuration with Stratus ES and Stratus ESG?
If the altitude encoder resolution is 25 ft or better (e.g. 10 ft), choose "SERIAL-
TRIM/GAR-25FT" or "SERIAL-SHAD/RMS-25FT."
If the altitude encoder resolution is 25 ft or worse (e.g. 100 ft), choose
"SERIAL-TRIM/GAR" or "SERIAL-SHAD/RMS."
Q: What are the dimensions of Stratus ES and Stratus ESG?
Designed with the common 1.65" tall form factor, it's an easy replacement for
existing transponders.
Bezel Width
6.38 inches (162 mm)
installation
installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stratus ESG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Appareo Stratus ESG

Summary of Contents for Appareo Stratus ESG

  • Page 1 General Install Q: Can I use Stratus ESG’s WAAS GPS signal to feed other avionics such as a navigator or emergency locator? No, the WAAS GPS position is only available to the transponder for ADS-B out purposes, and, if connected, a Stratus portable ADS-B in receiver.
  • Page 2 Bezel Height 1.69 inches (43 mm) Rack Width 6.32 inches (160.4 mm) Rack Height 1.65 inches (42 mm) Depth* 10.75 inches (273 mm) *Depth from back of bezel to end of strain relief on rack (not compensating for wire bend radius) What types of altitude encoders work with Stratus ES/ESG? The altitude encoder must meet the performance requirements of TSO-C88 (a or b).
  • Page 3 If the encoder is an A-30.9, then it is factory-set for Stratus ES/ESG’s format with 10′ increments. Configure Stratus ES/ESG’s altitude source settings to TRIM/GAR -25. NOTE: You may need to contact the encoder manufacturer for assistance to open the encoder and set the jumpers correctly. •...

  • Page 4: Troubleshooting

    ADS-B reception, and will be supplied power from Stratus ES or Stratus ESG. Q: How do I configure Stratus 2 or Stratus 2S to automatically power on when Stratus ES or Stratus ESG is powered on? 1. Open ForeFlight Mobile. 2. Tap More in the bottom right corner.
  • Page 5 Stratus 2: Version 2.1 Q: Why am I hearing a ticking noise in my audio/intercom system after installing Stratus ES or Stratus ESG? A ticking noise may be noticed after installing a new digital transponder on an aircraft with older audio/intercom systems. The ticking occurs when transmissions from the transponder are absorbed by existing audio cables and connectors with inadequate filtering and/or shielding.
  • Page 6 SBY to ON or ALT mode? If a King KT-76A, Collins TDR-950, or Narco AT-50A or AT-150 was installed before Stratus ES or Stratus ESG in a 28 volt airplane, ensure that you removed the dropping resistor that was installed with these models. Stratus ES or Stratus ESG should be connected directly to the power bus.
  • Page 7 Q: Why does my Stratus 2i have a flashing yellow GPS light and no GPS reception even though the transponder has good satellite reception? 1. Stratus 2i might need a factory reset. Perform a factory reset by pressing and holding the power button on top for 30 seconds. After it reboots, the GPS light will turn solid green if GPS lock is achieved.
  • Page 8 position. 3. Remove the transponder, then install the rack. I’m not getting good GPS reception. What should I check? Check that there are 5 volts on the coax center conductor at the GPS  antenna. If there are 5 volts: Try connecting another GPS antenna. Garmin ...
  • Page 9 7. Verify that GPS satellites can acquire in a timely manner. Are the BIT codes for Stratus ES and Stratus ESG different? Yes, some BIT codes are only for Stratus ES, and some are only for Stratus ESG.
