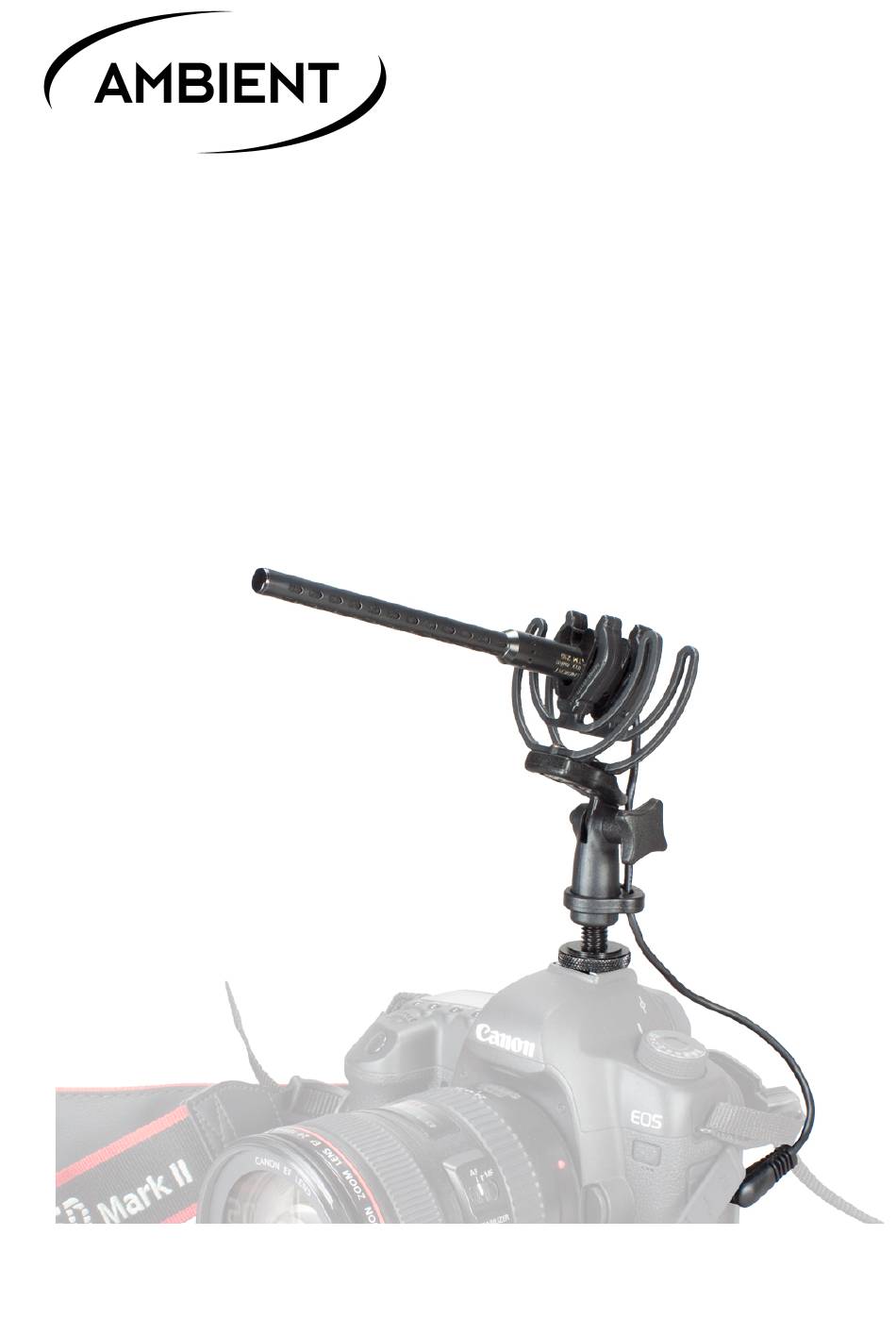

- Page 1 Mini Shotgun Microphone TinyMike ATM 216 experience quality.
-
Page 2: Table Of Contents
ATM216 Table of contents page 1. Thank you for choosing an Ambient product 2. Features 3. ATM 216 DSLR Miniature Electret Shotgun Microphone for DSLR Cameras 4. ATM 216 PH Miniature Electret Shotgun for cameras with 48V Phantom power 5. -
Page 3: Thank You For Choosing An Ambient Product
ATM216 Thank you for choosing an Ambient product This high-quality miniature microphone can work straight of the low voltage power on DSLR or small DV cameras. Alternatively, an active adaptor cable allows phantom powered operation, which makes it all the same a suitable accessory for the popular small HD cameras with XLR inputs. -
Page 4: Atm 216 Dslr
TinyMike, miniature electret shotgun microphone ATM216 Velvet foam windshield ATMWS Custom Rycote suspension incl. insert and QBS hot shoe mount ATHRY Adaptor cable Binder 3-pin to 1/8” mini jack ATM3.5 Adaptor cable Binder 3-pin to 1/8” mini jack, hi-sens. ATM3.5H www.ambient.de/en... -
Page 5: Atm 216 Ph
Velvet foam windshield ATMWS Custom Rycote suspension incl. insert and QBS hot shoe mount ATHRY Active adaptor cable Binder 3-pin to 3-pin XLR male ATMEMP Concentric mounting adaptor with variable diameter to fit all ATHPD generic mic brackets ©2019, Ambient Recording GmbH... -
Page 6: Atm 216 Am
Miniature Electret Shotgun for ARRI AMIRA Prod.nr. Description ATM216 TinyMike, miniature electret shotgun microphone ATMWS Velvet foam windshield ATMWJ Fluffy windshield ATHAM Custom suspension for ARRI AMIRA incl. 4 pieces cable brackets ATMEMPAM Active adaptor cable Binder 3-pin to 3-pin XLR male right angle www.ambient.de/en... -
Page 7: Cable Mounting Instructions Atm 216 Am
ATM216 Cable Mounting Instructions ATM 216 AM ©2019, Ambient Recording GmbH... -
Page 8: Accessories
Weight: approx. 10 g Screw diameter: 3/8" Screw length: approx. 27 mm Dimension (cold shoe): 18 x 18 mm Including Allen key® ATMWJ Fluffy Windshield Technical Details Length: approx. 200 mm Diameter: OD = 100 mm Color: black Material: fur www.ambient.de/en... -
Page 9: Atb101
Dimension (accessory mount): 60 x 65 mm Dimension (additional hot shoe): 45 x 25 mm Dimension (cold shoe): 18 x 18mm Material (accessory mount): POM, metal Weight: approx. 46 g Example for use (Sennheiser wireless fixed by belt clip) ©2019, Ambient Recording GmbH... -
Page 10: Technical Data
Polar pattern Hyper cardioid (mini shotgun) Frequency response +- 2 dB 20- 18000 Hz Sensitivity 17mV/ Pa Equivalent SPL rated at CCIR 33dB Max. SPL 1kOhm 128dB Dimensions Ø 12/ 8 mm x 140 mm Weight (without suspension) 30 g www.ambient.de/en... -
Page 11: Cable Wiring
Active cable for 48 Volt Phantom power Binder 3-pin to 3-pin XLR male Length: approx. 40 cm Binder plug XLR cap: red Minus wire & shield Minus wire only NC3MX-B with EMP plate on Binder plug ©2019, Ambient Recording GmbH... -
Page 12: Supplementary Information
ATM216 Supplementary Information To guarantee the best experience with your TinyMike, Ambient provides 2 different 3-pin Binder to mini jack interconnection cables: One cable is unmarked and a straight connection to the camera/ recorder while the other one is marked with a yellow sleeve and attenuates the signal level for recording high sound levels. -
Page 13: Warranty
ONE (1) year from date of original retail purchase. This is a non- transferable warranty that extends only to the original purchaser. Ambient Recording GmbH will repair or replace the product at its discretion at no charge. Warranty claims due to severe service conditions will be addressed on an individual basis. -
Page 14: Approvals
ATM216 Approvals Conformity Statement: Manufacturer´s Name: Ambient Recording GmbH Manufacturer´s Address: Schleissheimer Str. 181 C DE ‒ 80797 Munich, Germany declares that the product: ATM 216, TinyMike is conformity with: Document No. EN 301 489-01 FCC-Code of Federal Regulations, CFR47, Part 15, Sections 15.107 and 15.109 (Class B) - Page 15 MADE IN GERMANY Ambient Recording GmbH Schleissheimer Str. 181 C | D – 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 6518558 www.ambient.de | info@ambient.de © 2019, Ambient Recording GmbH...
