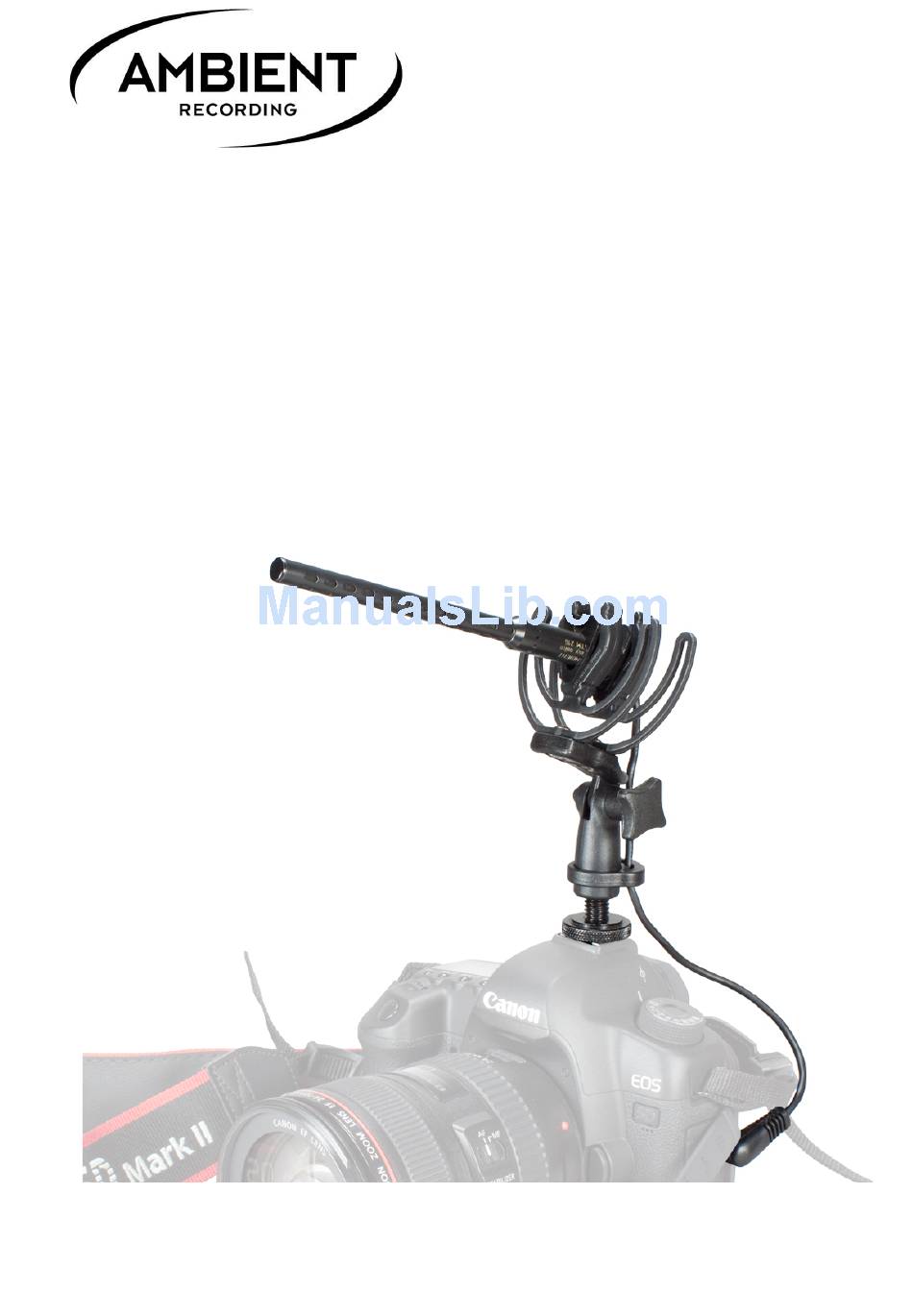

- Page 1 Mini Shotgun Microphone TinyMike ATM 216 experience quality.
-
Page 2: Table Of Contents
MADE IN GERMANY ATM 216 CONTENT PAGE Thank you for choosing an Ambient product. ATM 216 DSLR ATM 216 PH Accessories ATMWJ ATB101 ATMB ATMP Technical Data Cable Wiring ATM3.5 ATM3.5H ATMEMP Supplementary Information www.ambient.de/en... -
Page 3: Thank You For Choosing An Ambient Product
ATM 216 Thank you for choosing an Ambient product. This high quality miniature microphone can work straight of the low voltage power on DSLR or small DV cameras. Alternatively, an active adapter cable allows phantom powered operation, which makes it all the same a suitable accessory for the popular small HD cameras with XLR inputs. -
Page 4: Atm 216 Dslr
Tiny Mike, miniature electret shotgun microphone ATM216 Velvet foam wind shield ATMWS Custom Rycote suspension incl. insert and QBS hot shoe mount ATHRY Adaptor cable Binder 3-pin to 1/8” mini jack ATM3.5 Adaptor cable Binder 3-pin to 1/8” mini jack, hi-sens. ATM3.5H www.ambient.de/en... -
Page 5: Atm 216 Ph
ATMWS Custom Rycote suspension incl. insert and QBS hot shoe mount ATHRY Active adaptor cable Binder 3-pin to 3-pin XLR male ATMEMP Concentric mounting adaptor with variable diameter to fit all ATHPD generic mic brackets © 2014, Ambient Recording GmbH... -
Page 6: Accessories
Weight: approx. 10 g Screw diameter: 3/8" Screw length: approx. 27 mm Dimension (cold shoe): 18 x 18 mm Including Allen key® Fluffy Wind Shield ATMWJ Technical Details Length: approx. 200 mm Diameter: OD = 100 mm Color: black Material: fur www.ambient.de/en... -
Page 7: Atb101
Dimension (additional hot shoe): 45 x 25 mm Dimension (cold shoe): 18 x 18mm Material (accessory mount): POM, metal Weight: approx. 46 g Example for use (Sennheis er wireless fixed by b elt cli p) © 2014, Ambient Recording GmbH... -
Page 8: Technical Data
Polar pattern Hyper cardioid (mini shotgun) Frequency response +- 2 dB 20- 18000 Hz Sensitivity 17mV/ Pa Equivalent SPL rated at CCIR 33dB Max. SPL 1kOhm 128dB Dimensions Ø 12/ 8 mm x 140 mm Weight (without suspension) 30 g www.ambient.de/en... -
Page 9: Cable Wiring
Active cable for 48 Volt Phantom power Binder 3-pin to 3-pin XLR male Length: approx. 40 cm XLR cap: red Binder plug Minus wire & shield Minus wire only NC3MX-B with EMP plate on Binder plug © 2014, Ambient Recording GmbH... -
Page 10: Supplementary Information
MADE IN GERMANY ATM 216 Supplementary Information To guarantee the best experience with your TinyMike, Ambient provides 2 different 3-pin Binder to mini jack interconnection cables: One cable is unmarked and a straight connection to the camera/ recorder while the other one is marked with a yellow sleeve and attenuates the signal level for recording high sound levels. - Page 11 MADE IN GERMANY © 2014, Ambient Recording GmbH Ambient Recording GmbH Schleissheimer Straße 181 C | D – 80797 Munich | vox +49 89 36005510-0 | fax +49 89 651855 www.ambient.de/en | info@ambient.de...
