- Page 1 Microphone ABT-M01 User Manual ver. 04.2020 www.ambientsystem.eu...
-
Page 2: Table Of Contents
Microphone ABT-M01 User Manual Table of Contents 1. Safety __________________________________________________________________________________ 2. ABT-M01 _______________________________________________________________________________ 3. Connection diagram ___________________________________________________________________ 4. miniVES settings _______________________________________________________________________ 5. Technical data _________________________________________________________________________... -
Page 3: Safety
1. Safety Danger! High risk: This symbol indicates an imminently hazardous situation such as "Dangerous Voltage" inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death. Warning! Medium risk: Indicates a potentially hazardous situation. If not avoided, this could result in minor or moderate bodily injury. Caution! Low risk: Indicates a potentially hazardous situation. - Page 4 Microphone ABT-M01 User Manual Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat or in direct sunlight. No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Page 5 Do not disassemble the device or attempt to repair or modify it. The device does not include user replaceable components inside the chassis. Opening the chassis and unauthorized repairs will void the warranty. Unauthorized substitutions may result in fire, electric shock or other hazards. Safety check.
- Page 6 Microphone ABT-M01 User Manual This label may appear on the bottom of the apparatus due to space limitations. Caution! To reduce the risk of electrical shock, DO NOT open covers. Refer servicing to qualified service personnel only. Warning! To prevent fire or shock hazard, do not expose units to rain or moisture.
-
Page 7: Abt-M01

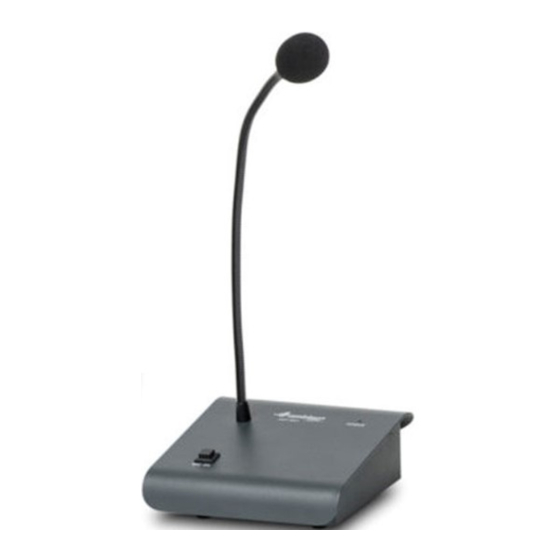

2. ABT-M01 The ABT-M01 microphone is an affordable fully analog device. It is equipped with a built in gong generated onboard the device, accessible through the switch on the back panel. The gong as well as the microphone itself has an individual volume control knob also placed on the back panel of the device. -
Page 8: Connection Diagram
Audio IN Audio OUT +24 VDC +48 VDC LINE D LINE C LINE B LINE A HV AUDIO IN 8P8C 8P8C 150 mA 350 mA POWER 1 2 3 4 6 7 8 Fig. 3. Connecting the ABT-M01 microphone to miniVES... -
Page 9: Minives Settings
4. miniVES settings » Change the generic name of the Audio input no.3 to Local Audio IN » Create a Zone group – All Zones and add all of the available zones » Create a new matrix and name it Microphone – add the Local Audio IN input from the available Audio inputs field and the All zones zone group »... -
Page 10: Technical Data
Microphone ABT-M01 User Manual 5. Technical data Model ABT-M01 Operating voltage 20 – 57 VDC Efficiency 10 mV / Pa Output level 775 mV Maximum distance from amplifier 250 m Recommended cable type Connector Type 8P8C (RJ45) Dimensions without 150 × 60 × 165 mm... - Page 12 Ambient System Sp. z o.o. ul. Bysewska 27 | 80-298 Gdańsk | Poland T: +48 58 345 51 95 | ambient@ambientsystem.eu www.ambientsystem.eu...
