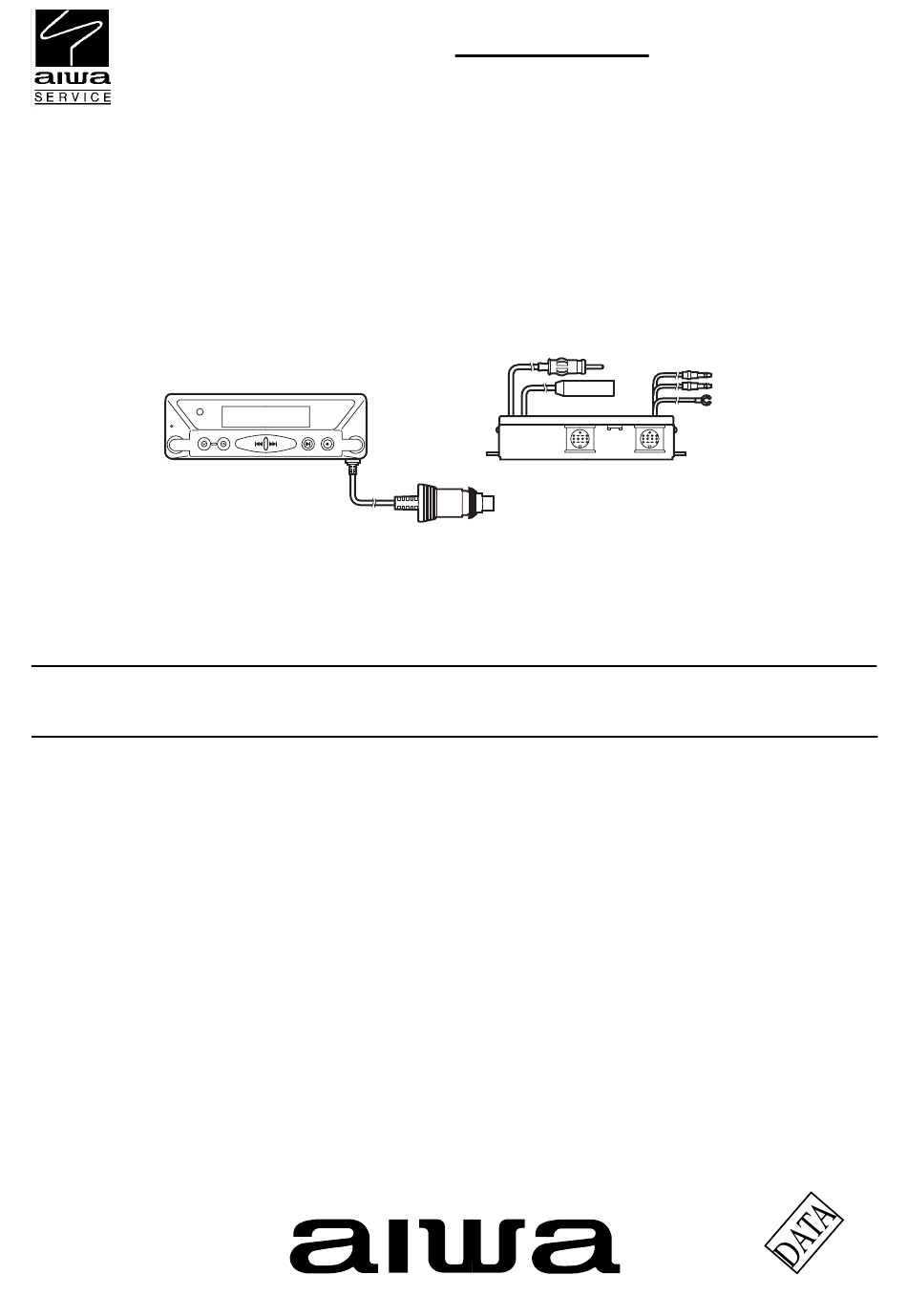

SERVICE MANUAL
STEREO CAR RF-MODULATOR UNIT
RF-M60
SPECIFICATIONS
Remote control unit
Dimensions
Weight
CD changer controller (FM modulator)
Transfer frequency
Dimensions
Weight
• Design and specifications are subject to change
without notice.
S/M Code No. 09-994-327-6O1
128 x 45 x 22 mm (w/h/d)
1
13
7
(5
/
x 1
/
x
/
in.)
8
16
8
185 g (0.41 lb.)
88.7/89.1 MHz switchable
110 x 55 x 31 mm (w/h/d)
(4
3
/
x 2
1
/
x 1
1
/
in.)
8
4
4
290 g (0.64 lb.)
YU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aiwa RF-M60
Summary of Contents for Aiwa RF-M60
- Page 1 RF-M60 SERVICE MANUAL STEREO CAR RF-MODULATOR UNIT SPECIFICATIONS Remote control unit Dimensions 128 x 45 x 22 mm (w/h/d) in.) Weight 185 g (0.41 lb.) CD changer controller (FM modulator) Transfer frequency 88.7/89.1 MHz switchable Dimensions 110 x 55 x 31 mm (w/h/d) in.)
-
Page 2: Electrical Main Parts List
ELECTRICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION SW11 S5-526-38Z-000 SW,SLIDE MS12006 S6-176-02D-000 X’TAL,7.2M S0-IKE-925-600 IC,KIC9256P S6-202-SDA-010 X’TAL,38K S0-INE-753-104 IC,UPD753104GK-534-BA8 87-070-427-080 IC,KIA78L05BP S0-ISS-57C-030 IC,KS57C0301 CONTROL C.B S0-IKE-703-200 IC,KIA7032AP CN11 SD-685-0SD-500 CONN ASSY,13P CORD DIN S0-INJ-M20-35D IC,NJM2035 LCD1... -
Page 3: Transistor Illustration
TRANSISTOR ILLUSTRATION E C B E C B KTA1271Y KRC103M KRA105S KTC3194O KTC3199Y KRC103S KTC3203Y KTC3875S LCD DISPLAY... - Page 4 SCHEMATIC DIAGRAM-1 (FM MODULATOR SECTION)
- Page 5 WIRING-1 (FM MODULATOR SECTION) A FM MODULATOR C.B POWER IC13 SKT11 C58 R49 SKT11 CHANGER VR11 VR11 LEVEL ZD12 ZD11 SW11 SW11 FREQUENCY IC14 SELECT 89.1MHz 17 15 13 11 CN11 IC12 88.7MHz PN11 SKT12 ZD14 REMOTE SKT12 CONTROL UNIT IC11 ZD13 SKT13...
- Page 6 SCHEMATIC DIAGRAM-1 (CONTROL SECTION)
- Page 7 WIRING-1 (FM MODULATOR SECTION) B CONTROL C.B B CONTROL C.B To A FM MODULATOR C.B SKT12 CN11 IC12 SW17 SW17 LED15 REPEAT 1 REPEAT ALL RANDOM SW16 SW16 LED14 LCD1 PLAY/PAUSE SW15 SW15 PL12 SKIP PL11,12 LCD1,SW14,SW15 IC11 PILOT LAMP SW14 SW14 PL11...
-
Page 8: Ic Block Diagram
IC BLOCK DIAGRAM IC, KS57C0301 P0.0 /CLO P0.1 /TIO P0.2 /INT1 XIN XOUT RESET BASIC TIMER I/O PORT 0 INERRUPT STACK CLOCK CONTROL POINTER BLOCK WATCH TIMER 8-BIT PROGRAM TIMER/ COUNTER COUNTER INTERNAL INTERRUPTS P2.0-P2.3 I/O PORT 2 INSTRUCTION DECODER COMPARA- PROGRAM STATUS WORD... - Page 9 IC, KIC9256P FM L 2 MODULUS 4bit SWALLOW POWER ON 1 / 2 FM IN PRESCALER COUNTER RESET RESET FM H TRI-STATE AM IN 12bit PROGRAMMABLE COUNTER BUFFER MODE LF TRI-STATE BUFFER (DO2/OT-4) REFERENCE COUNTER CIRCUIT UNLOCK 24bit REGISTER I/O-5/CLK DATA 24bit SHIFT REGISTER I/O-6...
- Page 10 IC DESCRIPTION IC, µPD753104GK-534-BA8 Pin No. Pin Name Description BIAS — LCD bias voltage VLCD0 — LCD bias voltage 0 VLCD1 — LCD bias voltage 1 VLCD2 — LCD bias voltage 2 5, 6 — Not connected. LAMP Lamp control out. —...
- Page 11 MECHNICAL EXPLODED VIEW FM MODULATOR CONN ASSY, 3P REFLECTOR SH, LCD FILTER HOUSING CONTROL C.B REFLECTOR, BUTTON BUTTON ARRAY MECHNICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION 1 S3-110-SP0-010 CASE,TOP A 87-741-072-410 SCEW TAPTILE 2.6-5 2 S3-110-SP0-110 CASE,UNDER...
-
Page 12: Mechanical Section
REFERENCE NAME LIST ELECTRICAL SECTION MECHANICAL SECTION DESCRIPTION REFERENCE NAME DESCRIPTION REFERENCE NAME ANTENNAS ADHESHIVE SHEET ADHESHIVE CHIP AZIMUTH C-CAP CAP, CHIP BAR-ANT BAR-ANTENNA C-CAP TN CAP, CHIP TANTALUM BATTERY C-COIL COIL, CHIP BATT BATTERY C-DI DIODE, CHIP BEARING C-DIODE DIODE, CHIP BUTTON C-FET...
