Installation Instructions

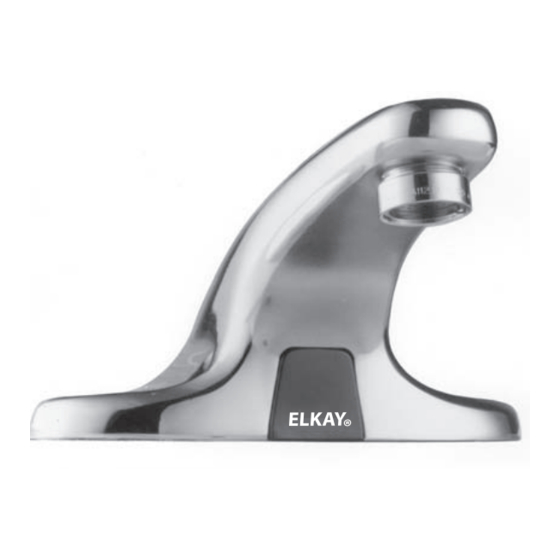

Electronic Sensor Activated Lavatory Faucet
LK737B (battery powered)
Important:
• All plumbing should be installed in accordance with applicable
codes and regulations
• Flush all water lines prior to making connections
• Keep thread sealant out of your waterway to prevent component
part damage! DO NOT use any sealant on compression fittings
Recommended Tools:
Adjustable pliers
#1 Phillips head
Drill &
13mm
drill bit
nut driver
SAVE FOR END USER
Adjustable wrench
elkayusa.com
98505C
