Mains connection

5.6.1

cool50 U40 115V

Hazard caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
• Only use machine with a plug socket that has a correctly fitted protective conductor.
• If a mains plug must be fitted, this may only be carried out by an electrician in accordance
with the relevant national provisions or regulations!
• Mains plug, socket and lead must be checked regularly by an electrician!
• When operating the generator always ensure it is earthed as stated in the operating
instructions. The resulting network has to be suitable for operating devices according to
protection class 1.
5.6.1.1

Mains configuration

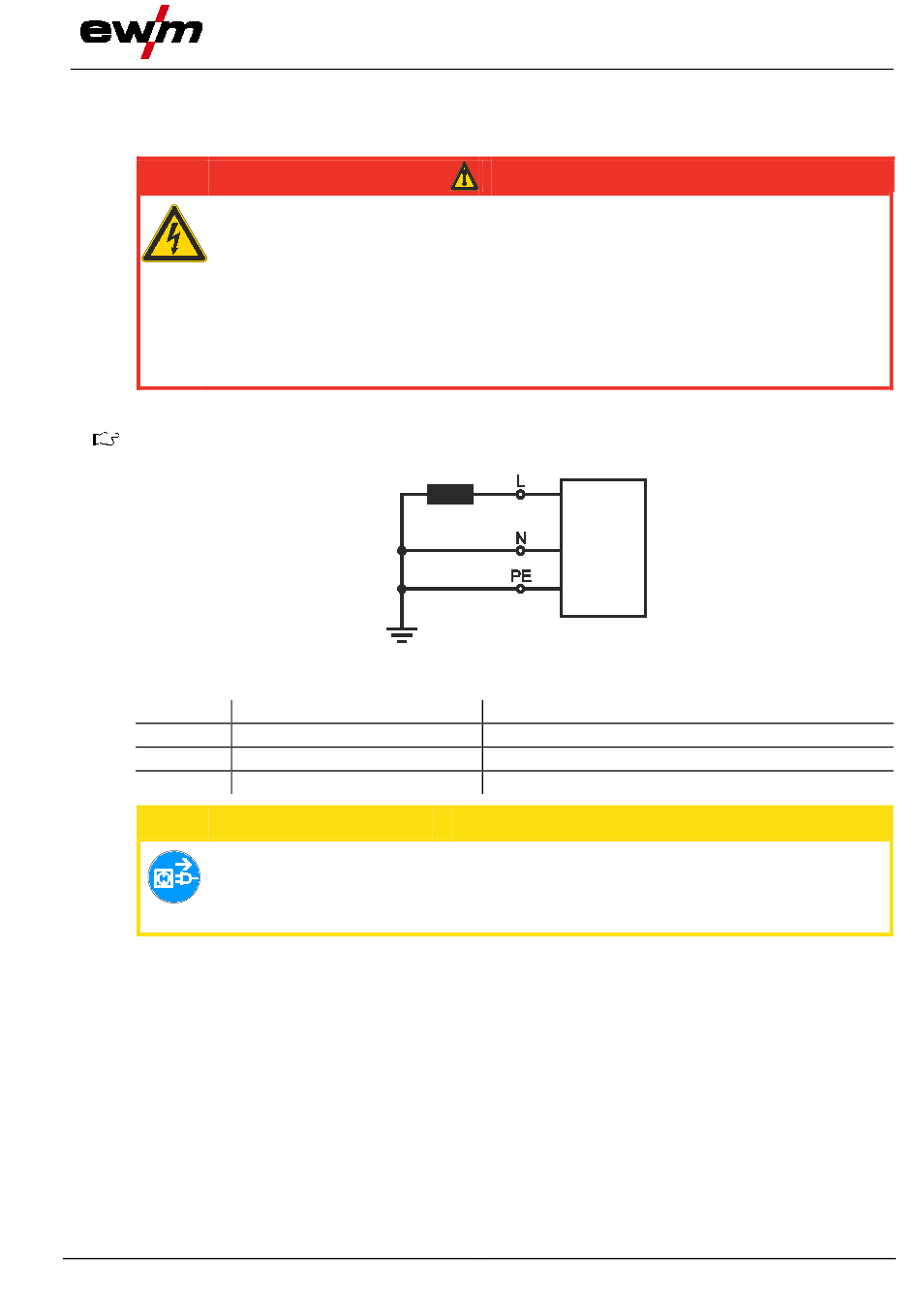

The machine may only be connected to a one-phase system with two conductors and an earthed
neutral conductor.
Legend
Item Designation
L Outer conductor
N Neutral conductor
PE Protective conductor
Operating voltage - mains voltage!
The operating voltage shown on the rating plate must be consistent with the mains
voltage, in order to avoid damage to the machine!
• > see 8 chapter!
• Insert mains plug of the switched-off machine into the appropriate socket.
