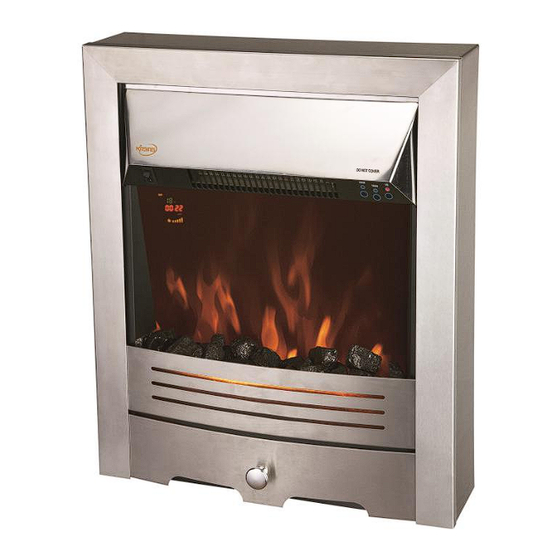

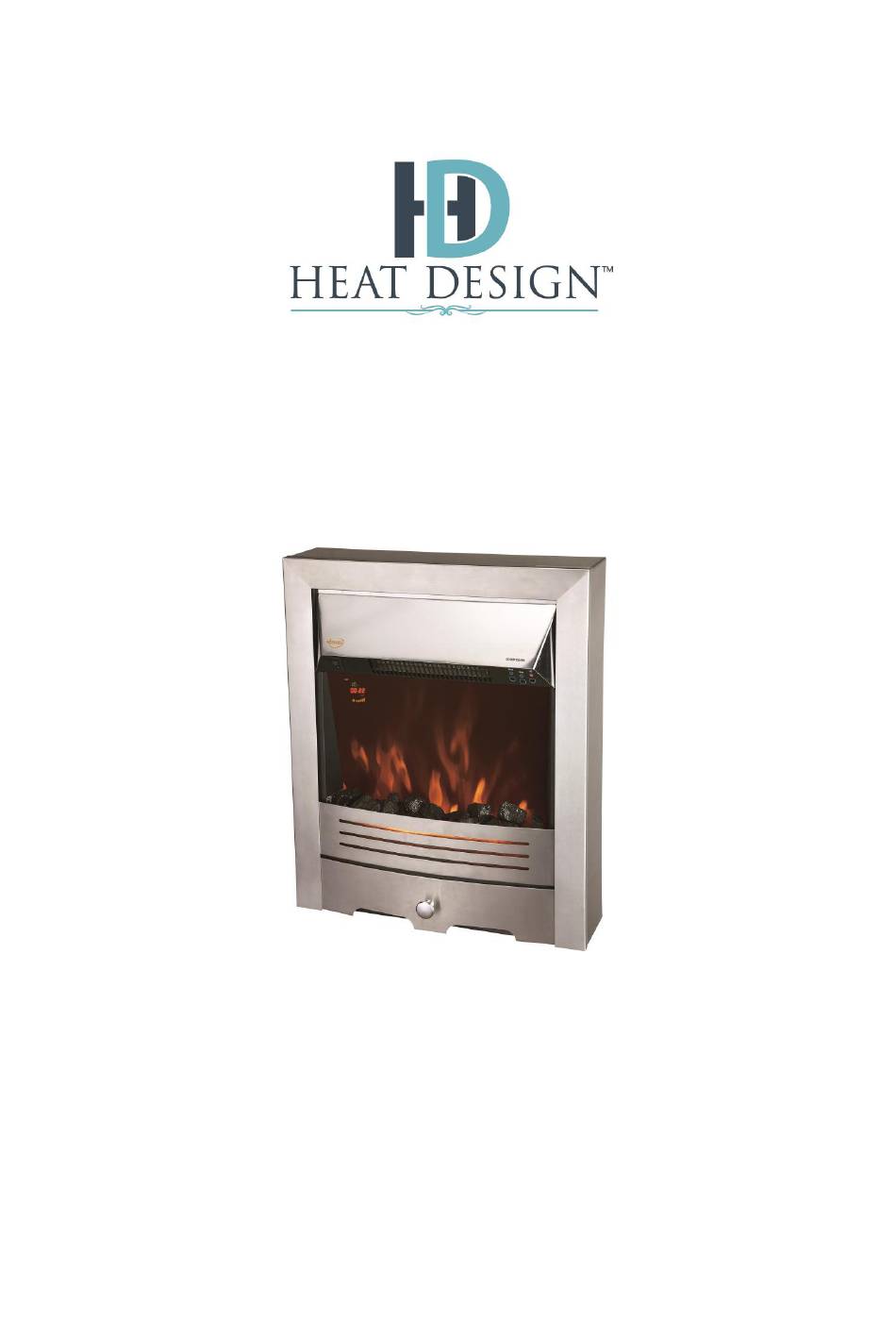

- Page 1 HDi Electric fire Suitable for 16” and 18” Fireplaces...
- Page 2 Instruction Manual Model: NDY-19ER-E This product is only suitable for well insulated spaces or occasional use. Read instructions thoroughly before use and keep for future reference. IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ!!! Please read the instructions below carefully before installation or using your Electric Heater, and retain for future reference.
- Page 3 · Never use an appliance if the supply cord is damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. · Dot use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
-
Page 4: Installation Requirements
[no] with black bulb sensor [no] Contact details Heat Design, Unit 60 Hawthorn Road, Western Industrial Est, Naas Road, Dublin 12 Installation Requirements The Electric heater is supplied with approximately 1.7 meters of flexible mains cable (1mm .The appliance and ·... - Page 5 The heater is suitable for installation into a location that has an opening size within the guidelines shown below: Width Minimum 15 1/2”/390mm Maximum 19”/483mm Height Minimum 21 3/4”/555mm Maximum 23 1/4”/590mm Depth Minimum 4 1/4”/110mm Maximum 5”/125mm The installation size as below indicated. ·...
- Page 6 The fire displays standby symbol and timer symbol (No timer symbol if no timing setting or the button on remote control at OFF position) Switch on status · The fire displays date/time, room temperature and flame brightness level. Please set the actual date/time by the end user when first use.
- Page 7 · Press once the 2000W button for the high heat settings, a red indicator light will appear to indicate the function; press twice to switch off the heat setting. · Press the DIMMER button for operate the dimmer mode. There are 5 levels flame brightness available. ·...
- Page 8 · Press the ON/OFF button once on the remote control this turns ON/OFF the fire and flame effect. · Press the "1000W" button once to turn the low-level heating 1000W on and press twice to stop heating. · Press the "2000W" button once to turn the high-level heating 2000W on and press twice to stop heating.
- Page 9 · Press the "+" or "-" button to check the Timer ON times one by one. · For checking the Timer OFF times, press the "▲" button · Press the "+" or "-" button to continue viewing · For deleting the current item of timer setting, press "C" button to delete ·...
- Page 10 Maintenance · Warning: Before any maintenance and/or cleaning the exterior of the fireplace, disconnect the unit form the power supply and leave until cooled off. · Remote control battery replacement: this remote control uses 2x1.5V AAA battery. Make sure the batteries are installed correctly in the remote control.
- Page 11 When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Heat Design, 30-60 Hawthorn Road, Western Industrial Estate, Naas Road, Dublin 12. T: 01 408 9192 F: 01 408 9193...
