Installation Procedures

WARNING: Do NOT connect inverters until you have completed all
of the installation procedures as described in the following sections.

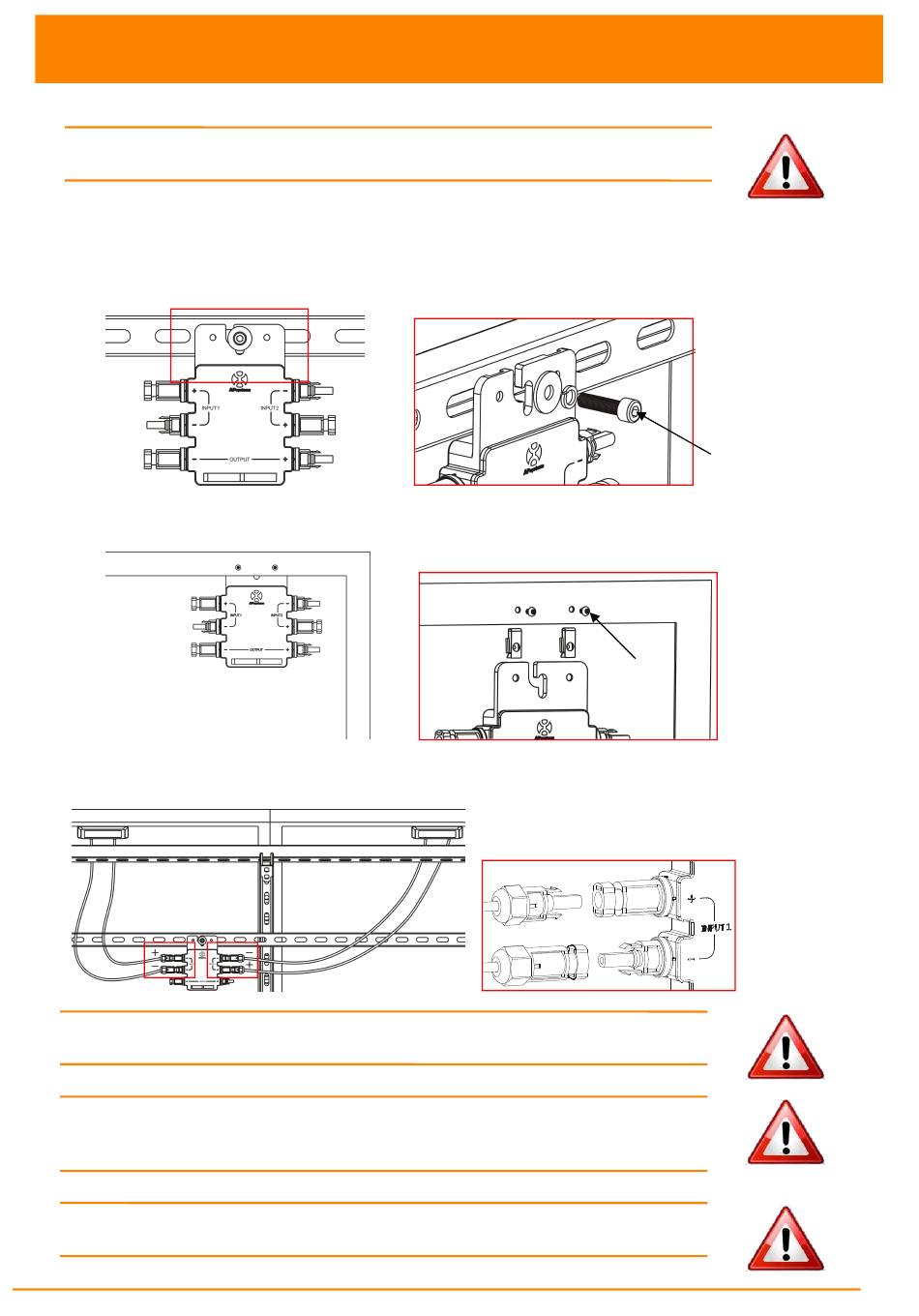

Step 1 - Attaching the APsystems Optimizer to the
Racking or the PV Module Frame
a) Attaching to the Racking.
b) Attaching to the PV Module Frame.

Step 2 - Connecting the APsystems Optimizer to the PV Module

WARNING: Connect the PV module to the optimizer INPUT1
interface when the optimizer connects with one solar module.
WARNING: The output connect to the inverter, the input connect to
PV module after attaching the APsystems optimizer to the racking or
the PV module frame.
WARNING: Electrical Installation & Maintenance shall be conducted by
licensed electrician and shall comply with Australia National Wiring Rules.
M4
OPT700/OPT700L Installation/User Manual
M8
Figure 2
Figure 3
Figure 4
8
