L8542619
Rev. 07/00/02
Libro istruzioni
Operating instructions
Betriebsanleitung
Livret d'instructions
Libro de instrucciones
AUTOMATISMI PER CANCELLI
CENTRALINA A MICROPROCESSORE PER
CONTROL UNIT WITH MICROCONTROLLER FOR
MIKROCONTROLLER-STEUERUNG FÜR
CENTRALE A MICROCONTRÔLEUR POUR
CENTRALITA A MICROPROCESADOR POR
AU.TRL
AU.TR
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE,
SERRANDE ED AFFINI
®
UNI
EN ISO
9001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beninca AU.TR
Summary of Contents for Beninca AU.TR

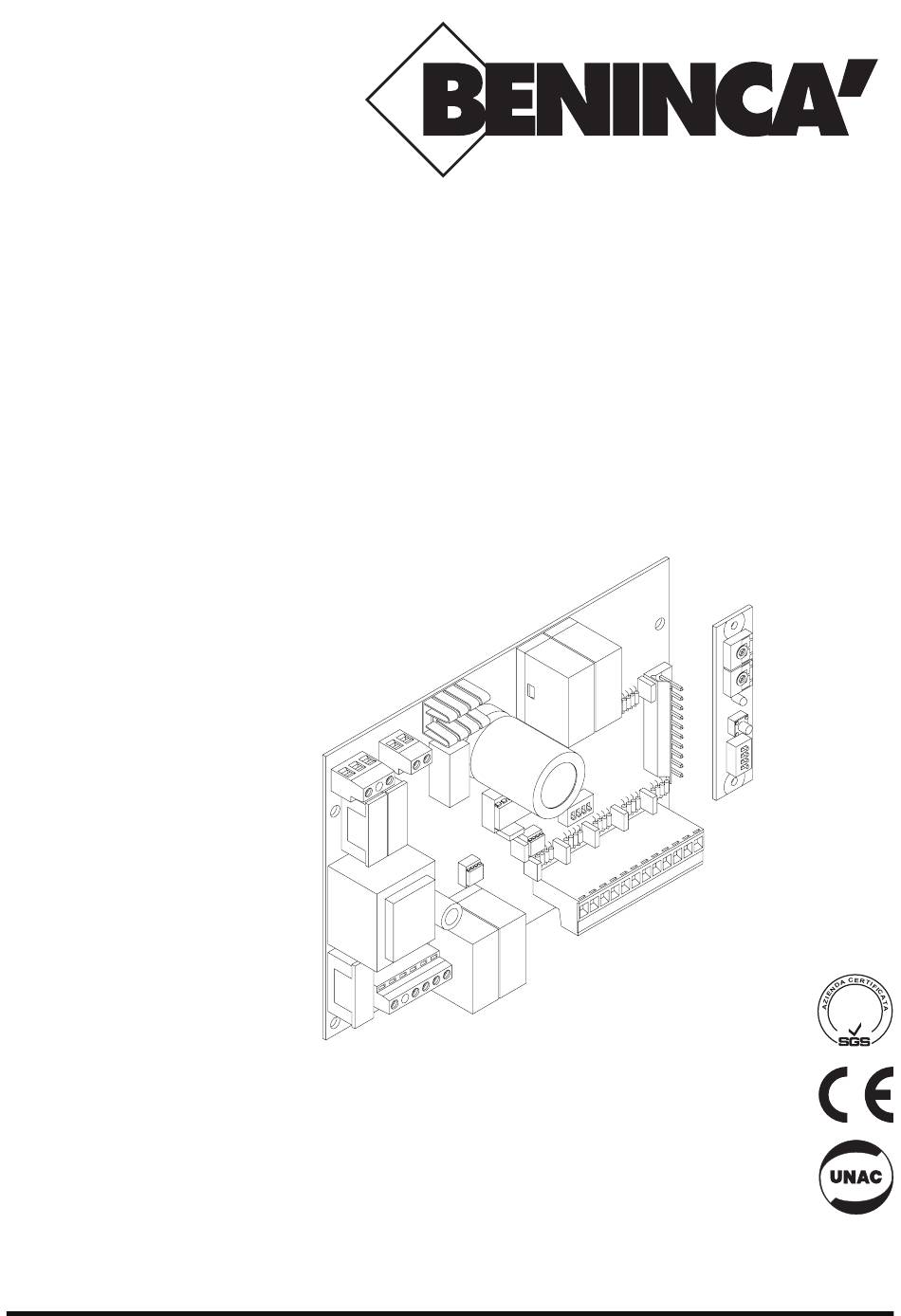

- Page 1 Rev. 07/00/02 ® AUTOMATISMI PER CANCELLI CENTRALINA A MICROPROCESSORE PER CONTROL UNIT WITH MICROCONTROLLER FOR MIKROCONTROLLER-STEUERUNG FÜR CENTRALE A MICROCONTRÔLEUR POUR CENTRALITA A MICROPROCESADOR POR AU.TR AU.TRL EN ISO 9001 Libro istruzioni Operating instructions Betriebsanleitung Livret d’instructions UNIONE NAZIONALE COSTRUTTORI...
- Page 2 We hereby declare that our product Hiermit erklaren wir, dass unser Produkt Nous déclarons par la présente que notre produit Por la presente declaramos que nuestro producto AU.TR è conforme alle seguenti disposizioni pertinenti: complies with the following relevant provisions: folgenden einschlagigen Bestimmungen entspricht:...
- Page 3 Led MCU Led MCU Led MCU Led MCU Fase Led MCU Phase Phase Phase Al primario del trasformatore 230Vac Fase To the primary of the transformer 230Vac Zum primären Stromkreis des Trafos 230Vac Linea 230Vac Vers le primaire du transformateur 230Vc.a. 230Vac line Al primario del transformador 230Vac Leitung 230Vac...

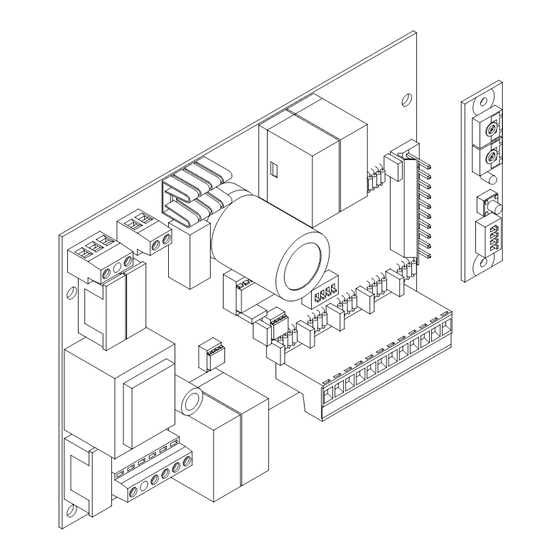

- Page 4 Control unit with microcontroller for AU.TR The microprocessor control unit “AU.TR” can be used to control 24Vdc motors, with a power not higher than 80W. Inputs/Outputs - table 1 (1,2) Input 230VAC= Power supply of control unit, 230VAC - 50Hz (phase= term.1, neutral= term.2) (3,4) Output, flashing light= To the flashing light.
- Page 5 Table 5 Function - part 1 Selectable values - part 2 End of programming End of the programming phase and storage of changes in Dip-switch 1÷4= Off/Off/Off/Off memory. Menu 1 Dip-switch1= operation of courtesy light Dip-switch 1÷4= On/Off/Off/Off Off: normal (default) On: flashing Dip-switch2= reduction of closing time after passing the photocell.
- Page 6 Table 5 Continued ... Function - part 1 Continued ... Selectable values - part 2 Sensitivity to speed changes It presets the intervention threshold if the motor speed is during the normal stroke. reduced. Dip-switch 1÷4= On/Off/On/Off Dsw1 Dsw2 % Changes in the clos. phase (Default= 25%).
- Page 7 ® AUTOMATISMI PER CANCELLI AUTOMATISMI BENINCÀ Srl - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
