Installation/Care/Use Manual
Soft Sides
Installer
To assure you install this model easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After installation, leave
these instructions inside the fountain for future reference.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK
INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN
INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER
SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM.
3/8" O.D. UNPLATED
1/4" O.D. TUBE
COPPER TUBE CONNECT
WATER INLET
COLD WATER SUPPLY
TO COOLER
NOTE: WATER FLOW
DIRECTION

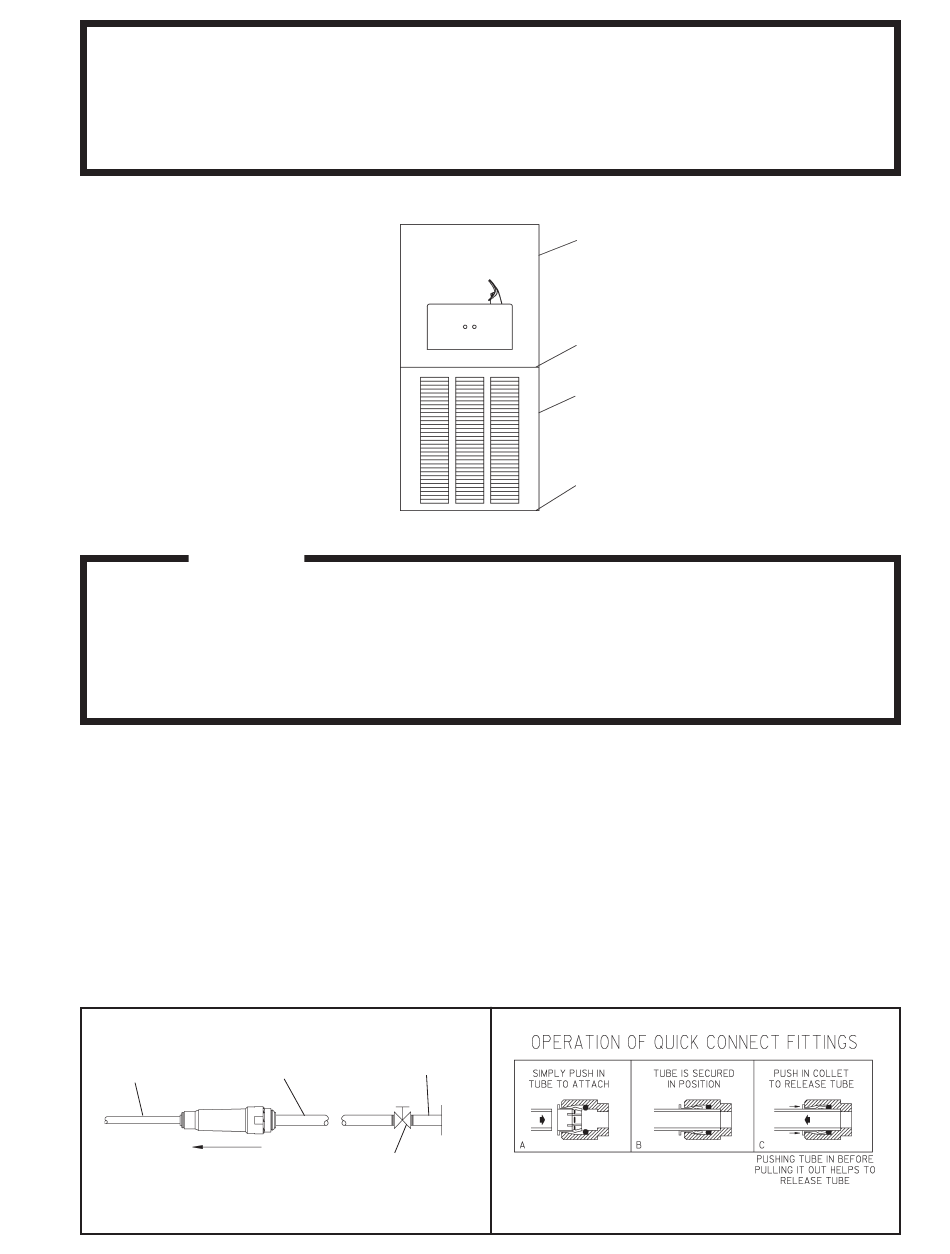

FIG. 1
ERO8C*C
™
Refrigerated Fountain with FLEXI-GUARD
IMPORTANT
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
12
SEE FIG. 4
31
14
31
FIG. 2
®
97873C (Rev. F - 7/09)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elkay Soft Sides ERO8C C Series
Summary of Contents for Elkay Soft Sides ERO8C C Series
- Page 1 ERO8C*C Installation/Care/Use Manual ™ ® Soft Sides Refrigerated Fountain with FLEXI-GUARD SEE FIG. 4 Installer To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After installation, leave these instructions inside the fountain for future reference.
- Page 2 ERO8C*C ERO8C ROUGH-IN LEGEND A = 1/4" O.D. TUBE CONNECT (CHILLER WATER OUTLET) B = 3/8" O.D. TUBE CONNECT (CHILLER WATER INLET) SHUT OFF VALVE BY OTHERS C = 1-1/4" TRAP FURNISHED D = ELECTRICAL INLET FIG. 3 97873C (Rev. F - 7/09) PAGE 2...
-
Page 3: Installation Instructions
ERO8C*C INSTALLATION INSTRUCTIONS 1. Install mounting frame. See mounting frame instructions. 2. Install remote chiller. Remove front panel of chiller. Slide chiller onto the shelf and position it to the left within the guides on the shelf. 3. Attach solenoid valve assy to the underside of cross member of mounting frame. See Figure 7. 4. - Page 4 FIG. 8 FIG. 7 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 97873C (Rev. F - 7/09) PAGE 4...
