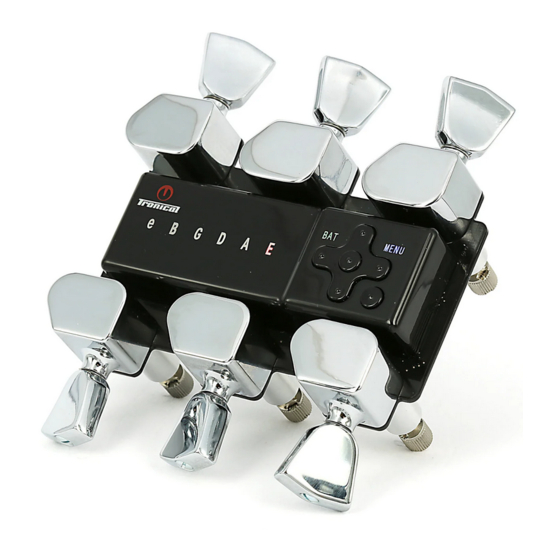

- Page 2 You play - we tune! TronicalTune PACKAGE CONTENT ROBOHEAD CONTACTING PCB LiPo BATTERY CHARGER INCL. WALL-PLUG LOCK NUT & RING WASHER WRENCH...
-
Page 3: Table Of Contents
ADVANCED FUNCTIONS TronicalTune OVERVIEW ...................... -
Page 4: Getting Started Insert Battery
Getting started Insert Battery MENU MENU MENU ATTENTION: BE CAREFUL INSERTING THE BATTERY. PAY ATTENTION TO THE SLOT- TED DESIGN TO GUARANTEE PROPER ORIENTATION. SLIDE IN THE BATTERY WITH THE TIP SIDE ONLY. DO NOT APPLY ANY FORCE AS YOU MAY CAUSE DAMAGE TO MENU THE ELECTRONICS. -
Page 5: Charge Battery
ATTENTION: Be careful inserting the CHARGING: Getting started battery. Pay attention to the slotted design Charge the battery if to guarantee proper orientation. Slide in BAT led switches red. the battery with the tip side only. Replace Battery BATTERY PACK 3.7v 340mah 1258mwh Li-polymer Do not apply any force as you may cause damage to the electronics. -
Page 6: Install The System On The Guitar
Use caution when inserting the battery. Pay attention to the slotted design to guarantee proper orientation! Now TronicalTune is ready for string up. Use the wrench that comes with the set to tighten the Hex Nuts of the RoboHeads. -
Page 7: String Guitar
Getting started NOTE: do not use any tools on the Lock Nut and do not over tighten. Instead use a 1 CENT COIN to tighten the locknut, otherwise you may damage the ROBOHEAD by applying too much force. String your guitar Use only supplied wrench or torque wrench to tighten the Hex Nuts (the recommended torque for the Hex Nuts of the RoboHeads is 1.5 Nm - 1.65 Nm (13.27 in.lbs - 14.6 in-lbs)) - Page 8 Hold the string tight and apply the Lock Nut. shaft once above the recess. NOTE: TronicalTune systems Type C (six-in-a-row tuner headstocks) do work with “bass” Cut the end of the string close to the string shaft. Done! RoboHeads only.
-
Page 9: Treble Strings
Tighten the Lock Nut with a small Getting started coin easily by hand. NOTE: Do not use any tool to fix String up your guitar (treble strings) the Lock Nut and DO NOT OVER TIGHTEN! Use a 1 CENT COIN to tighten the Lock Nut, otherwise you may damage the RoboHead! Take off the Lock Nut and make sure that the... -
Page 10: Basic Functions
OUT OF SNAP string up/string down function works better. HERE’S THE REALLY GREAT PART!!! CALCULATING PLAY IN A DIFFERENT TUNING • Don’t tune manually while TronicalTune is active. • Press the ON button twice. INTERFERENCE • Press UP/DOWN to navigate through tuning •... -
Page 11: Default Tunings
RED MAIN TUNING PRESET BANK STRING Standard DADGAD Whole step Drop D E flat Double drop D GREEN MAIN TUNING PRESET BANK STRING Open E Open A Open D Open G Dobro All 4ths BLUE MAIN TUNING PRESET BANK STRING Main Tuning Preset Bank Default Tunings... - Page 12 (Low Tuning Preset Banks) WHITE STRING C tuning Low C C sharp B tuning Dropped C Dropped B (Low Tuning Preset Banks) YELLOW STRING Open C Open C6 Open B Double drop C Double drop C Double drop B MAGENTA USER TUNING PRESET BANK STRING Low Tuning Preset Bank...
-
Page 13: Advanced Functions
TronicalTune OFF. performance if necessary. Here’s an overview of how to choose, access, and edit the advanced • If TronicalTune is in a FUNCTION, press the ON tuning functions. (Back) button to return to the function’s CATEGORY. • Press the BACK button again, and TronicalTune is... -
Page 14: Tuning Functions
When a string LED flashes BLUE , use the LEFT/ Reference Tuning • When TronicalTune is switched off, press ON RIGHT buttons to select a preset slot from the Firmware Version White Category three times. Then press ENTER twice. BLUE bank. -
Page 15: Reference Tuning
• string flashes . Use the LEFT/RIGHT • When TronicalTune is switched off, press ON • This is a fast sequence. If you need to see it three times. Press ENTER. Tune the guitar with respect to one maually tuned string as button to select the string you tuned as reference again, press ENTER AGAIN. -
Page 16: Reset Function
RESTORE FACTORY DEFAULT TUNING PRESETS FOR THE SELECTED TUNING PRESET BANK Reset Function Reset GREEN Tuning preset bank Reset BLUE Tuning preset bank 1. When TronicalTune is switched off, press ON three times. G Reset WHITE Tuning preset bank 2. Press the LEFT/RIGHT button to select RED e string LED. -
Page 17: Calibration Mode
MENU ENTER Before calibration tune the guitar to standard pitch! (red tuning bank LED). LEFT / RIGHT 1. When TronicalTune is switched off, press the CALIBRATION: ON /BACK ON button. LEFT/RIGHT 1. Press ON three times. Press the button to select CYAN A 2. -
Page 18: Accuracy
Slow down the ROBOHEAD speed to accommodate guitars Balance tuning accuracy vs. speed whose neck relief or neck stability degrades tuning accuracy. 1. When TronicalTune is switched off, press ON Cyan Category 1. When Tronicaltune is switched off, press ON three times. -
Page 19: Gain
GUITAR TYPE CATEGORY FUNCTIONS Advanced Software Functions Set up TronicalTune for electric or acoustic guitar Gain 1. When TronicalTune is switched off, press ON Yellow Category Guitar Type LEFT/RIGHT three times. Press the button to select Pitch Window YELLOW D . -
Page 20: Activate Low Tunings
The WHITE and YELLOW banks default to write-protected presets for music with 1. When TronicalTune is switched off, press ON low tunings (heavier gauge strings are necessary three times. Press the LEFT/RIGHT button to select for low tunings). - Page 21 Use LEFT/RIGHT button to select a subcategory ( ). Press ENTER. • If an offset already exists, TronicalTune displays the offset amount as described above. In this case RIGHT or LEFT button presses continue on from the existing offset. Example: If 12 MAGENTA...
-
Page 22: Unblock Banks For Custom Tunings
CATEGORY FUNCTIONS 1. When TronicalTune is switched off, press ON Unblock Banks for Custom Tunings three times. Press the LEFT/RIGHT button to select BLUE B Bank Activation Blue Category GREEN Bank Activation 2. Press ENTER. The LEFT/RIGHT button selects BLUE... -
Page 23: Capo Mode
Adding a capo often requires retuning a guitar. NOTE: Whenever you tune in capo mode TronicalTune can detect a capo in the range of the TronicalTune first indicates capo location by the 1st to 6th fret, then tune while taking the capo number of lit YELLOW LEDs. -
Page 24: Legal Information
The battery in your Tronical Tune must be DO NOT expose your product to extreme high or environment and human health. Recycling will help choking hazard. - Page 25 Tronical Components GmbH • Heselstuecken 18 • 22453 Hamburg • Germany info@tronical.com • www.tronical.com © Copyright 2014 Tronical-Components GmbH All rights reserved.
