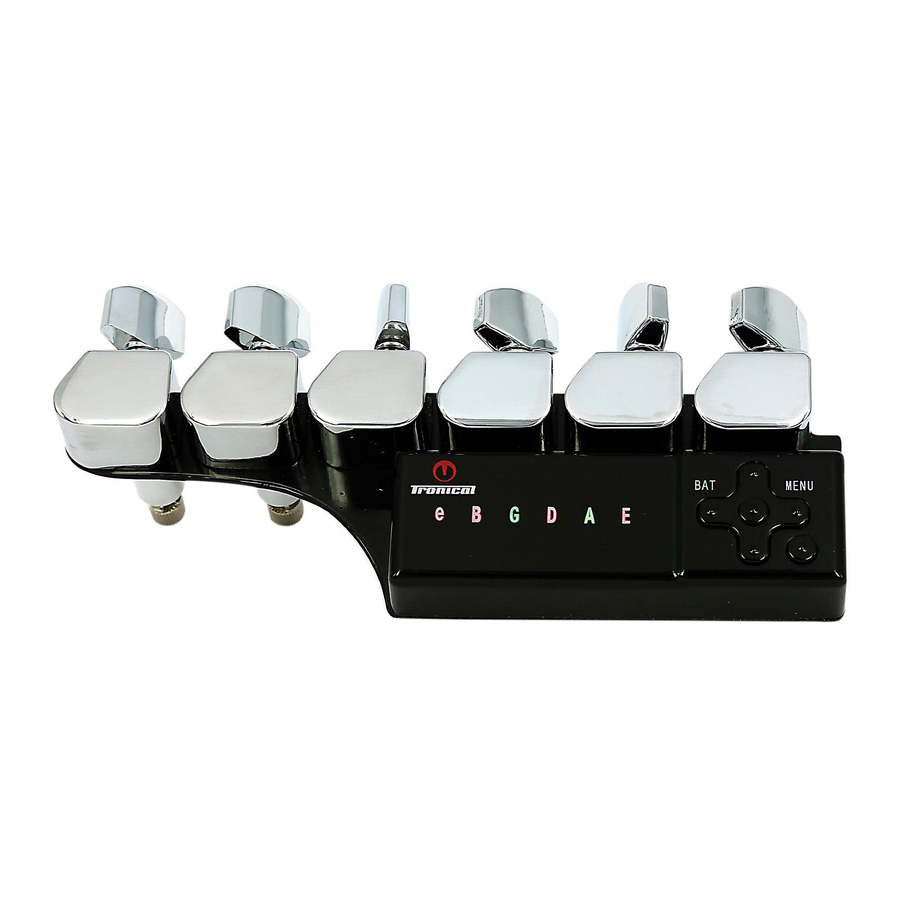

Tronical TronicalTune 6 in line Manual

SCOPE OF DELIVERY

6 x ROBO-HEADS

1 x CONTACTING PCB

1 x LiPo BATTERY

1 x CHARGER INCL. WALL-PLUG

7 x LOCK NUTS & RING WASHERS

1 x WRENCH

1 x QUICK START GUIDE

PREPARATION

AT FIRST REMOVE ALL ORIGINAL HEADSTOCK- PARTS OF YOUR GUITAR.

INSTALLATION

PLACE THE CONTAC TING PCB ON THE NECK OF THE GUITAR, THE BATTERY COMPARTMENT HAS TO FACE TOWARDS THE TOP OF THE HEAD- STOCK.

MAKE SURE THAT ALL PCB DRILL HOLES ARE IN ALIGNMENT WITH THE NECK´S TUNER HOLES. PUT THE ROBOHEAD-PINS THROUGH THE RESPECTIVE HOLES.

MOUNT THE RING WASHERS & HEX-NUTS. TIGHTEN THE HEX NUTS ALL THE WAY DOWN BY HAND.

NOTE: DO NOT USE ANY TOOLS TO FIX THE LOCK NUT USE A 1 CENT COIN TO TIGHTEN IT, OTHERWISE YOU MAY DAMAGE THE GEAR WHEELS!

USE ONLY SUPPLIED WRENCH TO TIGHTEN THE HEX NUT.

NOW MOVE THE UNIT SLIGHTLY BACK & FORTH TO FIND THE SWEET SPOT, THEN FIX THE LOCK NUTS CROSSWISE WITH THE SUPPLIED WRENCH (APPROX. 1.5-1.8 Nm).

THE STICKER HAS TO FACE UPWARDS. THE LOCKING SHAPE HAS TO BE INSERTED INTO THE ELECTRONIC BOX UNTIL IT ENGAGES (CLICK). DO NOT APPLY ANY FORCE TO INSERT!

READY TO STRING UP

NOW TRONICALTUNE IS READY TO STRING UP YOUR GUITAR. PLEASE DOWNLOAD THE MANUAL AND FOLLOW THE INSTRUCTIONS.
