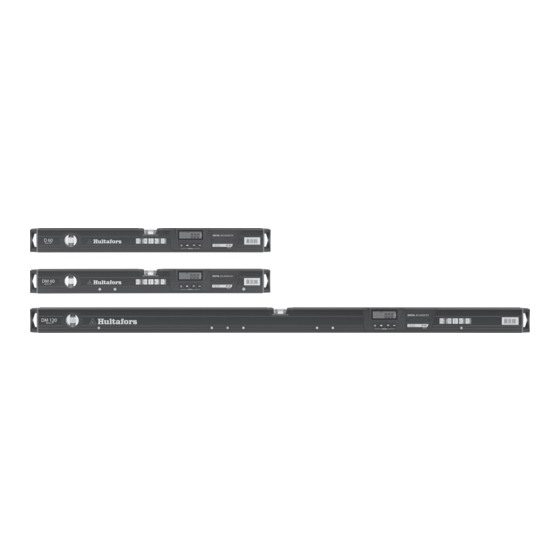

- Page 1 D 60 DM 60 DM 120 Operating instructions...
- Page 2 SCOPE OF DELIVERY FOR D 60, DM 60, DM 120: 1. D 60, DM 60, DM 120 2. AAA batteries 3. Quick start guide...
-
Page 3: Table Of Contents
Operating manual D 60, DM 60, DM 120 About this manual Contents 1. General information To utilize the complete functionality range of this 2. Description measurement instrument, and to ensure safe 3. Technical data operation, 4. Safety instructions please observe the following instructions: 5. -
Page 4: General Information
1. General information 1.1 Signal words and their meaning 1.2.2 SYMBOLE DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING Batteries and devices must not be For a possibly dangerous situation that could disposed of with household waste lead to serious injury or death. -
Page 5: Description
2. Description 2.1 Device components, display and operating elements 2.1.1 D 60, DM 60, DM 120 1. Acrylic glass block vials 2. Gradient module 3. Gradient module battery compartment 2.1.3 GRADIENT MODULE 1. On/off switch / Display light 2. On/off switch acoustics (signal at 0° and 90°) 3. -
Page 6: Technical Data
3. Technical data 3.1 Gradient module Max. measurement tolerance - 0° / 90° ± 0.05° - 1° - 89° ± 0.10° Protection class IP 65 Power supply 3 x 1.5 V AAA batteries Battery life (at 20°C) 30 hrs (if display light switched off, approx. 80 hrs) Permissible temperatures Operating temperature -10°C to +50°C... -
Page 7: Safety Instructions
4.3 Utilization limitations protection laws and regulations. The D 60, DM 60, DM 120 is suitable for a • The operator shall immediately notify Hultafors continuous use in an atmosphere which can be if safety-related issues should develop on the inhabited by humans. - Page 8 Missing or incomplete instructions may • Repairs have to be exclusively performed by result in improper or incorrect use. Hultafors. This can cause accidents with serious damages to persons, property, assets WARNING and the environment.
- Page 9 Batteries / rechargeable batteries may accessories. explode if they are damaged or heated excessively, and thereby cause poisoning, 4.5.2 INTERFERENCE OF THE D 60, DM 60, burning, corrosion or environmental DM 120 BY OTHER DEVICES contamination. If disposed of negligently...
-
Page 10: Startup
5. Start-up Prior to initial set-up, check whether the batteries have been installed correctly in the device. Inserting batteries 1. Open the battery compartment cover with an appropriate screwdriver. 2. Insert batteries making sure that the poles of the batteries are in the right position. 3. -
Page 11: Operation
6. Operation 6.1. Switching on/off 6.5 Hold function The current measurement is frozen by pressing the “Hold function“ once. • Press the “On/off switch / Display light“ to A previously measured value can be “frozen“ on switch on the gradient module. the display using this function. -
Page 12: Calibration And Adjustment
7. Calibration and adjustment 7.1 Calibration of gradient module Calibration stage based on position 0° • Place the DM with the measurement surface horizontally • Press the buttons briefly • Display -1- appears on the screen • Press the button briefly, display -1- flashes for approx. - Page 13 Calibration stage based on position 90° • Place the DM with the measurement surface vertically • Press the buttons briefly • Display -1- appears on the screen button briefly, display -1- flashes • Press the for approx. 5 seconds • Display -2- appears on the screen •...
-
Page 14: Maintenance, Storage And Transportation
8. Maintenance, storage and transportation 8.1 Cleaning • After storage, fully charge the battery before use. • Check the battery for damage before use. • Wipe off any dirt with a soft damp cloth. Do not use damaged batteries! • Do not use aggressive cleaning agents or solvents. -
Page 15: Scope Of Delivery And Accessories
9. Scope of delivery and accessories 9.1 Scope of delivery for D 60, DM 60, DM 120: D 60, DM 60, DM 120 AAA batteries Quick Starter Further information regarding the accessories can be found at www.hultafors.com... -
Page 16: Troubleshooting
10. Troubleshooting Error Possible cause Rectification Device is switched on, • Battery flat • Replace battery no display, screen not • Battery inserted incorrectly • Insert battery correctly illuminated • Device or switch faulty • Contact dealer and have device repaired Display jumps or screen •... -
Page 17: Disposal
• Dispose of the device and the accessories properly • Only dispose of batteries in a discharged state. • Observe the country-specific disposal requirements. Your Hultafors dealership will take back batteries as well as old equipment, and will ensure proper disposal. - Page 18 12. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over. The guarantee is limited to repairs and / or replacements at the manufacturer‘s discretion.
-
Page 19: Ec Conformity Declaration
13. EC conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) D 60, DM 60, DM 120 to which this declarations relates is in conformity with the following standards.
