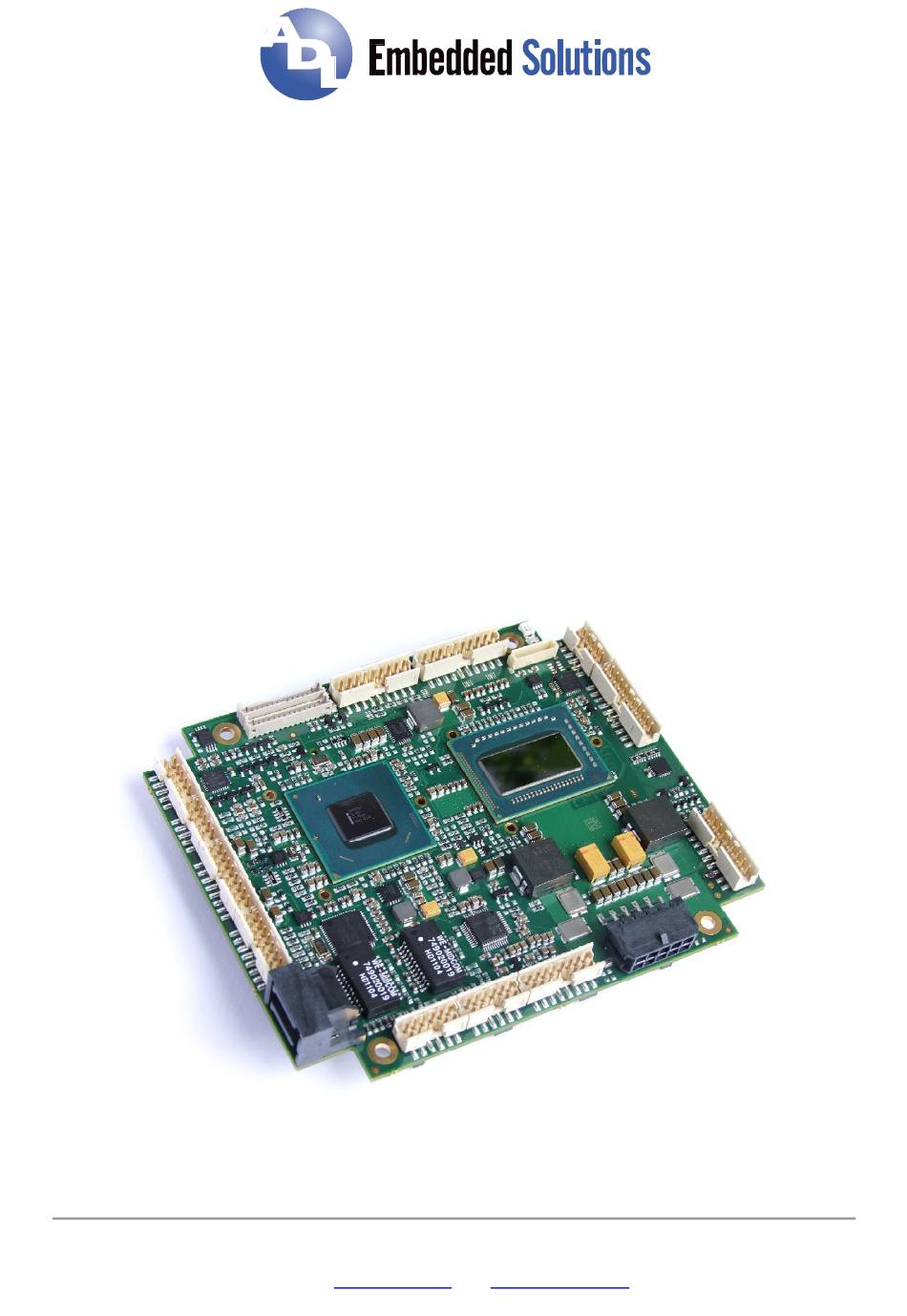

- Page 1 ADLQM67PC Manual rev. 1.0 ADL Embedded Solutions Inc. 4411 Morena Blvd., Suite 101 San Diego, CA 92117-4345 P. +1 858 490-0597 F. +1 858 490-0599 e-mail: sales@adl-usa.com; web: http://www.adl-usa.com...
-
Page 3: Table Of Contents
Power Controller Options ....................45 5.3.6 USB Configuration ....................... 46 5.3.7 Super IO Configuration ......................47 5.3.8 H/W Monitor ........................49 5.3.9 Serial Port Console Redirection ..................51 5.3.10 CPU PPM Configuration...................... 53 Chipset ............................54 ADL Embedded Solutions ADLQM67PC page 3... - Page 4 Environmental Conditions ......................79 Thermal Specifications ........................ 80 Anhang: Post-Codes .......................... 81 Annex: Resources ..........................82 IO Range ..............................82 Memory Range ............................82 Interrupt ..............................82 PCI Devices ............................83 SMB Devices ............................83 page 4 ADL Embedded Solutions ADLQM67PC...
-
Page 5: Document History
All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. ADL Embedded Solutions ADLQM67PC page 5... -
Page 6: Introduction
Via our website at www.adl-usa.com/support or www.adl-europe.com/support 1.3 Warranty This product is warranted to be free of defects in workmanship and material. ADL Embedded Solutions' sole obligation under this warranty is to provide replacement parts or repair services at no charge, except shipping cost. -
Page 7: Description Of Safety Symbols
OTE OR POINTER This symbol indicates information that contributes to better understanding. 1.6 RoHS The PCB and all components are RoHS compliant (RoHS = Restriction of Hazardous Substances Directive). The soldering process is lead free. ADL Embedded Solutions ADLQM67PC page 7... -
Page 8: Overview
Features 2 Overview 2.1 Features The ADLQM67PC is a highly complex computer motherboard in the PC/104™ form factor, complying with the state-of-the-art "PCIe/104™" standard. It's based on Intel® CPUs of the 2 Generation Core™ and Celeron® families (BGA, embedded) combined with the QM67 PCH. Modern DDR3 technology provides top-notch memory performance, accomodating up to 4 GByte of RAM (DDR3-1066/1333/1600) via SO-DIMM204. - Page 9 HDA compatible sound controller with SPDIF in and out RTC with external CMOS battery PCI-Express bus via PCI/104-Express connector (type 1, one x16, four x1 lanes) 16x GPIO 5V and 12V supply voltage Size: 96 mm x 90 (115.5) mm ADL Embedded Solutions ADLQM67PC page 9...
-
Page 10: Specifications And Documents
2nd Generation Core™ Processor Family Datasheet www.intel.com § SMSC® Chip Description SCH3114 Datasheet www.smsc.com (NDA required) § Intel® Chip Description 82574L Datasheet www.intel.com § Intel® Chip Description 82579L Datasheet www.intel.com § Realtek® Chip Description ALC885/889 Datasheet www.realtek.com.tw page 10 ADL Embedded Solutions ADLQM67PC... - Page 11 Specifications and Documents Chapter: Overview § Chrontel® Chip Description Chrontel 7318C Datasheet www.chrontel.com § American Megatrends® Aptio™ Text Setup Environment (TSE) User Manual www.ami.com § American Megatrends® Aptio™ 4.x Status Codes www.ami.com ADL Embedded Solutions ADLQM67PC page 11...
-
Page 12: Connectors
Chapter: Connectors Specifications and Documents 3 Connectors This section describes all the connectors found on the ADLQM67PC. AUTION For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. -
Page 13: Connector Map
22 P1400 "System/SM-Bus" p. 15 P1401 "VGA" p. 23 P1402 "Power Supply" p. 14 P1403 "Monitoring Functions" p. 32 P1404 "GPIO" p. 31 * not in the picture above (cf. bottom side of board) ADL Embedded Solutions ADLQM67PC page 13... -
Page 14: Power Supply
AUTION The ADLQM67PC includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector. When PS_ON# is no longer pulled low, an intelligent power supply would take this as a signal to shut down power. -
Page 15: System/Sm-Bus
MDAT MCLK mouse clock battery BATT 5 volt supply power supply on PS-ON# SMBCLK SMB clock standby supply 3.3V S3.3V SMBDAT SMB data power button PWRBTN# SMBALERT# SMB alert ground 3.3V 3.3 volt supply ADL Embedded Solutions ADLQM67PC page 15... -
Page 16: Memory
16 DQ16 DQ20 data 20 data 17 DQ17 DQ21 data 21 ground ground data strobe 2 - DQS2# data mask 2 data strobe 2 + DQS2 ground ground DQ22 data 22 page 16 ADL Embedded Solutions ADLQM67PC... - Page 17 45 data 41 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ADL Embedded Solutions ADLQM67PC page 17...
- Page 18 58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current page 18 ADL Embedded Solutions ADLQM67PC...
-
Page 19: Pci/104-Express Bus
PWRGOOD powergood SMBus data SMBDAT PECLKx16 clock x16 slot + SMBus clock SMBCLK PECLKx16# clock x16 slot - SMBus alert SMBALERT 51 PSON# PSU on link reactivation PEWAKE# PEGENA# PCIe graphics enable ground ground ADL Embedded Solutions ADLQM67PC page 19... - Page 20 15 + PE16R15 PE16R7 x16 receive lane 7 + x16 receive lane 15 - PE16R15# PE16R7# x16 receive lane 7 - ground ground 5 volt supply 5 volt supply 12 volt supply page 20 ADL Embedded Solutions ADLQM67PC...
-
Page 21: Dvi/Hdmi
DVI/HDMI Chapter: Connectors 3.6 DVI/HDMI The ADLQM67PC provides a DVI/HDMI interface which is realized as a 2x9pin header (FCI 98424-G52-18LF, mating connector e.g. FCI 90311-018LF). Pinout 2x9pin connector DVI/HDMI: Description Name Name Description HDMI panel detected HPD_SINK reserved SMBus clock (DDC) -
Page 22: Displayport
DisplayPort 3.7 DisplayPort The ADLQM67PC offers a DisplayPort interface which is realized as 2x10pin connector (FCI 98424-G52-20LF, mating connector e.g. FCI 90311-020LF). This interface can also be operated in HDMI/DVI mode. To achieve this, pin 11 must be connected to 3.3V (e.g. pin 3). -
Page 23: Vga
This interface allows the connection of a standard VGA-monitor. I2C communication is supported. Description Name Name Description analog red ground analog green GREEN DDDA DD data analog blue BLUE DDCK DD clock vertikal sync VSYNC ground horizontal sync HSYNC ground ADL Embedded Solutions ADLQM67PC page 23... -
Page 24: Lcd
DF13-15S-xxx). The power supply for the display is also provided through these connectors. The ADLQM67PC board only supports displays with LVDS interface. For displays with digital interface an extra receiver board is available. There is no support for DSTN displays. - Page 25 LVDS odd clock - TXO1C LVDS odd clock + TXO13# LVDS odd data 3 - TXO13 LVDS odd data 3 + DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD 5 volt supply ADL Embedded Solutions ADLQM67PC page 25...
-
Page 26: Usb
USB6 plus channel USB6 ground ground ground ground plus channel USB7 USB7 USB8 plus channel USB8 minus channel USB7 USB7# USB8# minus channel USB8 5 volt for USB7 USB7VCC USB8VCC 5 volt for USB8 page 26 ADL Embedded Solutions ADLQM67PC... -
Page 27: Lan
LAN1# LAN0# LAN channel 0 minus LAN channel 3 plus LAN3 LAN2 LAN channel 2 plus LAN channel 3 minus LAN3# LAN2# LAN channel 2 minus LAN speed 100Mbit SPEED100 3.3V 3.3 volt supply ADL Embedded Solutions ADLQM67PC page 27... -
Page 28: Audio
Audio 3.12 Audio The ADLQM67PC's audio functions are provided via a 2x8pin connector (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). This interface provides eight output channels for full 7.1 sound output. Two microphone inputs and two AUX inputs are also available. -
Page 29: Sata Interfaces
Chapter: Connectors 3.13 SATA Interfaces The ADLQM67PC provides two SATA interfaces allowing transfer rates of up to 6 Gbit per second. These interfaces are made available via two 7 pin connectors. The required settings are made in the BIOS setup. -
Page 30: Com1 And Com2
FCI 90311-010LF). Description Name Name Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground 5 volt supply page 30 ADL Embedded Solutions ADLQM67PC... -
Page 31: Gpio
GPIO04 GPIO14 GP input/output 14 GP input/output 05 GPIO05 GPIO15 GP input/output 15 GP input/output 06 GPIO06 GPIO16 GP input/output 16 GP input/output 07 GPIO07 GPIO17 GP input/output 17 3.3 volt supply 3.3V ground ADL Embedded Solutions ADLQM67PC page 31... -
Page 32: Monitoring Functions
CS-SMB-CLK SMBus clock CS-SMB-DAT SMBus data ground 5 volt supply FANCTRL1 fan 1 monitoring signal FANON1 5 volt supply (switched) FANCTRL2 fan 2 monitoring signal FANON2 5 volt supply (switched) FANCTRL3 fan 3 (external) monitoring signal page 32 ADL Embedded Solutions ADLQM67PC... -
Page 33: Status Leds
HD LED Chapter: Status LEDs 4 Status LEDs 4.1 HD LED Harddisk activity is signalled by a dedicated LED. ADL Embedded Solutions ADLQM67PC page 33... -
Page 34: Rgb Led
Chapter: Status LEDs RGB LED 4.2 RGB LED The ADLQM67PC has an RGB LED, which can signal status messages by using different colors and flash intervals. Status Codes RGB LED: Color Interval Meaning none solid Invalid system state White solid... -
Page 35: Bios Settings
They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used. ADL Embedded Solutions ADLQM67PC page 35... -
Page 36: Main
ü Name Options: none ü Brand String Options: none ü Frequency Options: none ü Processor ID Options: none ü Stepping Options: none ü Number of Processors Options: none ü Microcode Revision Options: none page 36 ADL Embedded Solutions ADLQM67PC... - Page 37 ü Memory RC Version Options: none ü Total Memory Options: none ü Memory Frequency Options: none ü System Date Options: Hier kann das Systemdatum geändert werden. ü System Time Options: Hier kann die Systemzeit geändert werden. ADL Embedded Solutions ADLQM67PC page 37...
-
Page 38: Advanced
ü H/W Monitor Sub menu: see "H/W Monitor" (p. 49) ü Serial Port Console Redirection Sub menu: see "Serial Port Console Redirection" (p. 51) ü CPU PPM Configuration Sub menu: see "CPU PPM Configuration" (p. 53) page 38 ADL Embedded Solutions ADLQM67PC... -
Page 39: Pci Subsystem Settings
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü Above 4G Decoding Options: Enabled / Disabled ü PCI Latency Timer Options: 32, 64,...224, 248 PCI Bus Clocks ü PCI Express Settings Sub menu: see "PCI Express Settings" (p. 40) ADL Embedded Solutions ADLQM67PC page 39... - Page 40 ü Extended Synch Options: Enabled / Disabled ü Link Training Retry Options: Disabled / 2 / 3 / 5 ü Link Training Timeout (uS) Options: 10...1000 ü Unpopulated Links Options: Keep Link ON / Disable page 40 ADL Embedded Solutions ADLQM67PC...
-
Page 41: Acpi Settings
ü Enable ACPI Auto Configuration Options: Enabled / Disabled ü Enable Hibernation Options: Enabled / Disabled ü ACPI Sleep State Options: Suspend Disabled / S1 only (CPU Stop Clock) ü Lock Legacy Resources Options: Enabled / Disabled ADL Embedded Solutions ADLQM67PC page 41... -
Page 42: Cpu Configuration
ü Processor Cores Options: none ü Intel HT Technology Options: none ü Intel VT-x Technology Options: none ü Intel SMX Technology Options: none ü 64-bit Options: none ü L1 Data Cache Options: none page 42 ADL Embedded Solutions ADLQM67PC... - Page 43 ü Execute Disable Bit Options: Enabled / Disabled ü Intel Virtualization Technology Options: Enabled / Disabled ü TCC Activation Offset Options: 0...50 ü Primary Plane Current value Options: 0...255 ü Secondary Plane Current value Options: 0...255 ADL Embedded Solutions ADLQM67PC page 43...
-
Page 44: Sata Configuration
ü Port X Options: Enabled / Disabled ü Hot Plug Options: Enabled / Disabled ü SATA Device Type Options: Hard Disk Drive / Solid State Drive ü Spin Up Device Options: Enabled / Disabled page 44 ADL Embedded Solutions ADLQM67PC... -
Page 45: Power Controller Options
ü Temperature (Min/Max) Options: none ü ext. USB-Port Voltage Options: Off in S3-5 / by SVCC ü int. USB-Port Voltage Options: Off in S3-5 / by SVCC ü WatchDogTimer Mode Options: Normal Mode / Compatibility Mode ADL Embedded Solutions ADLQM67PC page 45... -
Page 46: Usb Configuration
ü USB transfer time-out Options: 5 sec / 10 sec / 20 sec ü Device reset time-out Options: 10 sec / 20 sec / 30 sec / 40 sec ü Device power-up delay Options: Auto / Manual page 46 ADL Embedded Solutions ADLQM67PC... -
Page 47: Super Io Configuration
│ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü Super IO Chip Options: none ü Serial Port X Configuration Sub menu: see "Serial Port Configuration" (p. 48) ADL Embedded Solutions ADLQM67PC page 47... - Page 48 Options: none ü Change Settings Options: Auto / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, ...12 / IO=2F8h; IRQ=3, ...12 / IO=3E8h; IRQ=3, ...12 / IO=2E8h; IRQ=3, ...12 ü Device Mode Options: Normal / High Speed page 48 ADL Embedded Solutions ADLQM67PC...
-
Page 49: H/W Monitor
Options: none ü CPU FAN Speed Options: none ü AUX FAN Speed Options: none ü +1.05V Options: none ü VccCore Options: none ü +3.3V Options: none ü Vcc Options: none ü +12V Options: none ADL Embedded Solutions ADLQM67PC page 49... - Page 50 Chapter: BIOS Settings Advanced ü VTR Options: none ü Vbat Options: none page 50 ADL Embedded Solutions ADLQM67PC...
-
Page 51: Serial Port Console Redirection
│ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü Console Redirection Options: Enabled / Disabled ü Console Redirection Settings Sub menu: see "Console Redirection Settings" (p. 52) ADL Embedded Solutions ADLQM67PC page 51... - Page 52 Disabled / Enabled ü Resolution 100x31 Options: Disabled / Enabled ü Legacy OS Redirection Resolution Options: 80x24 / 80x25 ü Putty KeyPad Options: VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 page 52 ADL Embedded Solutions ADLQM67PC...
-
Page 53: Cpu Ppm Configuration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü EIST Options: Disabled / Enabled ü CPU Cx Report Options: C0 / C1 / C3 / C6 / C7 ü Config TDP LOCK Options: Disabled / Enabled ADL Embedded Solutions ADLQM67PC page 53... -
Page 54: Chipset
│ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü PCH-IO Configuration Sub menu: see "PCH-IO Configuration" (p. 55) ü System Agent (SA) Configuration Sub menu: see "System Agent (SA) Configuration" (p. 62) page 54 ADL Embedded Solutions ADLQM67PC... -
Page 55: Pch-Io Configuration
ü PCH LAN Controller Options: Disabled / Enabled ü Second LAN Controller Options: Disabled / Enabled ü Board Capability Options: SUS_PWR_DN_ACK / DeepSx ü Display Logic Options: Disabled / Enabled ü CLKRUN# Logic Options: Disabled ADL Embedded Solutions ADLQM67PC page 55... - Page 56 Disabled / Enabled ü SLP_S4 Assertion Width Options: Disabled / 1-2 Seconds / 2-3 Seconds / 3-4 Seconds / 4-5 Seconds ü Restore AC Power Loss Options: Power Off / Power On / Last State page 56 ADL Embedded Solutions ADLQM67PC...
- Page 57 ü DMI Link Extended Synch Control Options: Disabled / Enabled ü PCIe-USB Glitch W/A Options: Disabled / Enabled ü Subtractive Decode Options: Disabled ü PCI Express Root Port X Sub menu: see "PCI Express Root Port" (p. 58) ADL Embedded Solutions ADLQM67PC page 57...
- Page 58 Disabled / Enabled ü CTO Options: Disabled / Enabled ü SEFE Options: Disabled / Enabled ü SENFE Options: Disabled / Enabled ü SECE Options: Disabled / Enabled ü PME SCI Options: Disabled / Enabled page 58 ADL Embedded Solutions ADLQM67PC...
- Page 59 Auto / Gen1 / Gen2 ü Extra Bus Reserved Options: 0...7 ü Reserved Memory Options: 1...20 ü Prefetchable Memory Options: 1...20 ü Reserved I/O Options: 4 / 8 / 12 / 16 / 20 ADL Embedded Solutions ADLQM67PC page 59...
- Page 60 │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü EHCI1 Options: Disabled / Enabled ü EHCI2 Options: Disabled / Enabled ü USB Ports Per-Port Disable Control Options: Disabled / Enabled page 60 ADL Embedded Solutions ADLQM67PC...
- Page 61 │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. ü Azalia Options: Disabled / Enabled / Auto ü Azalia PME Options: Disabled / Enabled ü Azalia Internal HDMI Codec Options: Disabled / Enabled ADL Embedded Solutions ADLQM67PC page 61...
-
Page 62: System Agent (Sa) Configuration
Disabled / Enabled ü BDAT ACPI Table Support Options: Disabled / Enabled ü Graphics Configuration Sub menu: see "Graphics Configuration" (p. 63) ü NB PCIe Configuration Sub menu: see "NB PCIe Configuration" (p. 65) page 62 ADL Embedded Solutions ADLQM67PC... - Page 63 32M / 64M ... 480M / 512M / 1024M ü DVMT Total Gfx Mem Options: 128M / 256M / MAX ü Gfx Low Power Mode Options: Disabled / Enabled ü LCD Control Sub menu: see "LCD Control" (p. 64) ADL Embedded Solutions ADLQM67PC page 63...
- Page 64 ü ALS Support Options: Disabled / Enabled ü Active LFP Options: No LVDS / Int-LVDS / SDVO LVDS / eDP Port-A / eDP Port-D ü Panel Color Depth Options: 18 Bit / 24 Bit page 64 ADL Embedded Solutions ADLQM67PC...
- Page 65 ü De-emphasis Control Options: -6 dB / -3.5 dB ü PEG Sampler Calibrate Options: Auto / Disabled / Enabled ü Swing Control Options: Reduced / Half / Full ü Gen3 Equalization Options: Disabled / Enabled ADL Embedded Solutions ADLQM67PC page 65...
-
Page 66: Boot
ü Skip USB Options: Disabled / Enabled ü Skip PS2 Options: Disabled / Enabled ü CSM16 Module Version Options: none ü GateA20 Active Options: Upon Request / Always ü ING19 Trap Response Options: Immediate / Postponed page 66 ADL Embedded Solutions ADLQM67PC... - Page 67 Boot Chapter: BIOS Settings ü Boot Option Priorities Options: Review or change the sequence of available boot devices ü CSM Parameters Sub menu: see "CSM Parameters" (p. 68) ADL Embedded Solutions ADLQM67PC page 67...
-
Page 68: Csm Parameters
ü Boot option filter Options: UEFI and Legacy / Legacy only / UEFI only ü Launch PXE OpROM policy Options: Disabled / Enabled ü Other PCI device ROM priority Options: UEFI OpROM / Legacy OpROM page 68 ADL Embedded Solutions ADLQM67PC... -
Page 69: Security
ü User Password Options: Press [Enter] ü Secure Boot control Options: Disabled / Enabled ü Secure Boot Policy Sub menu: see "Secure Boot Policy" (p. 70) ü Key Management Sub menu: see "Key Management" (p. 71) ADL Embedded Solutions ADLQM67PC page 69... -
Page 70: Secure Boot Policy
Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User ü Fixed Media Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User page 70 ADL Embedded Solutions ADLQM67PC... -
Page 71: Key Management
Press [Enter] ü Delete the KEK Options: Press [Enter] ü Append an entry to KEK Options: Press [Enter] ü Set DB from File Options: Press [Enter] ü Get DB to File Options: Press [Enter] ADL Embedded Solutions ADLQM67PC page 71... - Page 72 Options: Press [Enter] ü Get DBX to File Options: Press [Enter] ü Delete the DBX Options: Press [Enter] ü Append an entry to DBX Options: Press [Enter] ü Install Factory Defaults Options: Press [Enter] page 72 ADL Embedded Solutions ADLQM67PC...
-
Page 73: Save & Exit
ü Discard Changes and Reset Options: Press [Enter] ü Restore Defaults Options: Press [Enter] ü Save as User Defaults Options: Press [Enter] ü Restore User Defaults Options: Press [Enter] ü Boot Override Options: Press [Enter] ADL Embedded Solutions ADLQM67PC page 73... -
Page 74: Bios Update
If you try to update the BIOS using the wrong file the board will not start up again. page 74 ADL Embedded Solutions ADLQM67PC... -
Page 75: Mechanical Drawing
PCB: Mounting Holes Chapter: Mechanical Drawing 6 Mechanical Drawing 6.1 PCB: Mounting Holes A true dimensioned drawing can be found in the PC/104 specification. All dimensions are in mil (1 mil = 0,0254 mm) ADL Embedded Solutions ADLQM67PC page 75... -
Page 76: Pcb: Pin 1 Dimensions
Chapter: Mechanical Drawing PCB: Pin 1 Dimensions 6.2 PCB: Pin 1 Dimensions All dimensions are in mil (1 mil = 0,0254 mm) page 76 ADL Embedded Solutions ADLQM67PC... -
Page 77: Pcb: Heat Sink/Die Center
PCB: Heat Sink/Die Center Chapter: Mechanical Drawing 6.3 PCB: Heat Sink/Die Center All dimensions are in mil (1 mil = 0,0254 mm) ADL Embedded Solutions ADLQM67PC page 77... -
Page 78: Heat Spreader: Chassis Mount
Medium heat spreader: Blue and red holes § Full size heat spreader: Blue and green holes To determine which heat spreaders are available for the ADLQM67PC, please refer to the ADLQM67PC datasheet. Dimensions are in inch (1 in = 2.54cm; 1 mil = 0.0254 mm) -
Page 79: Technical Data
5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. ADL Embedded Solutions ADLQM67PC page 79... -
Page 80: Thermal Specifications
AUTION The ADLQM67PC includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector. When PS_ON# is no longer pulled low, an intelligent power supply would take this as a signal to shut down power. -
Page 81: I Anhang: Post-Codes
(POST code card). The meaning of these codes is described in the document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their website http://www.ami.com. The following additional OEM POST codes are generated: Code Description BIOS-API started PCA9535 started PWRCTRL-Firmware started ADL Embedded Solutions ADLQM67PC page 81... -
Page 82: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Address Function IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) IRQ3 COM1 IRQ4 COM2 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse page 82 ADL Embedded Solutions ADLQM67PC... -
Page 83: Pci Devices
Address Function 10-11 Standard slave address 40-41 GPIO 60-61 BIOS internal 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal D2-D3 Clock ADL Embedded Solutions ADLQM67PC page 83...
