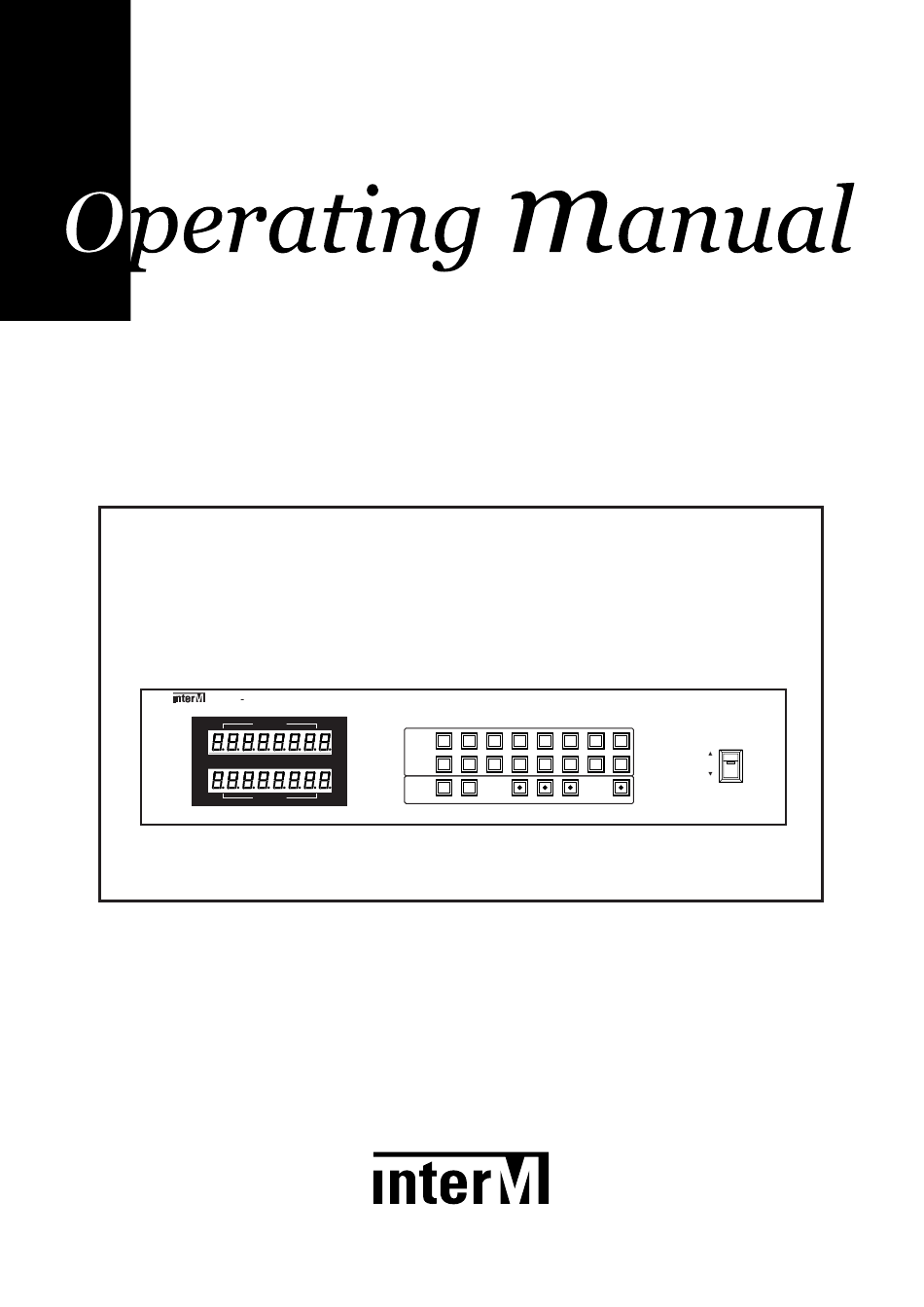

- Page 1 VAMS-0808 Video Audio Matrix Switcher VAMS 0808 VIDEO AUDIO MATRIX SWITCHER VIDEO INPUT OUTPUT POWER OUTPUT INPUT AUDIO INPUT VIDEO AUDIO LOCK...
-
Page 2: Table Of Contents
8. Using the Matrix ........................8 9. Connections.........................11 10. Block Diagram........................12 11. Specifications........................13 OFFICE : 226-9 DUGJUNG - LI, HOE CHUN - EUB, YANGJU - KUN, KYUNGKI - DO, KOREA TEL : 82-31-860-7041~8, FAX : 82-31-858-1907 Home Page : http://www.inter-m.com E-mail : export@inter-m.com... -
Page 3: Unpacking
Definition Definition VAMS-0808 is a full matrix switcher which can represent 8 A/V inputs to any 8 A/V outputs simultaneous- ly without any A/V thermal noise. This machine includes microprocessor controller, so it’s easy to control and it allows to be displayed the present setting at STATUS WINDOW DISPLAY. -
Page 4: Features
- Low crosstalk and wideband frequency response. - Parallel connection. - RS-232C interface. - Restore to the first setup mode in case of power failure. - Vertical interval switching function with GENLOCK in channel changing. - Lock function for protecting a configuration from user’s mishanding. VAMS-0808... -
Page 5: Front Panel Controls
Lock function isn’t cancelled even if this machine is on and off. 7. STATUS DISPLAY (VIDEO) Displays the video configuration. The figure of status display represents which video inputs are trans- ferred to video output terminals. “1~8” indicate each channel and “0” means non output. VAMS-0808... - Page 6 Represents the setting condition of 2, 3 select switch. - A/V: 2, 3 select switches can control VIDEO and AUDIO signals. - VIDEO: 2, 3 select switches can control only VIDEO signals. - AUDIO: 2, 3 select switches can control only AUDIO signals. VAMS-0808...
-
Page 7: Rear Panel Controls
* Binary input for external control SEL B INPUT SEL C INPUT SEL D INPUT SEL E INPUT V-SYNC OUTPUT Vertical sync output SEL A OUTPUT * Binary output for external control SEL B OUTPUT SEL C OUTPUT SEL D OUTPUT SEL E OUTPUT VAMS-0808... - Page 8 VIDEO AUDIO MATRIX SWITCHER 6. RS-232C JACK It allows to be connected PC with VAMS-0808 by RS-232 communication port. It’s possible to control VAMS-0808 by PC. RS-232C output terminal PIN NO. SIGNAL FUNCTION RS-232C TERMINAL RS-232C TERMINAL 7. ~AC INPUT Power source input.
-
Page 9: Rs-232C Operation
CODE: ASCII TERMINATE TERMINATE Installation Installation 1. CONNECTION OF VIDEO DEVICES Video inputs and outputs may be connected to the BNC type connectors located on the rear panel of VAMS-0808. AUDIO OUTPUT AUDIO INPUT AC INPUT SELECT INPUT/OUTPUT VIDEO OUTPUT... -
Page 10: Using The Matrix
At this time, status display NO1 located on left of the front panel is blinked for 10 seconds approximate- Like this, any outputs can be selected. These buttons correspond to output connectors as marked on the rear panel of VAMS-0808. 2. SELECTING AN INPUT To select an input, press one of the number of INPUT switch button. - Page 11 - USING THE CONTROL TERMINAL OF THE REAR PANEL 1. CONNECTING PARALLELLY WITH OTHER VAMS-0808 (MASTER AND SLAVE) It allows to be controlled slave VAMS-0808 which is connected parallelly with master by external con- nection jack. The operations of master affects them of slave equally.
- Page 12 It’s possible to control VAMS-0808 by PC with control program (RS-232C communication interface) First of all, make the cable which can connect PC using 9P D-SUB jack. Then connect VAMS-0808 with PC using the cable. And execute the control program in PC.
-
Page 13: Connections
DISC INTRO TRACK INDEX INTRO 10 11 12 13 14 -SKIP-SEARCH STOP/CLEAR PLAY/PAUSE VQD 1204 QUAD SWITCHER POWER AUTO MENU RESET ENTER VQD-1204 RS-232 Comunication AUDIO OUTPUT AUDIO INPUT AC INPUT SELECT INPUT/OUTPUT VIDEO OUTPUT VIDEO INPUT RS-232 www.inter-m.com VAMS-0808... -
Page 14: Block Diagram
VIDEO AUDIO MATRIX SWITCHER Block Diagram Block Diagram VAMS-0808... -
Page 15: Specifications
Crosstalk .........................Below -90dB CONTROL CPU..........................KS88C4632 Interface ..........................RS-232C Data Bit ............................8 bit Stop Bit ............................1 bit Parity..........................None Parity - GENERAL Power Source ....................AC 110V–240V, 50/60Hz Dimensions ....................482(W) 88(H) 220(D)mm * Specifications and design subject to change without notice for improvements. VAMS-0808... - Page 16 MADE IN KOREA 9007979710...
