HD A/V MATRIX SWITCHER
HDMX-1104

Advertisement

Table of Contents
loading

Related Manuals for Inter-m HDMX-1104

Summary of Contents for Inter-m HDMX-1104

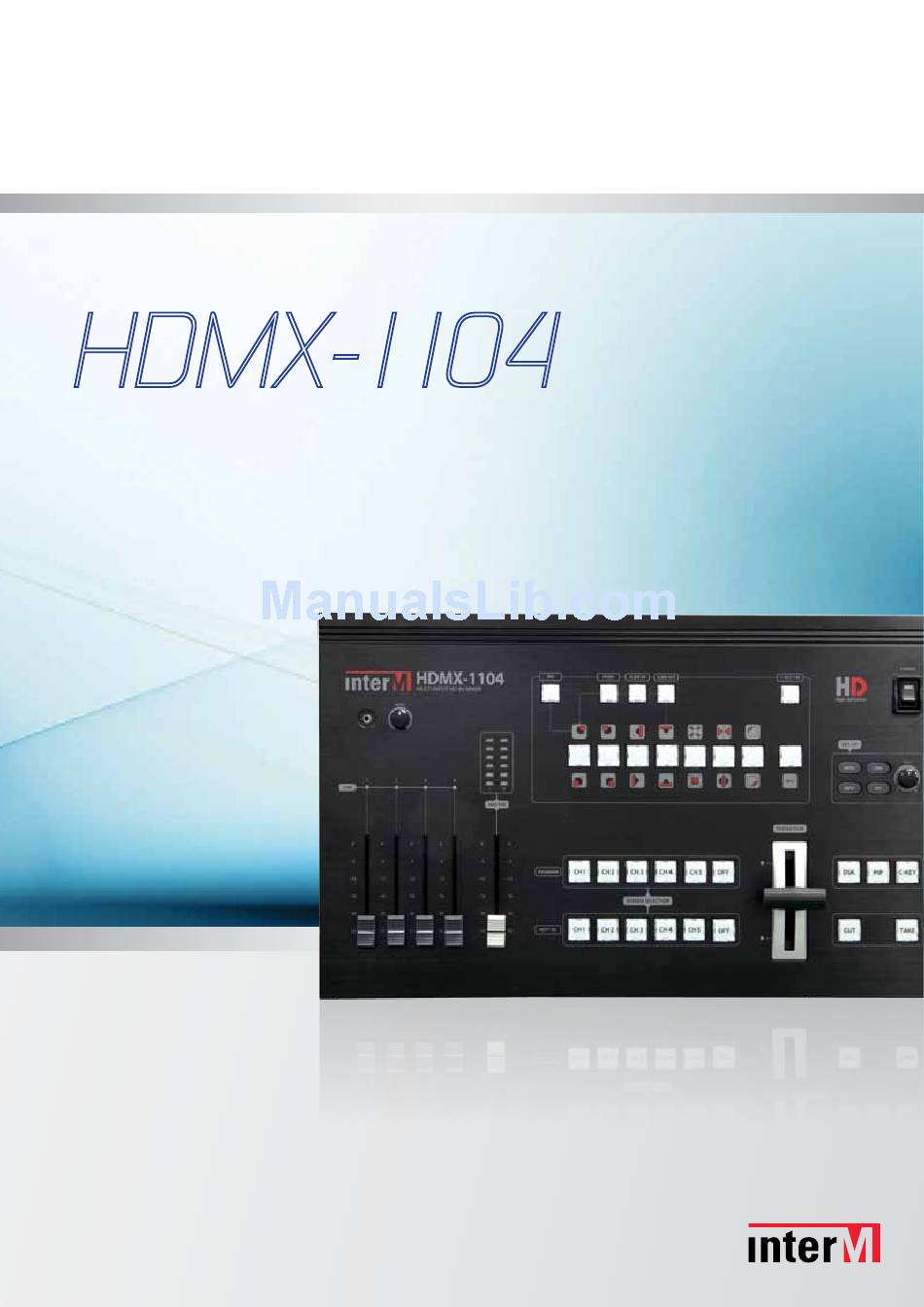

  • Page 1 HD A/V MATRIX SWITCHER HDMX-1104...
  • Page 2 The Inter-M HDMX-1104 is a multi-format HD, High-definition, video switcher, an audio mixer, frame synchronizer, and digital effect that supports 1080i/720p HDMI and HD-SDI formats. The HDMX-1104 is a four channel video mixer with DSK and real-time effects specially designed for live visual per- formance at concerts, dance parties, House of worship and corporate events.

  • Page 3: Inputs And Outputs

    DC Power input terminal Program Video Out , Preview Monitor Out (2 x HD-SDI, 1 x HDMI) (1 x HDMI) DSK signal input (1 x DVI) Video inputs ( 4 x HD-SDI, 3 x HDMI) Stereo Audio Output Stereo Audio Input HDMX-1104...

  • Page 4: Multi-Viewer

    Multi-Viewer : Program output display : Preview of the active standby source CAM 1~4 : Video input 1 to 4 preview monitor CAM 5 : DVI video input preview monitor 1 : PROGRAM CHROMA-KEY* previews composite result PIP* PROGRAM result preview DSK* program result preview CHROMA-KEY : A special effects or post-production technique for compositing...
  • Page 5 Send ‘ON AIR’ status information to Broadcasting equipment such as camera or VTR to turn on the TALLY light display Stereo Audio Mixer A four channel stereo audio mixer can be configured to operate independently (separate from the video) or in Audio Follow Video Mode where the audio will switch and mix synchronized with the video mixer. HDMX-1104...

  • Page 6: Circuit Block Diagram

    Circuit Block Diagram 1-HD SDI W_CTL FRM_BUF MONITOR 2-HD SDI HDMI W_CTL FRM_BUF 2-HDMI 3-HD SDI EFFECT PROGRAM FRM_BUF W_CTL 3-HDMI COMBINER HD-SDI 4-HD SDI GENERATOR W_CTL FRM_BUF HD-SDI 4-HDMI HDMI FRM_BUF W_CTL 5-DVI(D) C-KEY GEN PIP GEN DSK PRCS Related Equipment HDMS-0412 HDMS-0808...
  • Page 7 Component Encoding (Cat6) + Audio SB-304HD Control (Cat6) Blueray Player Projector SB-300HD broadcasting booth Monitor Screen PC (S-Media) SOURCE HDMX-1104 HDMI HD-SDI HDMI HD-SDI Recording HD-SDI HD-SDI Transmitting Chapel Project HDMI Chapel PDP Chapel PDP HD-SDI + Audio Chapel PDP...

  • Page 8: Specifications

    93 x 266 mm / 17.2 x 3.6 x 10.4 DIMENSION Specifications and design are subject to change without notice. Inter-M Corp. (IMK) 653-5 Banghak-Dong, Dobong-Ku, Seoul, Korea Overseas Sales Team Tel_ +82-2-2289-8141~7 Fax_ +82-2-2289-8149 E-mail_ overseas@inter-m.com www.inter-m.com Design and specification are subject to be changed without pre notice.
