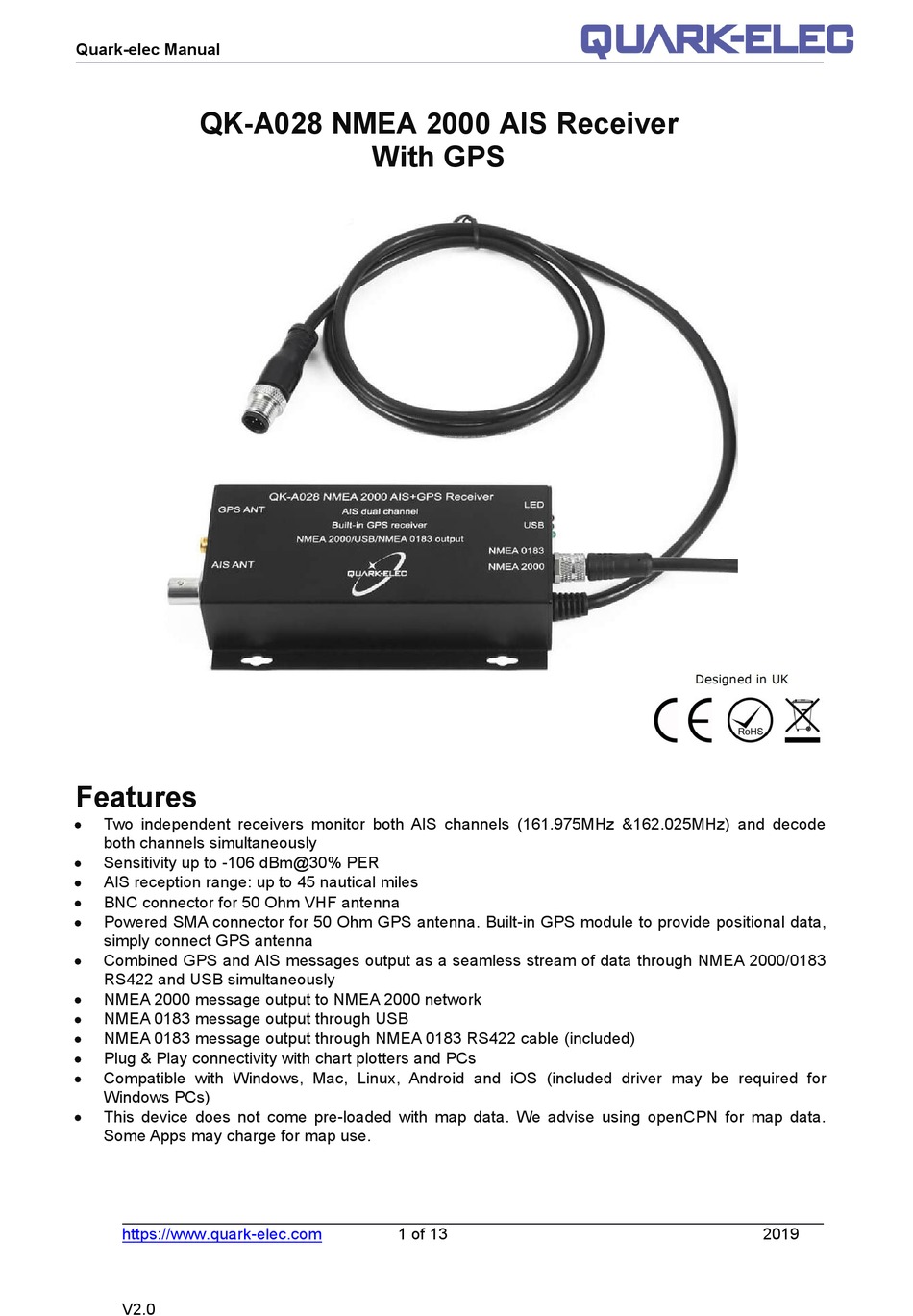

Quark-elec Manual
QK-A028 NMEA 2000 AIS Receiver
Features
Two independent receivers monitor both AIS channels (161.975MHz &162.025MHz) and decode
both channels simultaneously
Sensitivity up to -106 dBm@30% PER
AIS reception range: up to 45 nautical miles
BNC connector for 50 Ohm VHF antenna
Powered SMA connector for 50 Ohm GPS antenna. Built-in GPS module to provide positional data,
simply connect GPS antenna
Combined GPS and AIS messages output as a seamless stream of data through NMEA 2000/0183
RS422 and USB simultaneously
NMEA 2000 message output to NMEA 2000 network
NMEA 0183 message output through USB
NMEA 0183 message output through NMEA 0183 RS422 cable (included)
Plug & Play connectivity with chart plotters and PCs
Compatible with Windows, Mac, Linux, Android and iOS (included driver may be required for
Windows PCs)
This device does not come pre-loaded with map data. We advise using openCPN for map data.
Some Apps may charge for map use.
https://www.quark-elec.com
V2.0
With GPS
1 of 13
2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quark-Elec QK-A028
Summary of Contents for Quark-Elec QK-A028
- Page 1 Quark-elec Manual QK-A028 NMEA 2000 AIS Receiver With GPS Features Two independent receivers monitor both AIS channels (161.975MHz &162.025MHz) and decode both channels simultaneously Sensitivity up to -106 dBm@30% PER AIS reception range: up to 45 nautical miles ...
-
Page 2: Table Of Contents
Quark-elec Manual 1. Contents Contents................................2 Set up Overview............................... 3 Before you leave your home:..........................3 Installation:.................................3 Introduction................................4 NMEA 2000 and NMEA 0183........................5 Mounting................................5 Connecting................................ 6 6.1. Power up.............................. 6 Antennas................................7 Connection to Output Devices........................8 8.1. Connection via NMEA 2000......................8 8.2. -
Page 3: Set Up Overview
‘terminals works for your device. Alternatively, connect it using a Quark-elec Protocol Bridge (QK-AS03). 6. Connect via USB if required. Windows PCs may require you to install a driver (on CD and www.quark-elec.com). Once the driver is installed simply input the COM port number from your Device Manager into your chart software. -
Page 4: Introduction
Quark-elec Manual If wishing to connect to a tablet or phone, this device will have to have USB OTG technology. Not all Phones and tablets have ‘USB on the Go’ functionality. 3. Introduction The marine Automatic Identification System (AIS) is a location and vessel information reporting system. -
Page 5: Nmea 2000 And Nmea 0183
Quark-elec Manual 4. NMEA 2000 and NMEA 0183 NMEA 0183 is a serial data interface operating at 4800 bit/second utilizing standard asynchronous communications. NMEA 2000 is a serial data network operating at 250 Kbit/second utilizing the Controller Area Network (CAN). The CAN bus was originally developed for the automotive industry but is now used in numerous industrial applications. -
Page 6: Connecting
NMEA 0183-RS232 and you are having issues with your NMEA connection, you may find swapping these ‘+’ and ‘-‘ terminals works for your device. Alternatively, connect it using a Quark-elec Protocol Bridge (QK-AS03 https://www.quark-elec.com/product/qk- as03-nmea0183-to-garmin-bridge-board/). -
Page 7: Antennas
VHF equipment (VHF radio). If not, the two signals will significantly damage each device connected as well as reducing the signal. If using two VHF antennas, place them as far away from each other as possible (at least 3 metres). Figure 6: QK-AS02 VHF antenna by Quark-elec https://www.quark-elec.com 7 of 13 2019 V2.0... -
Page 8: Connection To Output Devices
Quark-elec Manual 8. Connection to Output Devices A028 provides two NMEA message output types using 3 different connections 8.1. Connection via NMEA 2000 The NMEA 2000 outputs converted AIS messages in NMEA 2000 PGNs. Many modern on board electronic system now utilize the NMEA2000 interfacing standard to allow inter-connectivity and interfacing between systems. -
Page 9: Will Your Device Need A Driver
Quark-elec Manual 8.3.1. Will your device need a driver? Windows: To enable the USB data connection of A028 to other devices, related hardware drivers may be needed dependent on your system requirements. Windows 7,8,10 the driver can be found on the CD in the packing box or be downloaded from https://www.quark-elec.com... -
Page 10: Status Led's
Quark-elec Manual 9. Status LED’S LED lights. A028 features three LEDs which indicate power, AIS and GPS status respectively. Three LEDs turn on and then off after initialization. When operating, these LEDs flash as below: Figure 11: LED’s Power: Top LED flashes at 3 second intervals. -
Page 11: Chart Software
1. When you first open the software you will be greeted with a page similar to the one below. This is the main view of openCPN software. You now need to add data to openCPN via your Quark-elec instruments. Click on the 'Options’ tab at the top. The settings tab looks like a spanner as seen below in the highlighted image. -
Page 12: Support Ais Message
Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour. -
Page 13: Glossary
Quark-elec Manual The above does not affect the statutory rights of the consumer. Disclaimer This product is designed to aid navigation and should be used to augment normal navigational procedures and practices. It is the user’s responsibility to use this product prudently. Neither Quark-,...
