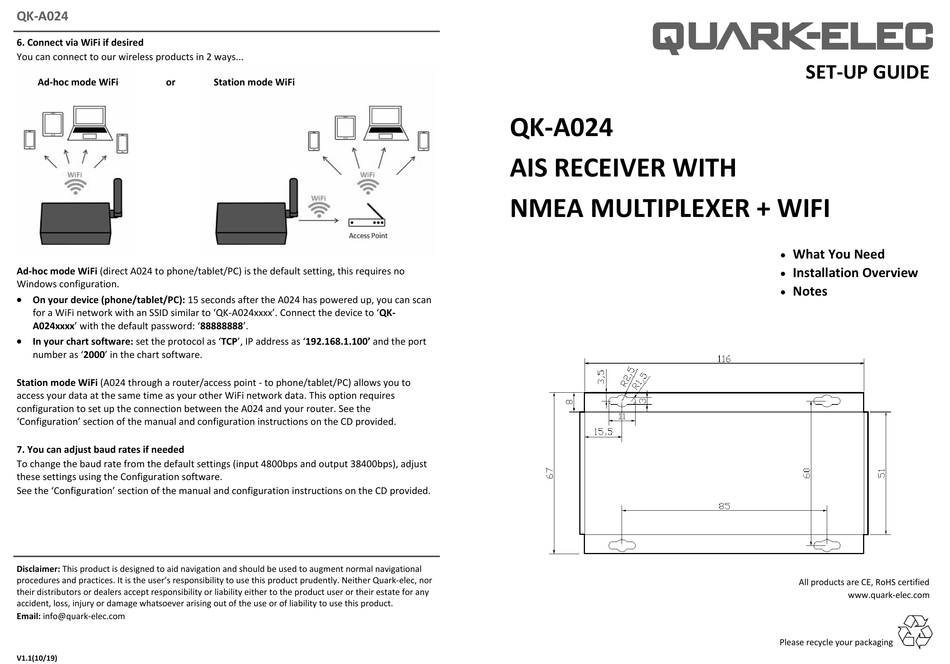

Quark-Elec QK-A024 Setup Manual

QK-A024
6. Connect via WiFi if desired
You can connect to our wireless products in 2 ways...
Ad-hoc mode WiFi or
Ad-hoc mode WiFi (direct A024 to phone/tablet/PC) is the default setting, this requires no
Windows configuration.

On your device (phone/tablet/PC): 15 seconds after the A024 has powered up, you can scan
for a WiFi network with an SSID similar to 'QK-A024xxxx'. Connect the device to 'QK-
A024xxxx' with the default password: '88888888'.

In your chart software: set the protocol as 'TCP', IP address as '192.168.1.100' and the port
number as '2000' in the chart software.
Station mode WiFi (A024 through a router/access point - to phone/tablet/PC) allows you to
access your data at the same time as your other WiFi network data. This option requires
configuration to set up the connection between the A024 and your router. See the
'Configuration' section of the manual and configuration instructions on the CD provided.
7. You can adjust baud rates if needed
To change the baud rate from the default settings (input 4800bps and output 38400bps), adjust
these settings using the Configuration software.
See the 'Configuration' section of the manual and configuration instructions on the CD provided.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.1(10/19)
Station mode WiFi
QK-A024
AIS RECEIVER WITH
NMEA MULTIPLEXER + WIFI
SET-UP GUIDE

What You Need

Installation Overview

Notes
All products are CE, RoHS certified
www.quark-elec.com
Please recycle your packaging
