Thermal Aerosol Generator 5D
Operator Manual
www.atitest.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5D Thermal Aerosol Generator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies 5D Thermal Aerosol Generator

Summary of Contents for ATI Technologies 5D Thermal Aerosol Generator

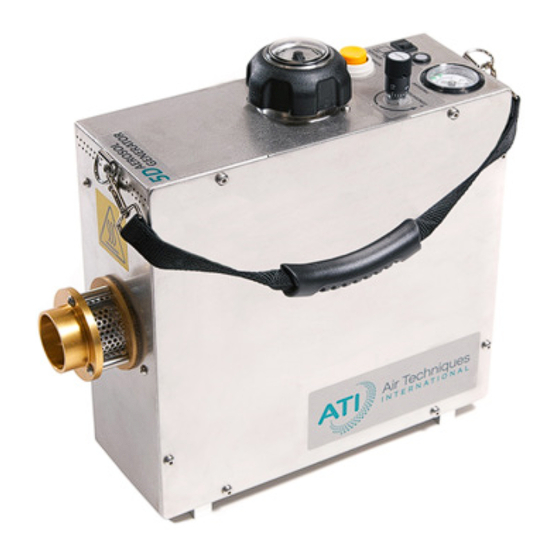

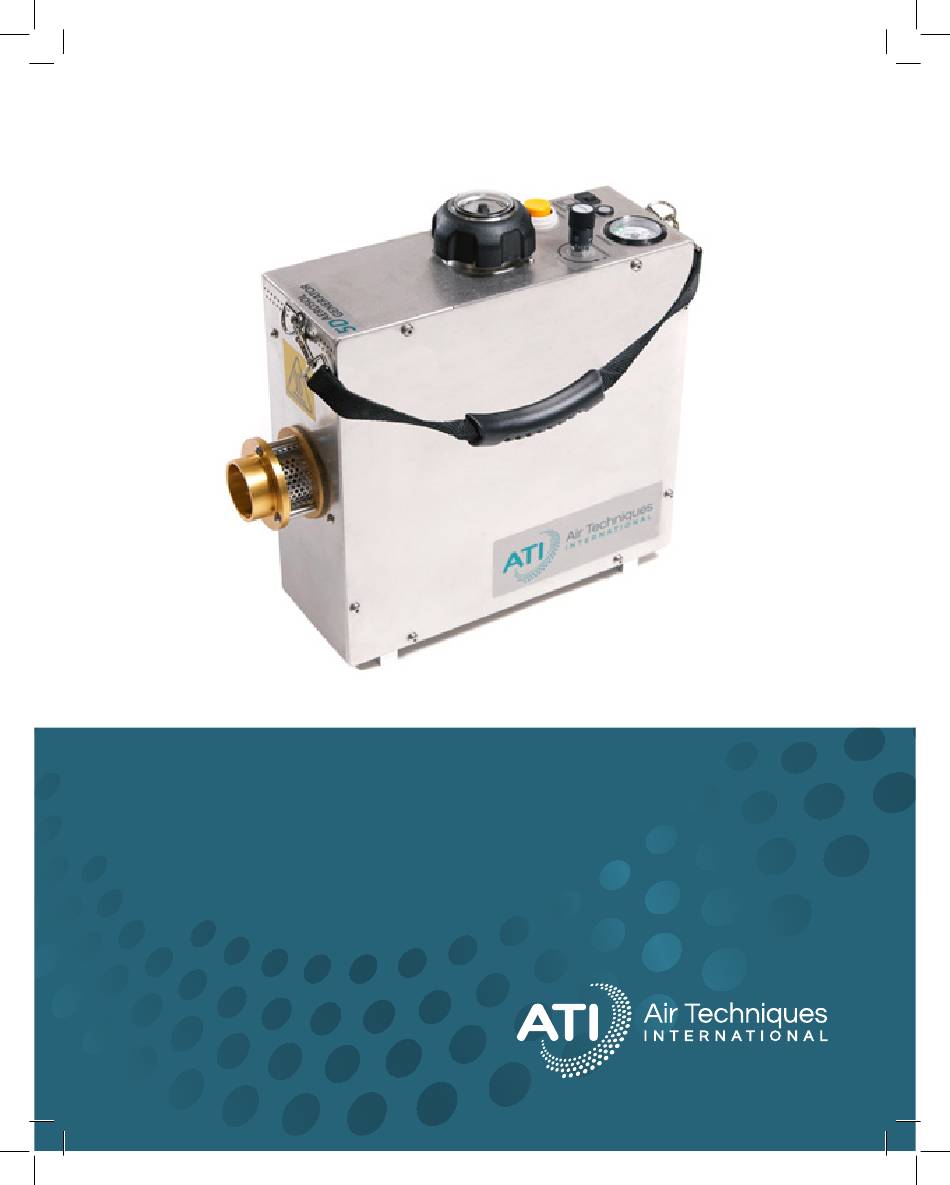

  • Page 1 Thermal Aerosol Generator 5D Operator Manual www.atitest.com...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ......................1 2. Precautions ......................2 3. Setup ........................7 4. Accessories ......................8 5. Controls and Indicators..................9 5.1. Back Panel ...............................9 5.2. Top Panel ...............................10 5.3. Front Panel ..............................11 6. Operation ......................12 6.1. Operating the 5D ............................12 6.2. Changing Liquid Aerosol Reagent.......................15 7.

  • Page 4: Introduction

    Thermal Aerosol Generator 5D 1. Introduction The ATI 5D Thermal Aerosol Generator uses a heating element to vaporize liquid reagent. The unit then expels the vapor using inert gas, which rapidly cools, generating aerosol. Condensation (quenching) happens at the 5D output collar, before the vapor comes into contact with enough oxygen to combust.

  • Page 5: Precautions

    Thermal Aerosol Generator 5D 2. Precautions...
  • Page 6 Thermal Aerosol Generator 5D Precautions - Español...
  • Page 7 Thermal Aerosol Generator 5D Precautions - Français...
  • Page 8 Thermal Aerosol Generator 5D Precautions - Svenska...
  • Page 9 Thermal Aerosol Generator 5D Precautions - 中文...

  • Page 10: Setup

    Thermal Aerosol Generator 5D 3. Setup The standard 5D ships with the following. Item Description Part Number Quantity 1. Base 5D Unit 9300408 or 9300409 2. Shoulder Strap 11-00248-001 6700179 for 120V or 3. Power Cord 6700180 for 240V Operating Manual (Not 73-00453-001 Shown)

  • Page 11: Accessories

    Thermal Aerosol Generator 5D 4. Accessories Item Description Part Number 1. Heavy Duty Rolling Case 9300410 2. Hose Adapter Assembly 0200445 3. Inert Gas Regulator, CO2, CA 320 Fitting 9300411 4. Inert Gas Regulator N2, CA 580 Fitting 9300412 (Not Shown) 5.

  • Page 12: Controls And Indicators

    Thermal Aerosol Generator 5D 5. Controls and Indicators 5.1. Back Panel Feature Function 1. Inert Gas Inlet Connects user-provided tubing from inert gas source to unit 2. Power ON/OFF Switch Turns main power ON and OFF 3. Main Power Input & Fuse Connects power cord to unit...

  • Page 13: Top Panel

    Thermal Aerosol Generator 5D 5.2. Top Panel Feature Function 1. Liquid Level Indicator Fill Cap Used for filling the unit with liquid aerosol reagent 2. Purge Valve Used to purge the unit after use 3. Aerosol ON/OFF Switch Controls ON/OFF of aerosol reagent 4.

  • Page 14: Front Panel

    Thermal Aerosol Generator 5D 5.3. Front Panel Feature Function 1. Output Collar Attaches user-provided 2-inch hose to unit 2. Quenching Holes Allows ambient air flow into vapor stream 3. Output Nozzle Metal outlet for aerosol stream...

  • Page 15: Operation

    Thermal Aerosol Generator 5D 6. Operation 6.1. Operating the 5D Step 1. Inspect unit (generator, gas line, and liquid aerosol reagent). Make sure aerosol switch is OFF. Step 2. Attach optional hose adapter to back of unit. Step 3. Attach hose.
  • Page 16 Thermal Aerosol Generator 5D Step 4. Press purge before filling to ensure tank is not pressurized. Fill unit with appropriate reagent and replace cap when finished. Note: Paraffin Oil and Corn Oil should not be used as reagents for Thermal Aerosol Generators. Step 5.
  • Page 17 Thermal Aerosol Generator 5D Step 8. Turn aerosol ON. Step 9. Adjust metering valve 2 turns counter clockwise to start flow. Unit will produce aerosol in about 10 seconds. Once started, adjust as needed. Note: To achieve full output, turn the metering valve counter clockwise at a rate not to exceed two turns per minute.

  • Page 18: Changing Liquid Aerosol Reagent

    Thermal Aerosol Generator 5D 6.2. Changing Liquid Aerosol Reagent Step 1. Drain reservoir. Step 2. Remove fill cap. Step 3. Turn unit ON and allow it to reach operating temperature. Step 4. Connect inert gas and turn gas ON. Step 5. Turn aerosol switch ON.

  • Page 19: Maintenance

    Thermal Aerosol Generator 5D 7. Maintenance 7.1. Replacing Main Power Fuses Step 1. Disconnect unit from power source. Step 2. Identify voltage rating (indicated on product label). Step 3. Remove fuse holder using a flat-head screwdriver.
  • Page 20 Thermal Aerosol Generator 5D Step 4. Inspect fuses to see if they are blown. Replace fuses as needed according to the table below. Step 5. Replace fuse holder and close cover. Note: If unit continues to blow fuses, contact ATI Step 6.

  • Page 21: Scheduled Maintenance

    Thermal Aerosol Generator 5D 7.2. Scheduled Maintenance You can return the generator to ATI (or a factory authorized facility) for an annual factory inspection, adjustment, and any required service. To return the generator for service, contact ATI Customer Service at +011 410-363-9696 for US, +44 (0) 1462 676446...

  • Page 22: Appendix A: Warranty

    Thermal Aerosol Generator 5D 8. Appendix A: Warranty Limitation of Warranty and Liability Air Techniques International, hereinafter referred to as ATI, warrants the equipment purchased hereunder to be free from defect in materials and workmanship under normal use and service, when used for the purpose for which it is designed, for a period of (1) one year from the date of shipment.
  • Page 23 Thermal Aerosol Generator 5D At the discretion of ATI, any defective equipment that fails within the warranty period shall be returned to ATI’s factory for inspection, properly packed with shipping charges prepaid. No equipment shall be returned to ATI without prior issuance of a return authorization by ATI. No warranties, express or implied, other than those specifically set forth herein shall be applicable to any equipment manufactured or furnished by ATI and the foregoing warranty shall constitute the Buyer’s sole right and remedy.

  • Page 24: Appendix B: Specifications

    Thermal Aerosol Generator 5D 9. Appendix B: Specifications Operational Requirements Ambient Temperature 0 to 40º C (with no condensation or icing) Ambient Pressure Standard atmosphere Ambient Humidity 5% to 95% -25 to 55º C (with no condensation or icing) Storage Requirements Less than 95% relative humidity non-condensing...
  • Page 25 Thermal Aerosol Generator 5D Product Specifications Dimension (L x W x H) 430 mm x 125 mm x 360 mm (17” x 5” x 15”) Weight 9 kg (20 Lbs.) empty 120 VAC, 60 Hz, 10 Amps (for Part Number 9300408 and 9300409) Power 240 VAC, 50 Hz, 5 Amps (for Part Number 9300410 and 9300411)
  • Page 26 Thermal Aerosol Generator 5D Performance Specifications Generation Thermal condensation <2-3 minutes to reach operating temperature of 370º C Warm Up Time (698º F) System Flow Rates 833-119,000 m /hr. (500 – 70,000cfm) 100mg/m @ 11,900m /hr. (100µg/l @ 7,000 cfm) Max.

  • Page 27: Appendix C: Spare Parts List

    Thermal Aerosol Generator 5D 10. Appendix C: Spare Parts List Item Description Part Number Replacement Line Cord, 120V 6700179 Replacement Line Cord, 240V 6700180 Replacement Fill Cap 65-00244-001 Operation and Maintenance Manual 73-00453-001 Fuses, 120V 41-00466-010 Fuses, 240V 41-00466-005 Inert Gas Inlet Fitting 5100013...

  • Page 28: Appendix D: Troubleshooting

    Thermal Aerosol Generator 5D 11. Appendix D: Troubleshooting Contact ATI for any major repair service. Symptom: No aerosol output Probable Cause Remedy Liquid aerosol reagent reservoir is empty Fill reservoir with liquid aerosol reagent Aerosol switch in OFF position Move the aerosol switch to ON Turn metering knob counterclockwise to Metering valve is closed open.
  • Page 29 Thermal Aerosol Generator 5D Symptom: Unit takes too long or never gets to operating temperature Probable Cause Remedy Not enough time allowed for the unit to Wait a minimum of 3 minutes for unit to warm up warm up. Cartridge heater(s) is defective Return for service.
  • Page 30 Thermal Aerosol Generator 5D Symptom: Wet aerosol Probable Cause Remedy Generator was not purged before starting Turn off aerosol switch and purge gas flow operation for 1 minute. Set inert gas pressure to 50 psi ± 1.0 psi (3.45 Improper inert gas pressure Bar ±...

  • Page 31: Appendix E: Manual Revision History

    Thermal Aerosol Generator 5D 12. Appendix E: Manual Revision History Revision Date Notes July 2017 Initial Release November 2017 Corrected inert gas input setting Corrected operating temperature listed in the February 2018 Performance Specification Table March 2018 Revised format June 2018 Updated sequence of operation January 2019 Updated shut down procedure...
