ATI Technologies SX080 Instruction Manual

Gas generator hot water accumulation with sealed combustion chamber type c and forced draft
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SX080
SX120
gas generator
hot water
accumulation
with sealed combustion chamber (type C)
and forced draft
INSTRUCTION MANUAL
 GENERAL INFORMATION AND FEATURES
 INSTALLATION INSTRUCTIONS
 INSTRUCTIONS FOR THE USER
original instructions
Read and follow these instructions before installing the unit.
Always keep at hand this manual during the maintenance phase.
This manual is also available in electronic format and can be downloaded from the website
www.atimariani.it
ATI DI MARIANI SRL - Via E. Mattei, 461 - Industrial Area No. 4 Torre del Moro - 47522 Cesena (FC) - Italy
Tel .: +39 0547 609711 - Fax: +39 0547 609724 - Web: www.atimariani.it- Email: info@atimariani.it
IVA IT 00281090407 - REA 143693
210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx
ed. 2019-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies SX080

Summary of Contents for ATI Technologies SX080

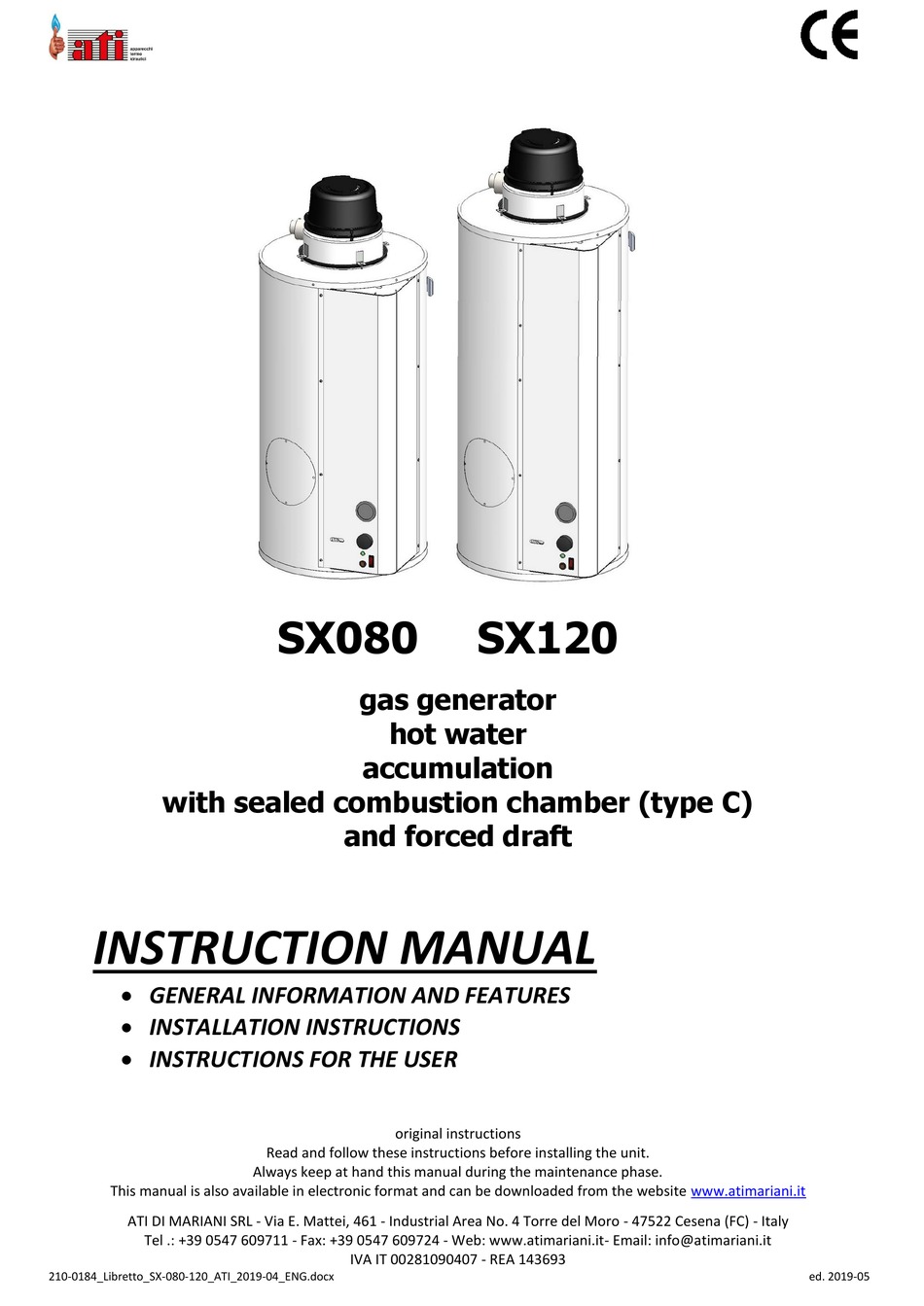

  • Page 1 SX080 SX120 gas generator hot water accumulation with sealed combustion chamber (type C) and forced draft INSTRUCTION MANUAL  GENERAL INFORMATION AND FEATURES  INSTALLATION INSTRUCTIONS  INSTRUCTIONS FOR THE USER original instructions Read and follow these instructions before installing the unit.
  • Page 2 GENERAL INFORMATION AND FEATURES ed. 2019-05 210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx...

  • Page 3: Table Of Contents

    GENERAL INFORMATION AND FEATURES INDEX 1. SYMBOLS IN THE MANUAL ................4 2. GENERAL WARNINGS ..................4 3. TRANSPORTATION, STORAGE AND DISPOSAL OR RECYCLING ......5 4. CONTENT, WEIGHT AND DIMENSIONS OF PACKAGE ........5 5. CATEGORY AND CLASSIFICATION DEVICE ............6 6.

  • Page 4: Symbols In The Manual

    GENERAL INFORMATION AND FEATURES 1. SYMBOLS IN THE MANUAL In reading this book, particular attention should be given to the parts marked with symbols represented: DANGER! NOTE! WARNING! serious danger to the life and limb Tips for users Possible dangerous situation for the product and the environment 2.

  • Page 5: Transportation, Storage And Disposal Or Recycling

    Among these it is placed (3) the hydraulic safety group Inside, over the appliance, there is an envelope (2) containing • this manual • the standard warranty certificate • the LPG conversion kit Dimensions and Weights packed unit SX080 SX120 Width Depth Height Weight ed. 2019-05 210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx...

  • Page 6: Category And Classification Device

    C32 The air intake and evacuation of the combustion products takes place by means of a vertical conduit coaxial. 6. TECHNICAL DATA SX080 SX120 healthcare efficiency class Load Profile Nominal tank capacity nominal heating capacity Q...

  • Page 7: Dimensions

    GENERAL INFORMATION AND FEATURES 7. DIMENSIONS SX080 SX120 1 cold water inlet 1/2 " ninety 2 hot water outlet 1/2 " 3 gas inlet 3/8 " 4 flange inspection and cleaning Ø 85 football ed. 2019-05 210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx...

  • Page 8: Description Functional And Construction

    GENERAL INFORMATION AND FEATURES 8. DESCRIPTION FUNCTIONAL AND CONSTRUCTION The function of this device is to generate hot water through the heat exchange between the combustion products of the burner and the water present in the storage tank. The combustion takes place in a completely sealed with respect to the device that contains, by withdrawing the air required for combustion from the outside and discharging the products of combustion itself always outside.
  • Page 9 GENERAL INFORMATION AND FEATURES Magnesium anode: The device is protected against corrosion by galvanic currents from a magnesium anode. In order to prolong the life of the appliance, this is to be replaced every year. The anode is located in the inspection flange, placed in the front part of the tank A.

  • Page 10: Wiring

    GENERAL INFORMATION AND FEATURES 10. WIRING THE: Line Neutral THE: Switch red lock lamp RESET: reset button Thermostat for temperature adjusting DHW Power indicator VG1: valve GAS Water Safety thermostat ACC: Ignition electrode ION: Detection electrode Frequency Ventilator Air pressure Fuse 4 A fast type 250 V Fuse 2 A quick type 250 V ed.

  • Page 11: Local Regulations, And Installation Of Safety

    INSTALLATION INSTRUCTIONS 11. LOCAL REGULATIONS, AND INSTALLATION OF SAFETY LOCAL REGULATIONS In the installation the local regulations must be observed regarding:  Fire fighters  Gas Company  power Company  Office hygiene and health SAFETY RULES Do not perform any cleaning or maintenance work without turning off the water heater and interrupting power supply. E 'absolutely forbidden to operate the water heater with protection of electrical parts or disassembled safety equipment excluded.

  • Page 12: Installation

    INSTALLATION INSTRUCTIONS 12. INSTALLATION TO AVOID DAMAGE THE TRANSACTION MUST BE CARRIED OUT BY A QUALIFIED Before installing the appliance, ensure that the nominal supply voltage is 230 V - 50 Hz.  Make sure that the electrical system is adapted to deliver, in addition to the operating current required by the unit, also the necessary current for powering appliances and equipment already in use.

  • Page 13: Installation Cover Smoke Extraction

    INSTALLATION INSTRUCTIONS 14. INSTALLATION COVER SMOKE EXTRACTION The upper part of the mantle has four mounting holes for the cover, which allow installations oriented at 90 ° from one another. If it is necessary an intermediate position proceed as follows: placing the cap on the hot water generator, with the flue outlet and the air inlet in the desired direction pierce the upper mantle with a tip 4 mm, in correspondence with the cap 4 of the mounting brackets screwing without tightening the screws for fastening to the cap.
  • Page 14 INSTALLATION INSTRUCTIONS ASKITSO CODE To increase the discharge length is DRAIN HORIZONTAL KIT necessary to purchase special extensions. configuration TYPE C12 Available accessories: The standard kit is 1 mt., And contains: • 1 coaxial pipe Ø38 / 60 CODE DESCRIPTION •...

  • Page 15: Hydraulic Connections

    INSTALLATION INSTRUCTIONS 16. HYDRAULIC CONNECTIONS The device is protected against corrosion by galvanic currents from a magnesium anode. In order to prolong the life of the appliance, it is mandatory to replace at least once every 12 months. The anode is located in the inspection flange, placed in the front part of the tank Furthermore, the appliance will last longer if they are met, as provided by D.

  • Page 16: Trunk Gas

    INSTALLATION INSTRUCTIONS 17. TRUNK GAS Connect the gas supply line of the thread present on the generator by means of a removable rigid connector. The gas connection is 3/8 " It is recommended to mount along the pipe, in the vicinity of the generator and in an easily accessible location, a faucet interception manual gas.

  • Page 17: Gas Power Transmission

    INSTALLATION INSTRUCTIONS 18. GAS POWER TRANSMISSION To change the type of gas supply is necessary to exclusively use the special conversion kit supplied by the manufacturer: code Description AKGPLC methane G20 LPG G30 / 31 AKMETC from LPG G30 / G20 31 to methane The transformation of the gas type of power should only be done by qualified personnel.

  • Page 18: Electrical Connections

    INSTALLATION INSTRUCTIONS 19. ELECTRICAL CONNECTIONS The machine is sold without mains plug: CPU must be mounted to the first installation. Connect electrically to a power network at 230V-50Hz, single phase, and to an effective grounding. E 'need to perform a polarized connection.

  • Page 19: Recommendations For You

    INSTRUCTIONS FOR THE USER 21. RECOMMENDATIONS FOR YOU • Keep this booklet for future reference. The booklet should be kept near the stove. • For free verify the correct installation of the device, the end user can directly contact one of the closest authorized service centers.

  • Page 20: Shutdown

    INSTRUCTIONS FOR THE USER it can still be present air in the gas pipe. In this case, wait about a minute, unlock the device by pressing the illuminated button to start a new ignition cycle. Repeat until the residual air in the gas pipe is not exhausted and the ignition is regular. IMPORTANT: with the exception of the previous case, the ignition of the indicator light of the bright red button F block generally indicates a failure or a malfunction.

  • Page 21: Possible Operating Faults

    INSTRUCTIONS FOR THE USER 25. POSSIBLE OPERATING FAULTS Possible replacements of components shall be performed by personnel authorized by the manufacturer The control device will lock out without controlling the ignition.  the control apparatus flame detection circuit is faulty and the control self-test does not allow the continuation of the cycle ...

  • Page 22: Correct Disposal Of This Product

    INSTRUCTIONS FOR THE USER 27. CORRECT DISPOSAL OF THIS PRODUCT PRODUCT IN COMPLIANCE WITH EU DIRECTIVE 2012/19 / EU-D.Lgs.49 / 2014 pursuant to art. 26 of Legislative Decree 14 March 2014, n. 49 "Implementation of Directive 2012/19 / EU Waste Electrical and Electronic Equipment (WEEE)"...
  • Page 23 INSTRUCTIONS FOR THE USER ed. 2019-05 210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx...
  • Page 24 ATI DI MARIANI SRL Via E. Mattei, 461 Zona Ind. No. 4 Torre del Moro 47522 Cesena (FC) - ITALY Tel. 0547 609711 Fax 0547 609724 www.atimariani.it info@atimariani.it ed. 2019-05 210-0184_Libretto_SX-080-120_ATI_2019-04_ENG.docx...
