CommScope SYSTIMAX 360 iPatch 1100 Instruction Sheet page 2

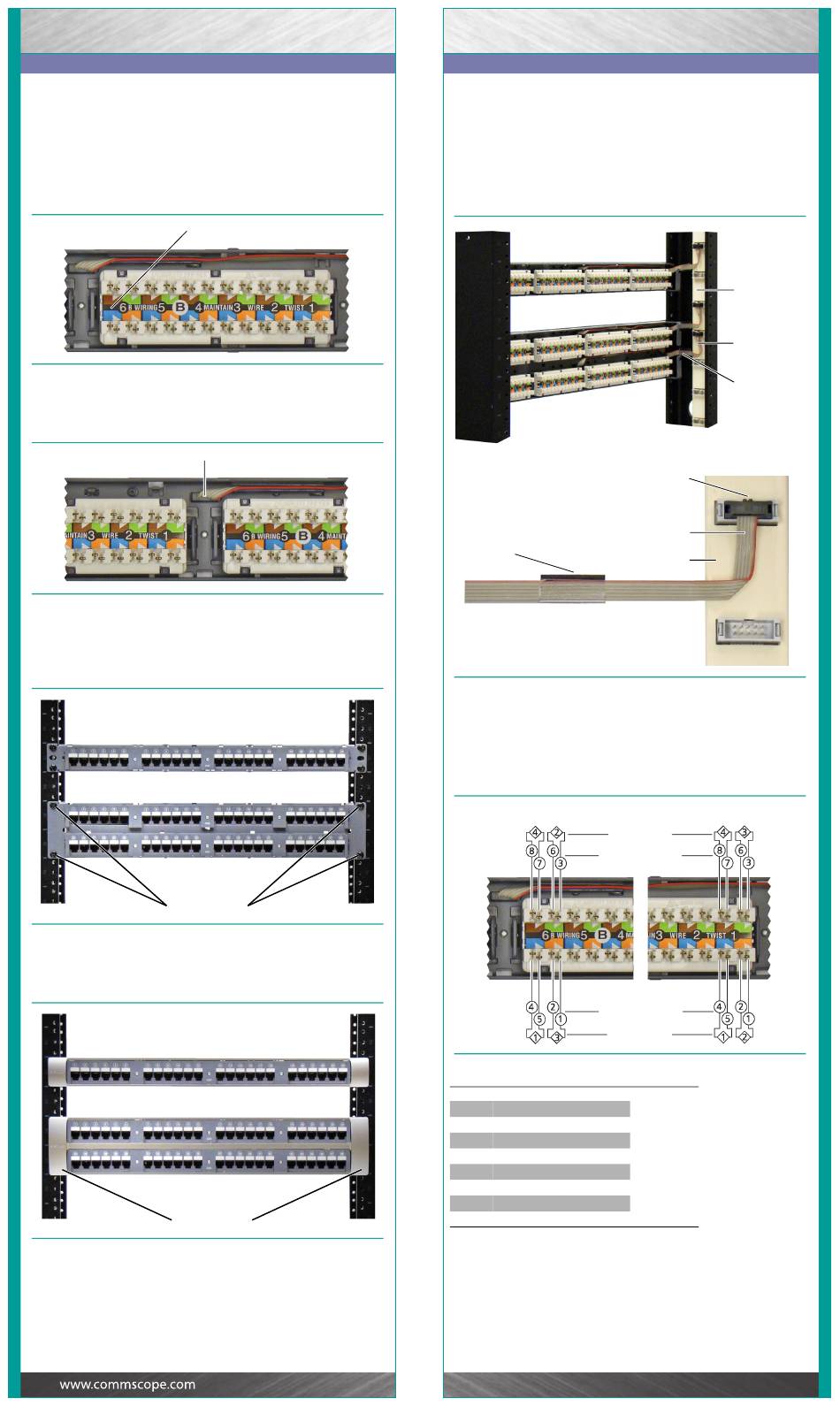

Installing Panels
1 Panels are shipped with the cabling labels for B wiring already
installed. If the installation uses A wiring, insert the cabling
labels for A wiring in the slots on the back of the panels. Make
sure that the labels are oriented with the right side up (Figure 1).
Figure 1 Inserting the Cabling Label
2 Make sure that the panel bus jumpers are firmly connected to
the panels (Figure 2).
Figure 2 Checking the Panel Bus Jumper
Check the panel bus jumper here.
3 Install the panels on the rack using the 4 screws provided
(Figure 3). Be careful not to pinch the panel bus jumpers
between the panels and the rack.
Figure 3 Mounting the Panels
Mounting screws
4 Snap the decorative bezels onto the front of the panels.
(Figure 4).
Figure 4 Installing the Decorative Bezel
Decorative bezel
5 Remove the adhesive backing from the cable retainers on the
panel bus jumpers.
6 Connect the panel bus connector on each jumper to the
nearest connector on the panel bus, folding the jumper as
shown (Figure 5). Press the cable retainers against the rack.
Cabling label
Instruction Sheet:
SYSTIMAX 360™ iPatch
Note: The connector is keyed. The polarized tab on the jumper
connector fits into the opening in the header connector on the
panel bus.
For 2U panels, connect both panel bus jumpers.
Important:
Figure 5 Connecting and Routing the Panel Bus Jumpers
Cable
retainer
Cabling Panels
Figure 6 identifies the IDC (position) numbers and pair numbers for
cabling panels. Table 1 indicates the conductor colors for
EIA-T568A and EIA-T568B wiring applications.
Figure 6 Cable IDC Numbers and Pair Numbers—Rear View of Panel
A Wiring
Position Numbers
Position Numbers
Table 1 Cable Terminations
IDC# A Wiring B Wiring
1 W/BL W/BL
2 BL/W BL/W
3 W/G W/O
4 G/W O/W
5 W/O W/G
6 O/W G/W
7 W/BR W/BR
8 BR/W BR/W
1 Cable each panel. Use a Termination Manager to terminate
each 4-pair cable, following the Termination Manager
installation instructions provided with the panel.
Note: The Termination Manager provides pair-twist control and
strain relief features to the rear termination area of the panel.
®
1100 Type Panel
Panel bus
Panel bus
jumper
Cable retainer
Polarized tab
Panel bus jumper
Panel bus
Fold the panel bus
jumper as shown.
B Wiring
Pair Numbers
Pair Numbers
continued
