Condor GD-3500 User Instruction Manual

CONDOR
GD-3500 GARAGE DOLLY
®
STOP! WARNING: READ THIS FIRST!
First read and understand the instruction manual and product labels for important safety, set-up and troubleshooting information. If you
have problems setting up or using the CONDOR® GD-3500 Garage Dolly Height Assist, contact customer service at (815) 754-7418 or
contact us via email @ www.condor-lift.com. The CONDOR® GD-3500 Garage Dolly Height Assist is not intended for use by children.

Assembly Instructions:

to assemble your CONDOR® GD-3500 Garage Dolly Height Assist before beginning. In the unlikely event that you find a part damaged
or missing, please call customer service @ #1-815-754-7418.

Component Photo

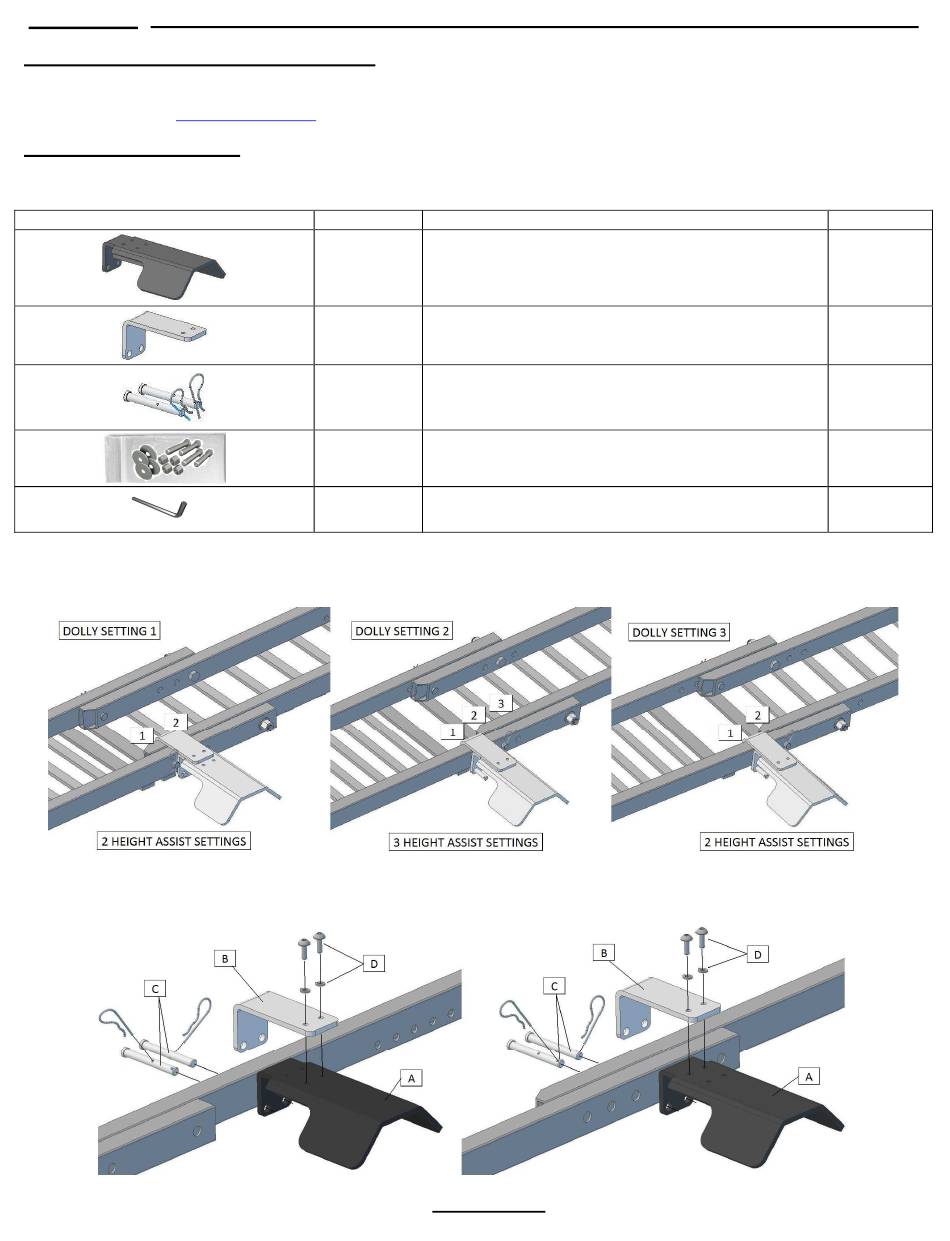

1. Determine the best placement of the Height Assist based on how your vehicle is positioned in the Dolly. There
are multiple placement options for the Height Assist for each length setting of the Dolly.
2. Depending on the location chosen, the Height Assist should be assembled to fit on top of either (1) side extrusion
or (2) side extrusions. Attach Main Bracket (A) to Bracket 2 (B) using the button head screws and lock washers
provided (D). Tighten screws using the included Hex Key tool (E).
3. Secure Height Assist in place using the Pins UNDERNEATH the side extrusions. Secure pins using clips
provided.
Remove all parts from shipping box. Check the parts below to make sure you have all the parts needed
Item
A
B
C
D
E
HEIGHT ASSIST USER INSTRUCTION MANUAL
Component Description
GD-3500 Height Assist Bracket Main
(GD-H-ASSIST-1-ASM)
GD-3500 Height Assist Bracket 2
(GD-H-ASSIST-2)
GD-3500 Height Assist Pin w/ Clips
(GD-PIN3)
Hardware Assortment
[(4) 5/16"x1" Button Head Screws, (4) 5/16" Lock
Washer, 3/16" Hex Key Tool]
3/16" Hex Key
QTY
2
2
4
Varies
1
