Dynajet Power Commander III Installation Instructions

2008 triumph speedmaster

Advertisement

2008 Triumph Speedmaster

Parts List

1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
2
O2 eliminators
1
Alcohol Swab
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i520-411
www.powercommander.com
Installation Instructions

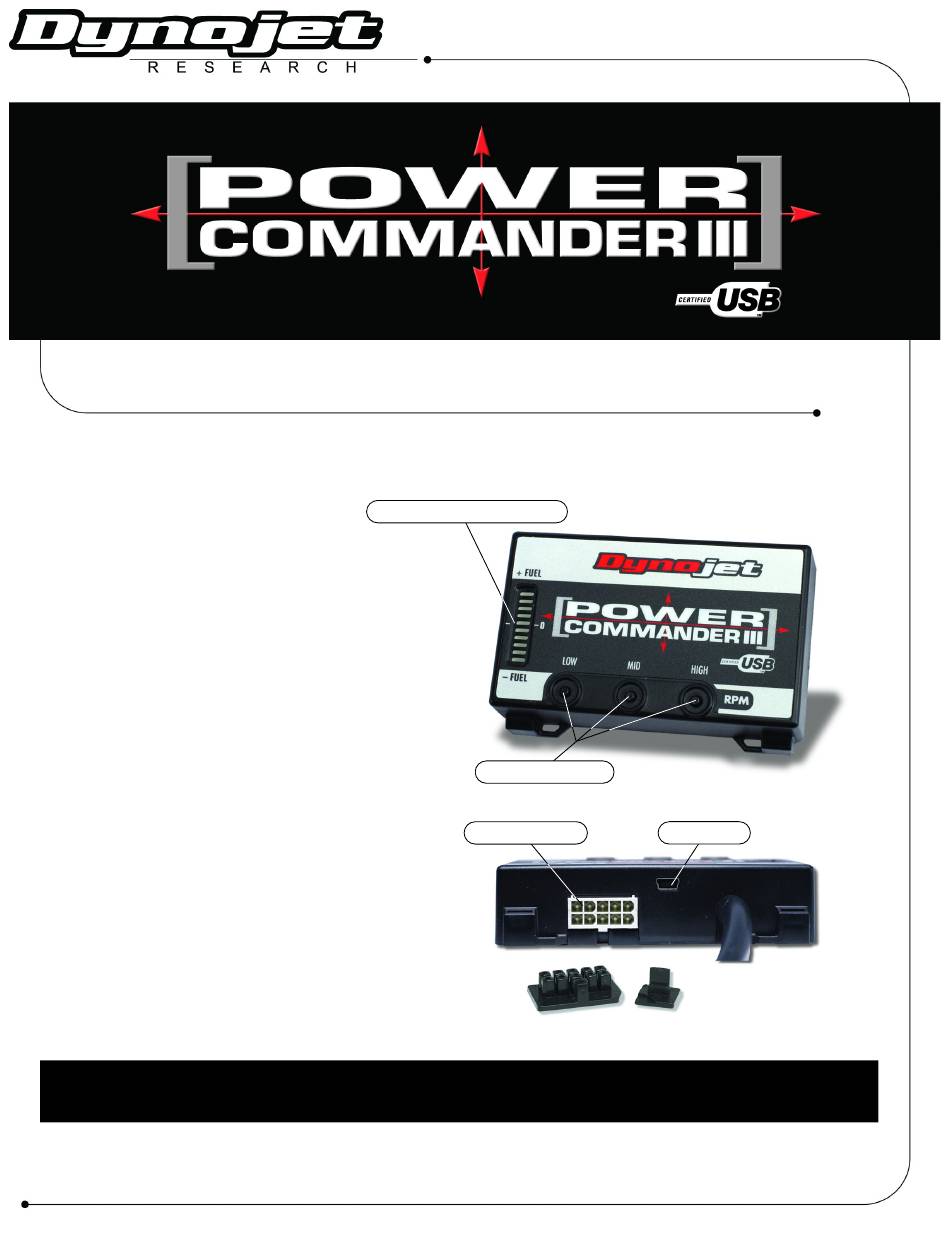

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2008 Triumph Speedmaster - PCIII USB - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Commander III and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynajet Power Commander III

  • Page 1 2008 Triumph Speedmaster Installation Instructions Button Adjustment Display Parts List Power Commander USB Cable CD-ROM Installation Guide Power Adapter Power Commander Decals Dynojet Decals Velcro Strip ® Faceplate Buttons O2 eliminators Alcohol Swab Expansion Port USB Port You can also download the Power Commander software and latest maps from our web site at: www.powercommander.com...
  • Page 2 Remove the seat. Remove the cover to the left side of the airbox intake (Fig. A) Remove cover Remove the left side cover (Fig. B). Remove cover PCIII harness Lay the PCIII under the seat area and route the harness out the left side of the bike.
  • Page 3 PCIII ground wire Attach the ground wire of the PCIII harness to the negative side of the battery (Fig. D) Route the PCIII harness over to the right side of the bike. Run the har- ness to the rear of the throttle bodies (Fig.
  • Page 4 PCIII connectors Plug the PCIII harness in-line of the stock wiring harness (Fig. G). Locate the Throttle Position Sensor on Stock connectors the left side of the throttle bodies. Using the supplied wire tap crimp onto the GREEN wire with the YELLOW stripe.
  • Page 5 Locate the O2 sensors connections which are above the oil cooler. These are BLACK 4 pin connectors. You can follow the wires from the O2 sensors up to this location. Unplug each of the O2 sensor connec- tions. Plug the Dynojet O2 eliminators into the wiring harness.
