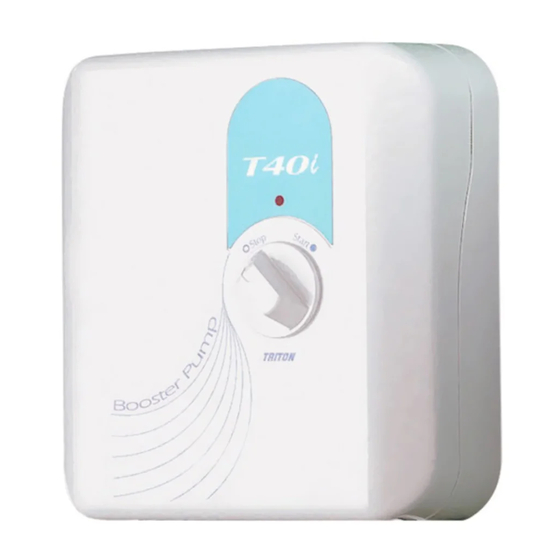

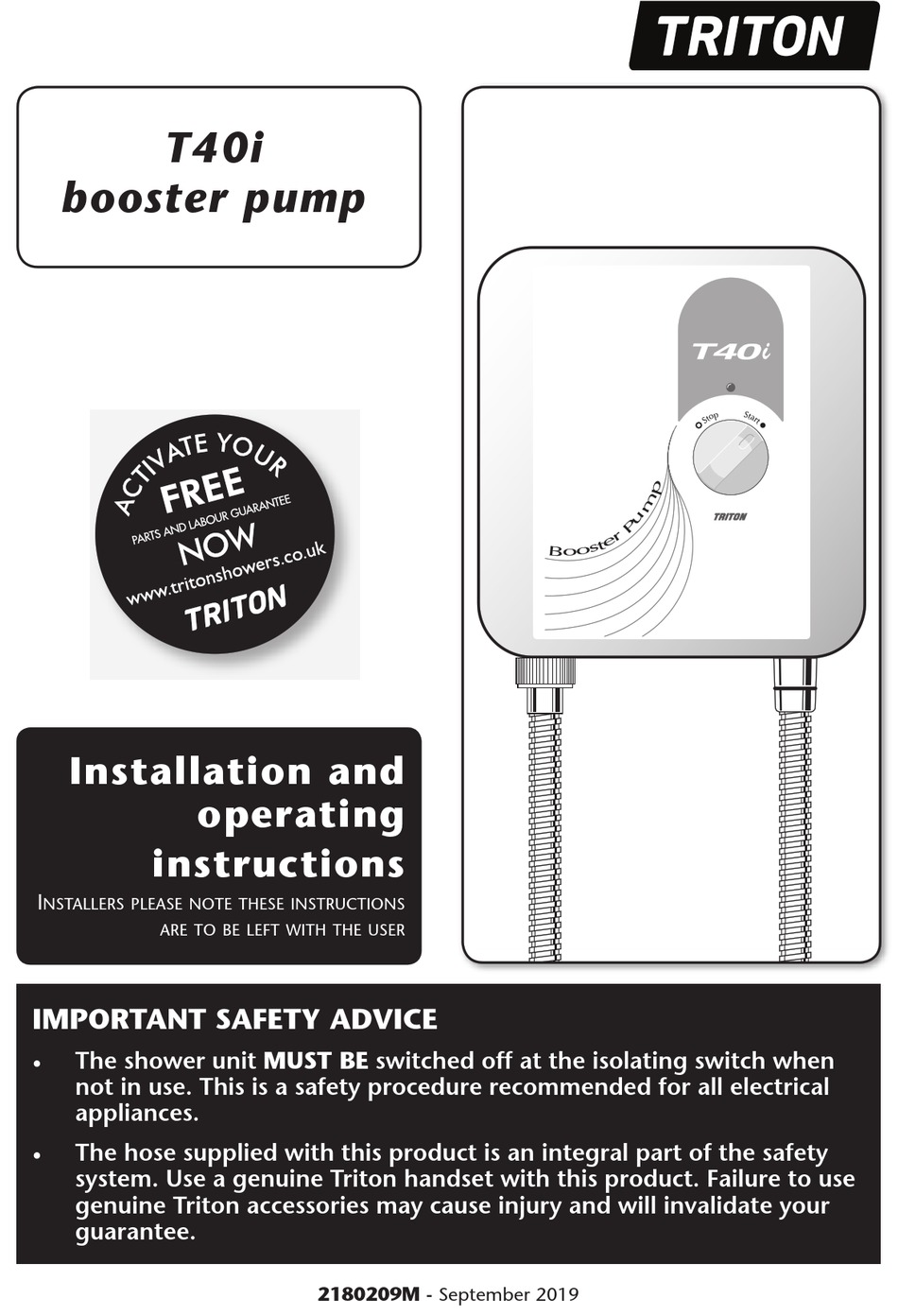

T40i
booster pump
Installation and
operating
instructions
I
nstallers please note these InstructIons
are to be left wIth the user
IMPORTANT SAFETY ADVICE
The shower unit MUST BE switched off at the isolating switch when
not in use. This is a safety procedure recommended for all electrical
appliances.
The hose supplied with this product is an integral part of the safety
system. Use a genuine Triton handset with this product. Failure to use
genuine Triton accessories may cause injury and will invalidate your
guarantee.
2180209M - September 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T40i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Triton T40i

  • Page 1 • The hose supplied with this product is an integral part of the safety system. Use a genuine Triton handset with this product. Failure to use genuine Triton accessories may cause injury and will invalidate your guarantee. 2180209M - September 2019...
  • Page 2: Table Of Contents

    InstructIons are to be left wIth the user To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone:...
  • Page 3: Important Safety Information

    T40i IMPORTANT - GENERAL GUIDANCE NOTES GENERAL ELECTRICAL Products manufactured by Triton are safe The installation must comply with BS 7671 and without risk provided they are ‘Requirements for electrical installations’ installed, used and maintained in good (IEE wiring regulations) or any particular...
  • Page 4: Introduction

    Outlet connection – ½” BSP male thread. long, trouble-free life from your booster pump. Entry Points The T40i booster pump is designed to improve the flow rate through an existing bath/tap mixer Water – bottom left. valve. It is NOT designed to pressurise the water Cable –...
  • Page 5: Key To Main Components

    T40i MAIN COMPONENTS Fig.1 1 Top cable entry 8 Motor 2 Cover screw fixings 9 Pump assembly 3 Terminal block 10 Inlet pipe 4 Outlet connection 11 Outlet pipe 5 Wall screw fixings 12 Inlet connection 6 Rear cable entry...
  • Page 6: Site Requirements - Water

    • DO NOT use jointing compound on any pipe fittings for installation. NOTE: The outlet of the T40i pump acts as a vent and must not be connected to any form of tap or fitting that is NOT recommended by...
  • Page 7: Site Requirements - Electrical

    1mm² twin and earth cable will be adequate. If in any doubt consult a qualified electrician or contact Triton Customer Service for advice. WARNING The unit MUST NOT be positioned where it will be subjected to freezing conditions.
  • Page 8: Fitting To The Wall

    • If top entry position is chosen, the cut-out in the backplate must be removed (fig.7). • Loosely connect the supplied flexible hose to the T40i inlet connection and the mixer valve outlet. Using the backplate as a template, hold it against the wall, making sure there is some slack in the hose and mark the position of the fixing holes (fig.8).
  • Page 9: Hose Connections

    • Screw one end of the supplied flexible hose to the T40i inlet connection using one of the sealing washers to seal the joint. • Screw the other end of the flexible hose to the...
  • Page 10: Electrical Connections

    T40i is to be installed, to conform to current IEE regulations. The use of connections within the unit to supply power to other equipment i.e.
  • Page 11: Replacing The Cover And Testing

    T40i REPLACING THE COVER AND Fig.12 TESTING PROCEDURE Make sure the switch spindle adaptor ‘dogs’ are positioned as shown (fig.12). Position the control knob on the cover to ‘stop’ (fig.15). Offer the cover to the unit and plug the loose neon into the bracket that is located inside the cover (fig.13).
  • Page 12: Operating

    If the T40i pump is not used for lengthy periods, it is recommended to turn on the water at the mixer valve/tap then switch the pump on for two or three minutes periodically to prevent the motor shaft seals from seizing.
  • Page 13: Spare Parts

    T40i SPARE PARTS Ref. Description Part No. 1 Microswitch ..........22012460 2 Switch assembly ......... 82500130 3 Outlet pipe assembly ........7052027 4 Inlet pipe assembly ........7052443 − Cover assembly ........... 80400020 − Flexible hose (chrome) ........ 28100240...
  • Page 14: Fault Finding

    It is advised all electrical maintenance/repairs to the unit should be carried out by a suitably qualified person. In the unlikely event of a fault occurring please contact Triton Customer Service. DO NOT remove the shower from the installation.
  • Page 15: Water/Cable Entry Points Diagram

    Cable Entry Points WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and the compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following schemes:...
  • Page 16 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2019...
