Codyson CD-4820 User Manual

Digital
Hide thumbs

Advertisement

Table of Contents

Lengthened tank
Stronger transducer
5 Recycle digital timer
Heater
Circuit protector
Radiator Fan
Wet-proof PCB
Three separable wires
Industry IC
Strong plastic housing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-4820 and is the answer not in the manual?

Questions and answers

Related Manuals for Codyson CD-4820

Summary of Contents for Codyson CD-4820

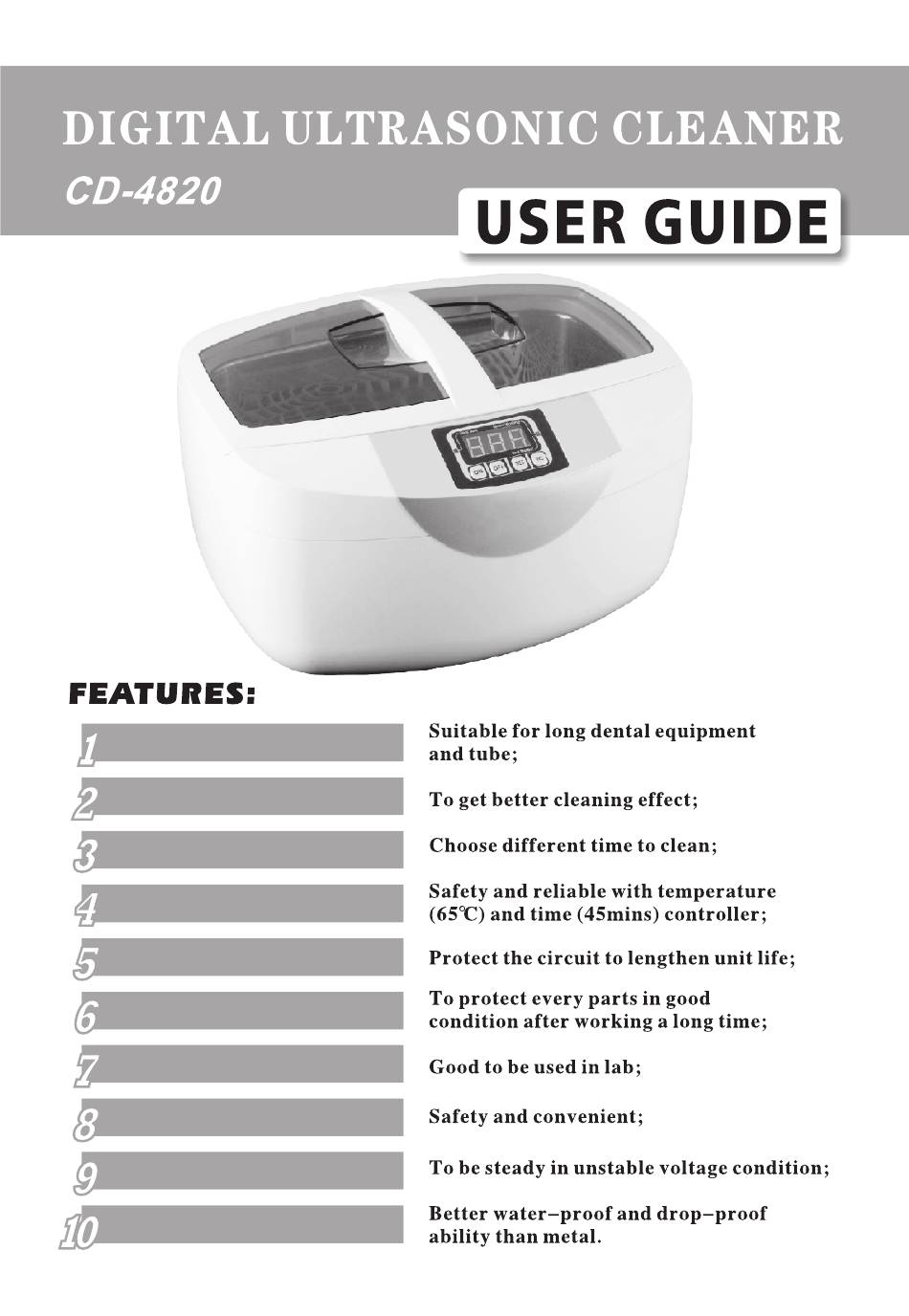

  • Page 1 Lengthened tank Stronger transducer 5 Recycle digital timer Heater Circuit protector Radiator Fan Wet-proof PCB Three separable wires Industry IC Strong plastic housing...

  • Page 2: Table Of Contents

    INTRODUCTION No special solution required, only using plain tap water Ultrasonic cleaning technology uses water as media, makes high frequency vibration releases billions of small bubbles. These bubbles breaking with power, which dropping dirt from cleaning articles safely and effectively. Definition of Main Feature With 5 circle time setting and heating devise, this machine is our new generation, which has bigger capacity (2600ml), and stronger cleaning power (160w) while...

  • Page 3: Safety Instructions

    SAFETY INTRODUCTIONS DANGER- To reduce the risk of electrocution: Unplug this unit Do not immerse the immediately after unit into water or using. other liquid. Keep the unit in a safe place to avoid Do not use while falling into water or bathing.
  • Page 4 SAFETY INTRODUCTIONS WARNING-To reduce the risk of burn or injury to persons Keep the unit and the cord away heated sur- The unit should never faces, and place it on be left unattended the dry and level when plugged in. surface.

  • Page 5: What Can Not Be Cleaned

    WHAT CAN NOT BE CLEANED Maybe the less rigidity of hawksbill or coral will be BIJOUTERIE scrubbed, color changed or brightness lost caused by Hawksbill, Pearl, emerald, the rubbing of one object or surface against another. Ivory, Coral, Agate. Be broken off will be happened to the unsolid point of PRECIOUS METAL the soldering and binding items by ultrasonic cleaning.

  • Page 6: Suggested Applications

    (5). Restaurant: Cleaning and maintaining high-quality engraved tableware like handle of knives, forks as well as the filter of the coffee machine, incredible cleaning effect can get. Remark: To oxidative silver or tin tableware , it can't be removed with plain water. Chemical method is used for this problem.

  • Page 7: Dirt Elimination Processes

    DIRT ELIMINATION PROCESSES Many tiny bubbles are Bubble are imploded The dirt splits into tinys created when ultrasonic constantly under the and separate from the sound is passed through ultrasonic. item to create cleaning liquid. result FEATURES AND ACCESSORIES...

  • Page 8: Regarding 5 Digital Times Choosing

    REGARDING 5 DIGITAL TIME CHOOSING It will automatically display 180S when power at the first time, It is the most common cleaning time. Pressing ON, it begins cleaning. The time displayed is the time left. When the time " " is displayed, the unit will automatically stop. Pressing SET, there is a new time displayed, every time press SET, it will change to the next time display.

  • Page 9: Four Different Ways Of Cleaning

    FOUR DIFFERENT WAYS OF CLEANING GENERAL CLEANING Only using normal tap water Put the item to be cleaned on the mesh screening, then fill the water. Ensure the item is immerged in the water; the water level should above the "MIN-" marking, but does not exceed the"MAX-"...
  • Page 10 PUT A LITTLE LIQUID WASH SOAP TO ENHANCE CLEANING: Used to clean the knife, fork, spoon which with too much oiled dirt. (If with less oiled dirt, can according to Put the item on the mesh screening, and then put the mesh screening into the stainless steel tank.

  • Page 11: Operation Instructions

    How to use mesh screening Using mesh screening can avoid the attrition between the item and stainless steel tank, it also can reduce the attrition between items. When put the item and mesh screening into the tank, the unit also can clean the mesh screening, therefore, the mesh screening can absorb 15% ultrasonic energy.
  • Page 12 Press "ON" button to start cleaning while the right green indication light is on. During cleaning, you can hear the "BUZZ" voice, it means the unit is working . When the timer counts down " ", the unit will automa- tically stop.

  • Page 13: User Maintenance

    USER MAINTENANCE This machine has taken several measurements to protect the circuit, but if working without water (over 20 seconds) will short the life of the machine. Damage will be occurred if works without water. This machine has a circuit protecting it when over heat. Stop 15 minutes if working for 3 working cycles continuously to prolong the life of the machine is recommended.
