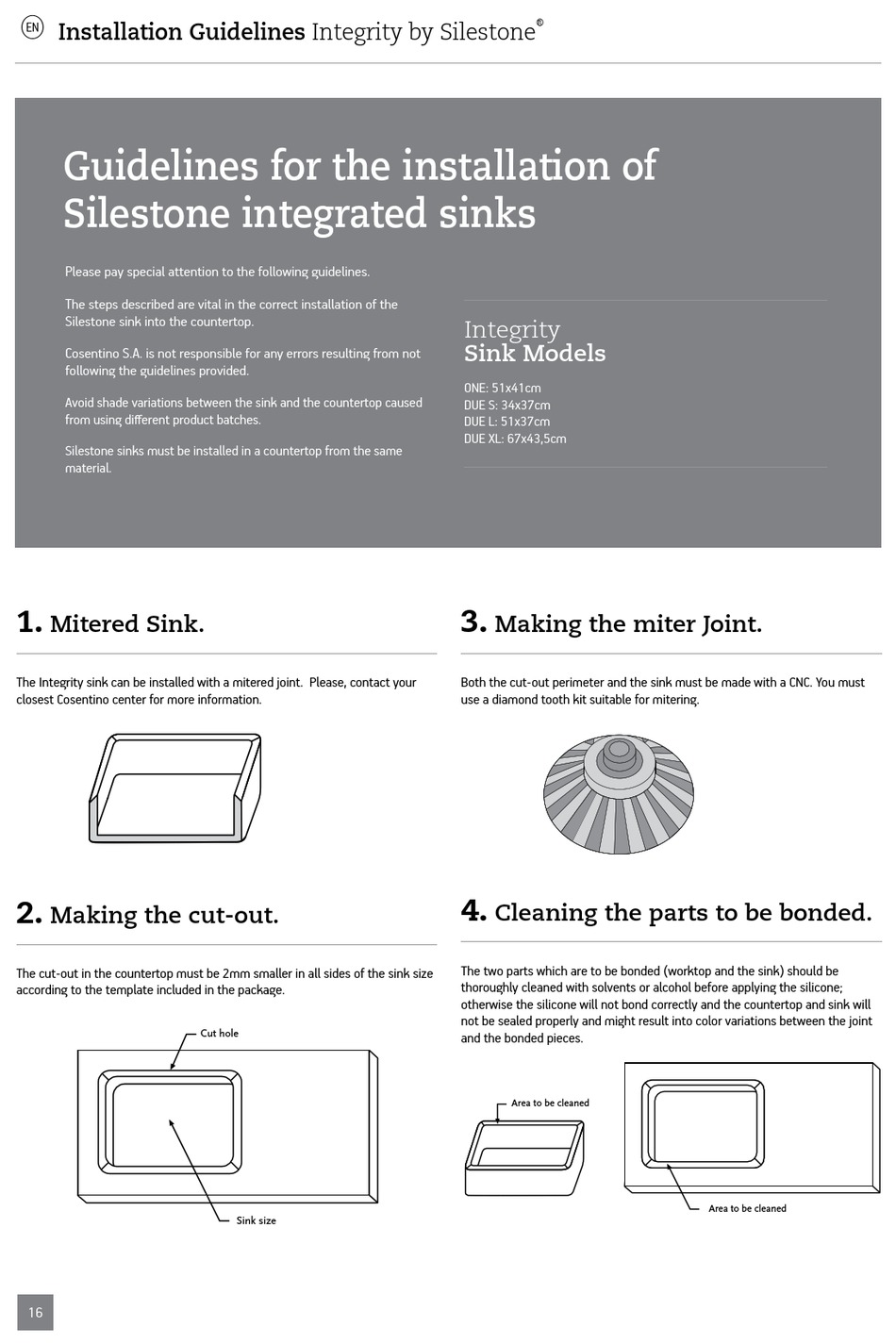

Installation Guidelines Integrity by Silestone
Guidelines for the installation of
Silestone integrated sinks
Please pay special attention to the following guidelines.
The steps described are vital in the correct installation of the
Silestone sink into the countertop.
Cosentino S.A. is not responsible for any errors resulting from not
following the guidelines provided.
Avoid shade variations between the sink and the countertop caused
from using different product batches.
Silestone sinks must be installed in a countertop from the same
material.
1.
Mitered Sink.
The Integrity sink can be installed with a mitered joint. Please, contact your
closest Cosentino center for more information.
2.
Making the cut-out.
The cut-out in the countertop must be 2mm smaller in all sides of the sink size
according to the template included in the package.
16
Cut hole
Sink size
®
Integrity
Sink Models
ONE: 51x41cm
DUE S: 34x37cm
DUE L: 51x37cm
DUE XL: 67x43,5cm
3.
Making the miter Joint.
Both the cut-out perimeter and the sink must be made with a CNC. You must
use a diamond tooth kit suitable for mitering.
4.
Cleaning the parts to be bonded.
The two parts which are to be bonded (worktop and the sink) should be
thoroughly cleaned with solvents or alcohol before applying the silicone;
otherwise the silicone will not bond correctly and the countertop and sink will
not be sealed properly and might result into color variations between the joint
and the bonded pieces.
Area to be cleaned
Area to be cleaned
