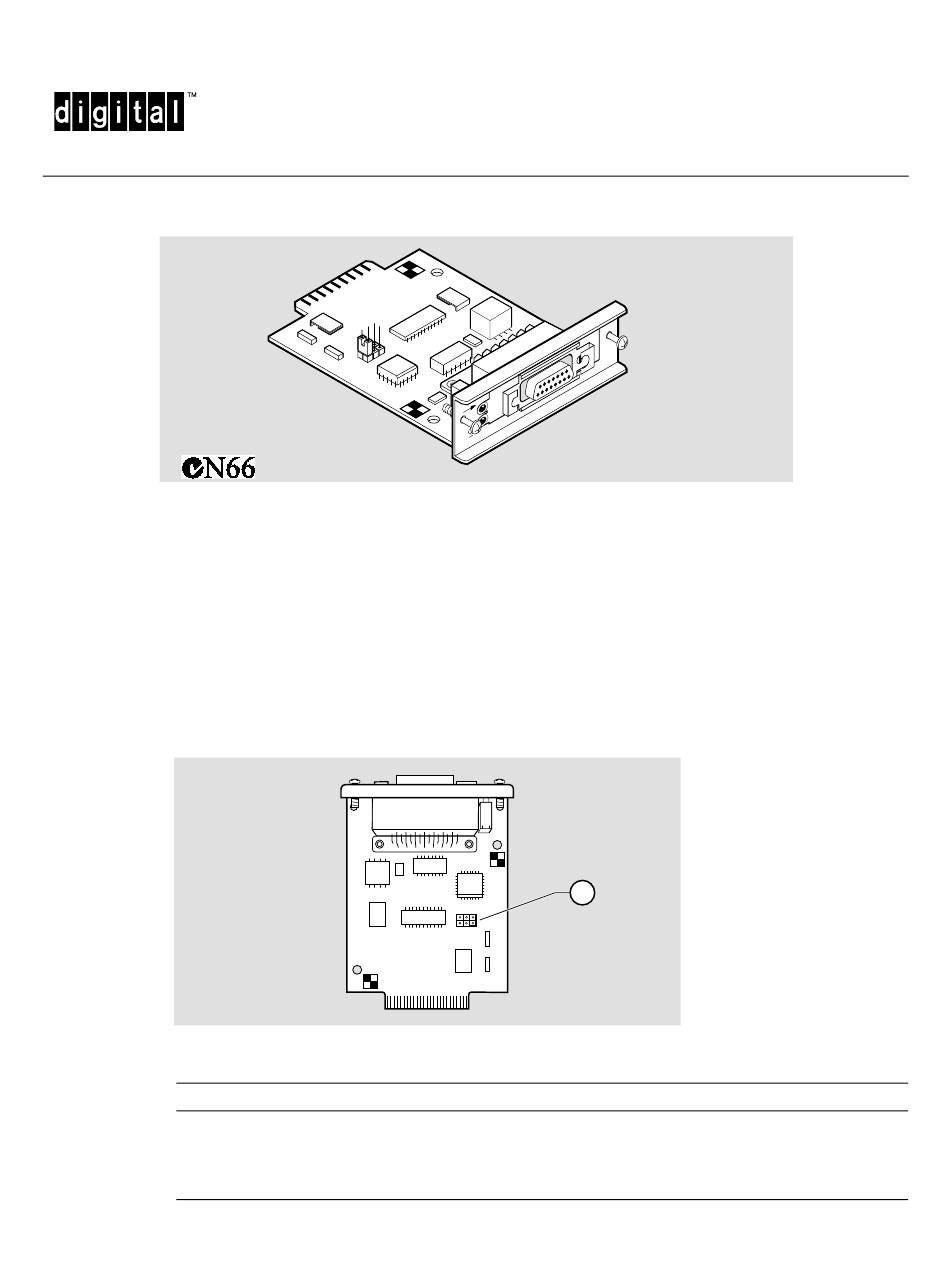

Installing and Cabling the AUI MM-10 (DLXAU)
Introduction
The AUI MM-10 is part of the MM-10 product family (which also includes the 10BaseFL, 10BaseT, 10Base2, and
Reverse AUI). It connects a host module such as the DIGITAL MultiSwitch Hub 624T directly to a Media
Attachment Unit (MAU) or to an end device via up to 50 meters of AUI cable. The MM-10 has jumpers that control
the MM-10 configuration, such as monitoring transmit or receive data.
Configuring Jumpers on the AUI MM-10 Option Card
The MM-10 jumper is set to the most commonly-used configuration. For special applications or troubleshooting,
you may wish to reconfigure the jumper setting. Refer to the following figure and table.
AUI MM-10 Jumper Locations
Item
1
D L
Jumper
Description
ACT —>
Sets Activity LED to blink on for:
• RX = receive packets only
• TX = transmit packets only
• BOTH = all packets
M A
U -
X A
1
NPB-0804-97F
EK-DLXAU-IM. A01
NPB-0812-97F
Default
BOTH
