emz smart Sol nano Quick Start Manual

Q u i c k
1
• Open the case and install it at the provided place.

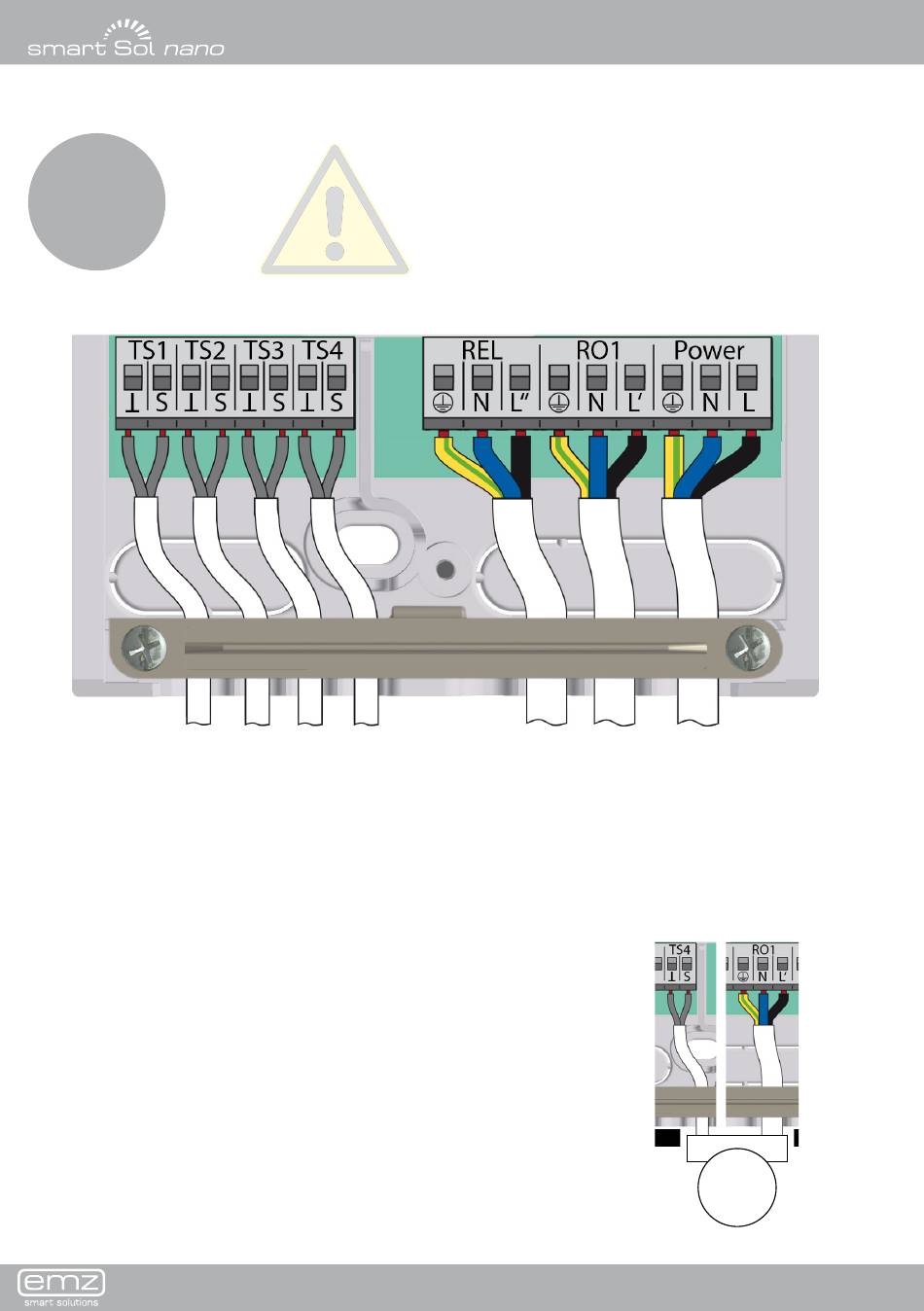

• Install and connect all power supply lines. (The
connection diagram may deviate from the illustration.)
• TS terminals on the left terminal block:
Inputs for Pt 1000 sensors,
and/or TS4: PWM signal for high-effi ciency pumps
• REL terminals on the right terminal block:
Relay, mainly for boiler control.
• RO terminals on the right terminal block:
Triac output for the control of pumps and valves.
• Right terminals: Mains connection.
• Install strain relief and close the case.
emz-Hanauer GmbH & Co.KGaA
Telephone + 49 - (0) 94 33 - 89 8 - 0 • Telefax - 188 • info@emz-hanauer.com
Differential temperature controller for solar thermal
plants for drinking water heating and heating support
S t a r t
This manual only provides a schematic overview
of the commissioning of the controller.
The installation and operating manual must be read; all
safety instructions and information must also be observed!
Improper connection or incorrect handling may damage the
device and the heating system as well as endanger persons.
• Siemensstraße 1
G u i d e
Signal Signal
• D - 92507 Nabburg
Supply Supply
HE
pump
(PWM)
