8.1 System Conventions:

All information and data displays will appear two dimensional in configuration and
flat. All data entry points or operational features will appear three dimensional in
configuration and raised or depressed in appearance depending on their
operational position.

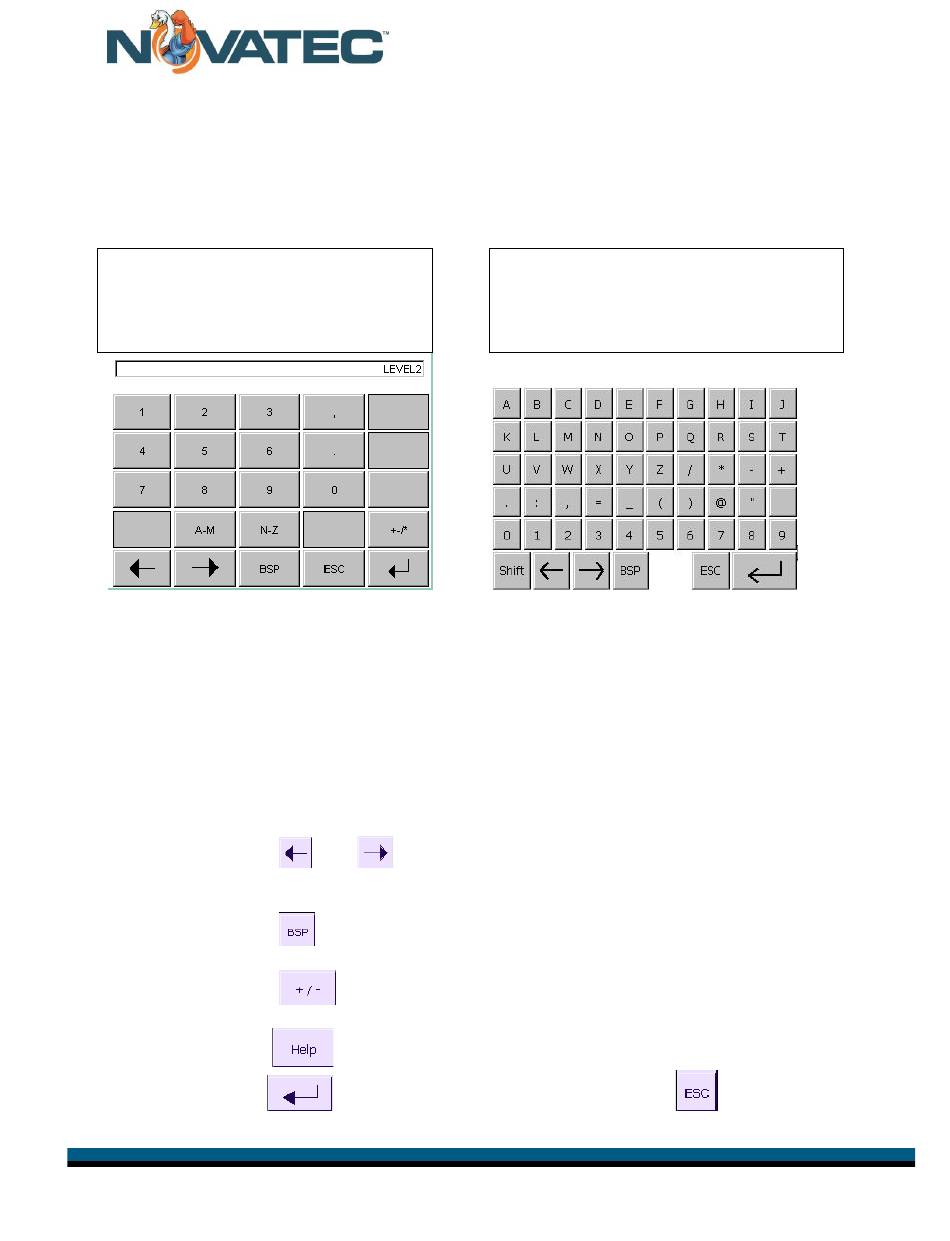

Numerical Entries: When you touch an IO
field on the HMI device touch screen that
requires only a numerical entry (Password,
Temperature, number of seconds etc.) the
following keyboard will appear.
Proceed as follows:
1. Touch the relevant IO field on the screen.
The numerical screen keyboard opens and displays the current value.
2. Set the value.
You can only operate keys which are visualized in 3D format. The type
value to be entered determines whether a key is enabled or disabled.
The following options for entering values are available:
The current value is deleted when you enter the first character. Enter the value
again.
Use the
now edit the characters of the current value or add characters.
Use the
Use the
Select
Select
close the screen keyboard.
NWB & NWB-HC IM28 OCT 2014
Instruction Manual NWB & NWB-HC IM 28 OCT 2014
and keys to move the cursor within the current value. You can
key to delete the character to the left of the cursor.
key to change the sign of the value.
to view the info text of the IO field.
to confirm your entries or cancel them with
Alpha/Numeric Entries:
When you are prompted to enter alphabetical
and numerical data (Resin Names/Numbers)
this screen will appear:
of
. Both actions
