Philips CPWNA100/00 Instructions For Use Manual page 19

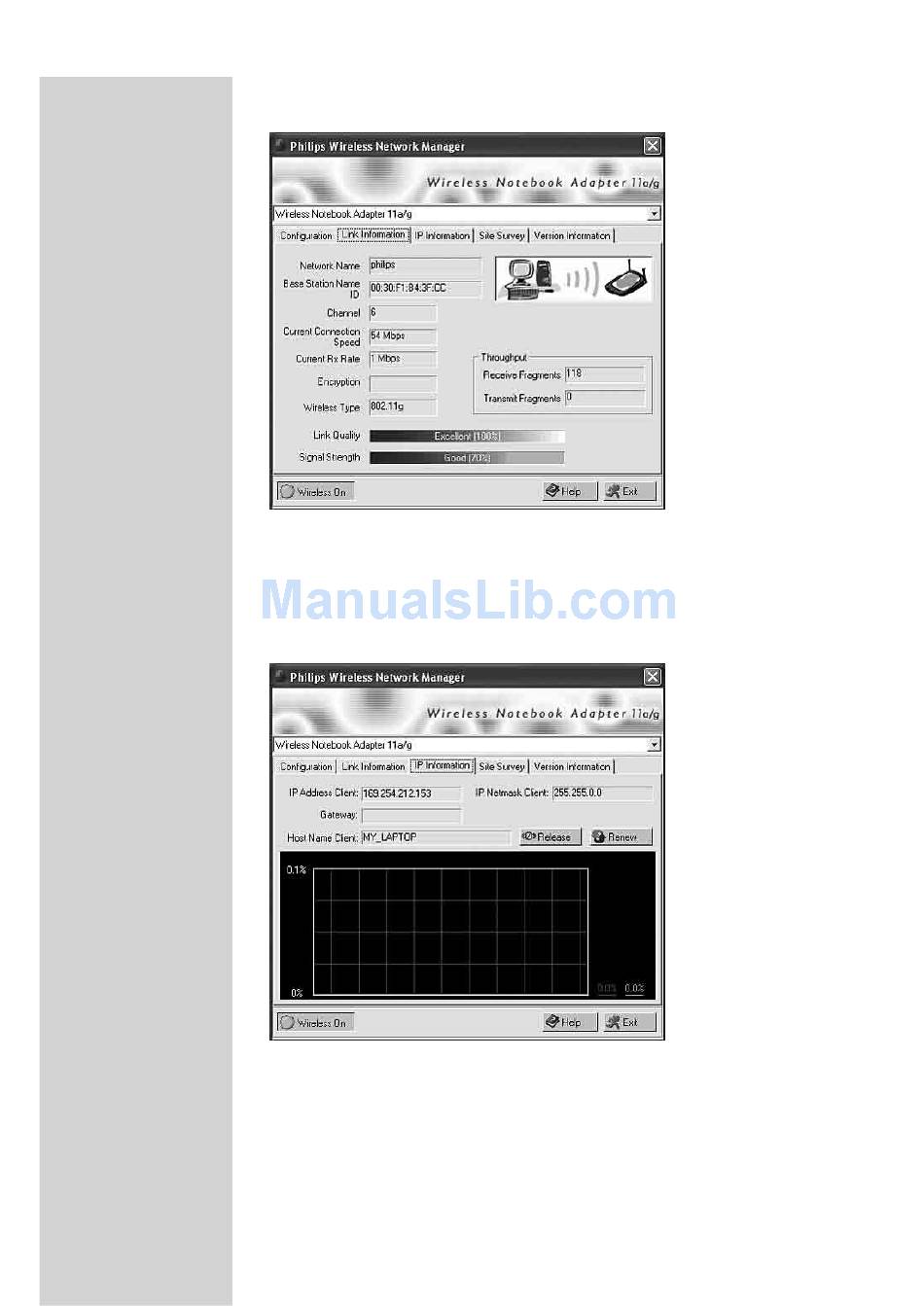

• Link information
The Link information tab displays information on the wireless network
name (Network Name) to which there is a wireless connection, the signal
strength and link quality, the connection speed, the channel and the number
of transmitted/received (Tx/Rx) fragments.
• IP information
The IP information tab displays information on the Host Name, IP
Address, Subnet Mask, and Gateway.
This window also contains buttons for releasing and renewing the IP address.
This is done to bring a computer back onto the network after moving it to
a different location, or after experiencing an unexpected outage. First
release, then renew the IP address. Computers on DHCP networks often
(but not always) re-establish network connectivity automatically.
ENGLISH 19
