Summary of Contents for Skynetic Havok Racer
-

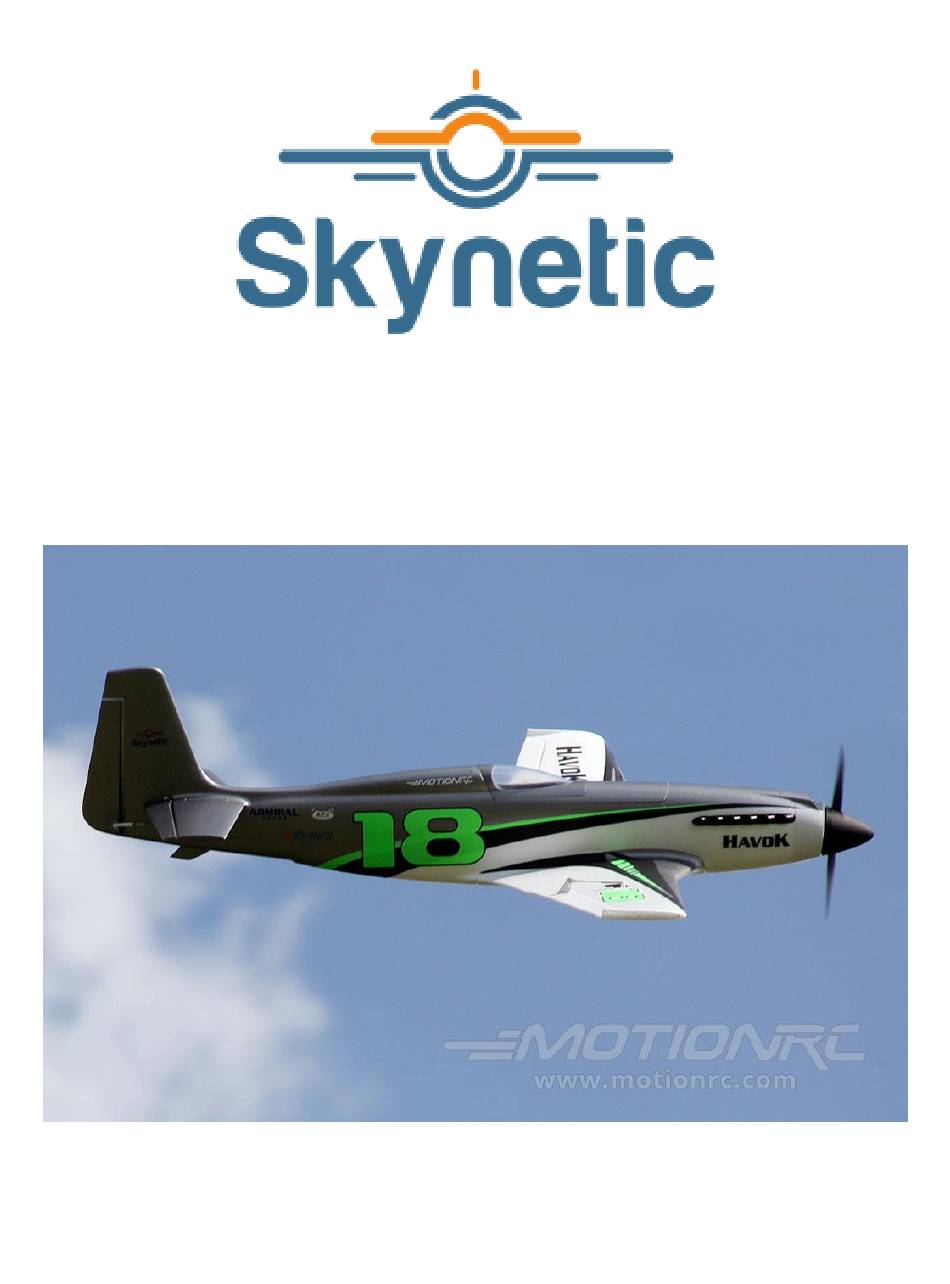

Page 1: Instruction Manual

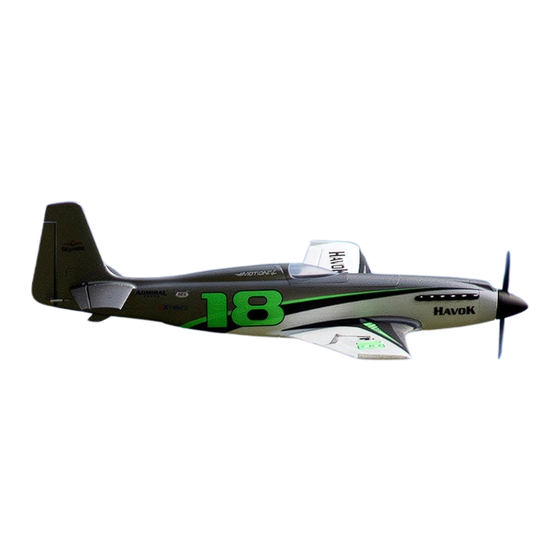

1000mm Havok Racer INSTRUCTION MANUAL Rev.1A 10.22.2019... - Page 2 United States or +31-30-8080557 in Europe or email us at www.motionrc.com/support. ORIGINAL EQUIPMENT AND WARNINGS Your Skynetic 1000mm Havok Racer is specified to use a single 4s 14.8 volt Li-Po battery with an XT60 connector. The recommended capacity of the battery is 2500mAh-3000mAh. Adhere to all safety guidelines regarding the storage, charging, and operation of Li-Po batteries.
- Page 3 Attach the horizontal stabilizer halves to the fuselage by inserting the carbon rod through the hole as shown. Fasten each horizontal stabilizer half with two screws as shown. STEP 4 Your Skynetic 1000mm Havok Racer features a rigid one-piece main wing that is internally reinforced with carbon within the main sections and the ailerons.
- Page 4 STEP 5 Fasten the main wing onto the fuselage with the four included 10mm *2mm machine screws. Do not use any Thread Locker on this assembly. STEP 6 Before attaching the spinner and propeller, it is imperative that the flight battery is disconnected from the model and the radio transmitter is powered off.
- Page 5 STEP 8 If needed, subtrim your aileron servos so the servo arm is perpendicular to the underside of the wing. Attach the control rods to the pre- installed control horns for the ailerons so that the trailing edge is aligned as shown. STEP 9 Control Throws, Rates, and Exponential are subject to individual pilot preferences, but we recommend the following configuration for a safe maiden flight as a basis for personalization.
- Page 6 The Havok is designed to be an easy hand launcher. With time, you will master the technique under various conditions. To land the Skynetic Havok Racer, gradually reduce throttle with the wings level, and allow the model to glide on an even glideslope down to the ground, with a minor flare just before landing.
- Page 7 Rev.1A 10.22.2019...
