Page 1: User Manual

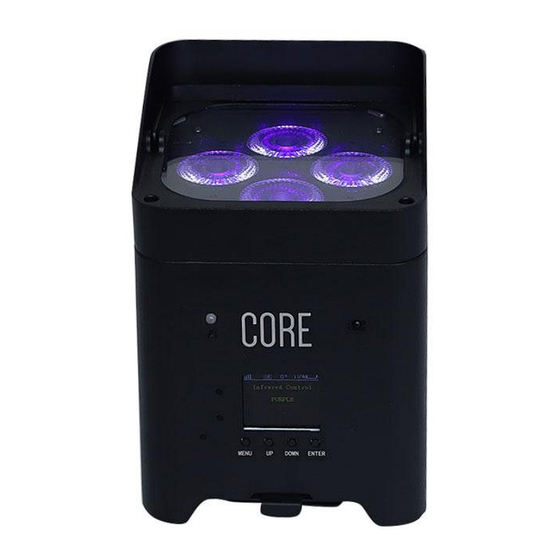

4*18W 6IN1 APP MOBILE BATTERY POWERED LED UPLIGHT User Manual SAFETY INSTRUCTION www.sailwinlight.com info@sailwinlight.com... -
Page 2: Safety Precautions
Caution Do not attempt any repairs yourself. Doing so will void your manufactures warranty. In the unlike event your unit may require service please contact us. Warning To prevent or reduce the risk of the electrical shock or fire, do not expose this unit to any moisture. - Page 3 Light source LED quantity 4pcs x 18W LED Color RGBWA+UV 6in1 Voltage AC110V-250V 50-60Hz Power consumption Housing Die Casting Aluminium IP Rate IP 22 LED angle 15/25/40 degree Display 4 digit digital LED display Battery capacity 8800MAH Charging Time 5 hours Control channel 6/10 CH DMX512, infrared control, 2.4G...
-
Page 4: Operation Status
MAIN MENU MENU DOWN ENTER Operation Status Dmx512 Shows Sound Color Help A001 1.Auto Color: 1.Sound 1.Custom 1.DMX Name: Console and jump change mode 1: Press color: Channel: 6 Color slave mode Press Enter to Enter to adjust Manual dim 6 CH /1 0 CH adjust the sensitivity... - Page 5 4.Auto 4.Sound 2.Static color: 4.Display Run time strobe: strobe mode 4: Press 32 kinds of static backlight: LCD effect Press Enter to adjust color screen Enter to adjust sensitivity brightness the speed (1-100) 0-100% (1-99) 5.Wifi mode: 5.Lcd close Use Time App control time: Lcd screen ON /...
-
Page 6: Dmx Channel
DMX Channel Channel 6 Channel Mode 10 Channel Mode Red: 0 - 255 Dimmer: 0 - 255 Green: 0 - 255 Red: 0 - 255 Blue: 0 - 255 Green: 0 - 255 White: 0 - 255 Blue: 0 - 255 Amber: 0 - 255 White: 0 - 255 UV: 0 - 255... -
Page 7: Wireless Remote Control
6. This fixture is with RDM function, and auto temperature protect (When the temperature over 75 degree, the power consumption will low down to 30%, when the temperature over 95 degree, the light will be shut down) 7. When the light is in charge, the display will turn into charging interface, if you need to use the light in charging, please press MENU. -
Page 8: Wifi Control
WiFi Control: 1) iOS mode: 1. Scan this code or search “LED LAMP” on App Store, download the app on mobile phone. 2. Press “+” on the right top of the APP, then find and choose the “LED WiFi” www.sailwinlight.com info@sailwinlight.com... - Page 9 3. After add the “LED WiFi”, you can start to control the light by the mobile phone. 2) Android mode: Please click this file and download it to your phone: LED WIFI20191028.apk www.sailwinlight.com info@sailwinlight.com...
- Page 10 Company: Guangzhou Sailwin Light&Audio Technology CO.,LTD Add: NO211, Building 3, Seiko Creative Park 2 Wangang Road, Xinhua Street, Huadu District, Guangzhou, china Email: info@sailwinlight.com Tel: 0086-20-61839740 Phone: 0086-15013209611 www.sailwinlight.com info@sailwinlight.com...
