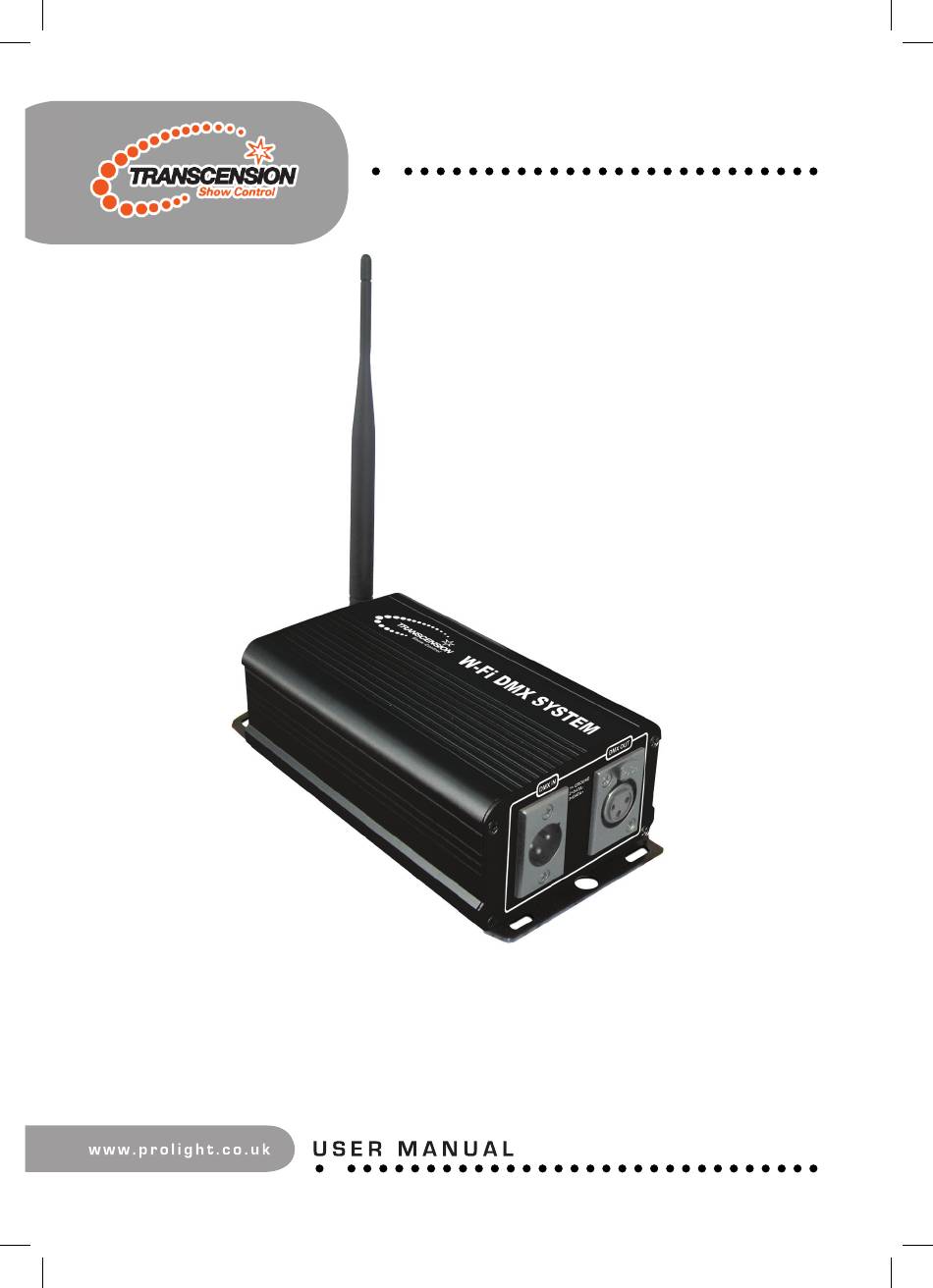

- Page 1 W-FI DXM SYSTEM Order code: BOTE65...
- Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT!
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Identification: 1, Antenna SMA Connector 5, Dip switches 1-4 (pairing) 2, DC Input Connector 6, Dip switches 1-6 (freq + tx, rx) 7, DMX In Socket 3, DMX Signal Indicator 4, Wireless Remote Indicator: Signal receipt (Red), 8, DMX Out Socket Signal Emission (Green) Overview: The W-FI Wireless DMX controller enables you to communicate with your DMX fixtures without the...
- Page 5 The Wireless DMX controller can work on 32 selectable frequencies. 0 = Off 1 = On...
- Page 6 The Wireless DMX controller frequency table continued. 0 = Off 1 = On Working environments and cautions: 1, The transmitter and receiver controller must be on the same frequency and address. 2, The transmitter and receiver antenna must be vertical to the controller to ensure better signal transfer.
- Page 7 Features: Transmit/receive up to 512 DMX channels wirelessly Use with any universal DMX-512 controller Frequency: 2.4G Working frequency: 2400M ~ 2431M (2.4G ISM) Transmission power: 20DBM Durable, extruded aluminium casing Functions as transmitter or receiver 300m Transmission range (Max) Requires two units for operation Specifications: Power supply: DC 9V~500mA by adaptor (included) Dimensions: 196 x 93 x 53mm (excluding antenna)
