Memory Card Installation - Maxcom MM141 User Manual

next to the battery, on the left hand side.

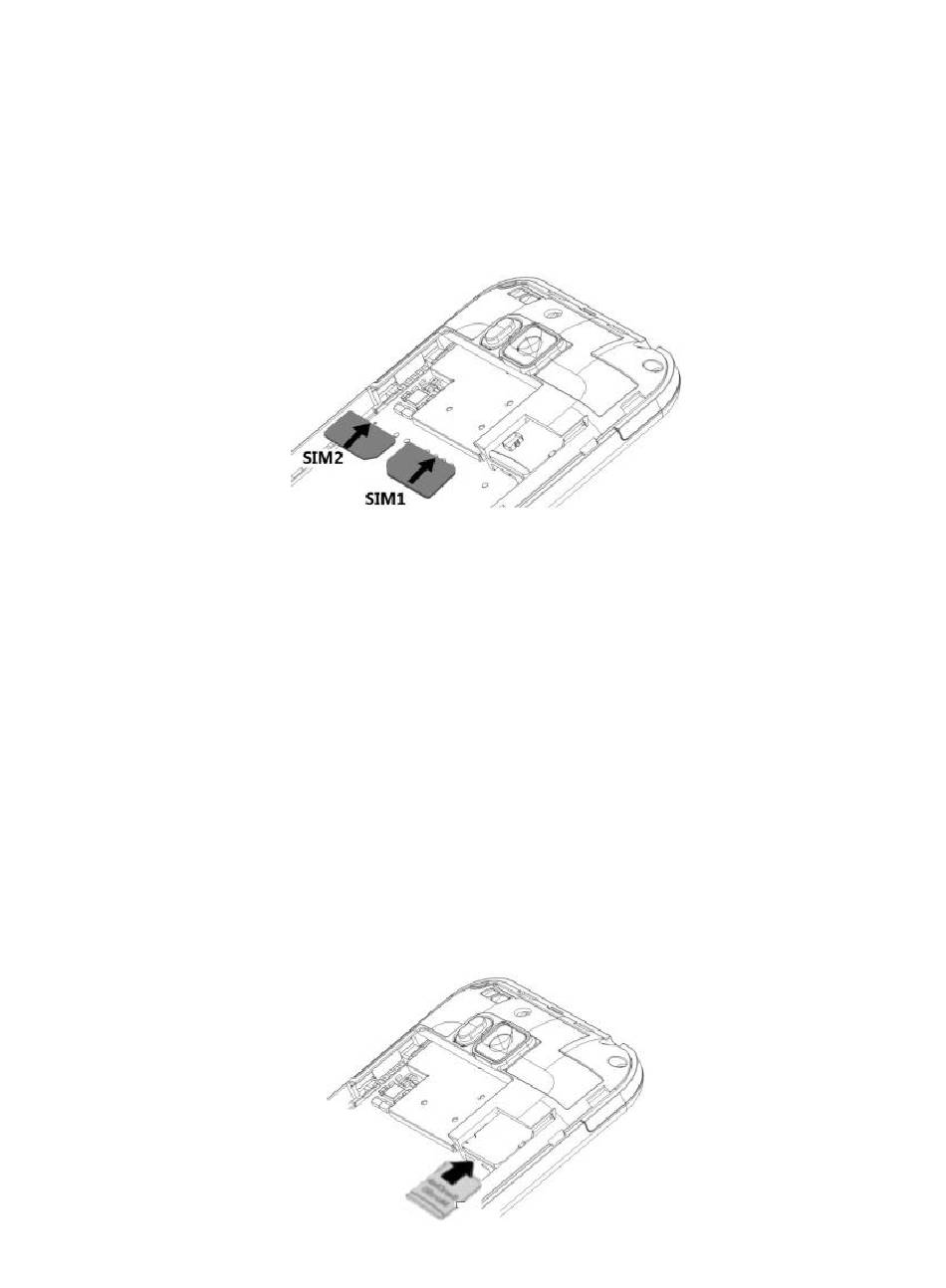

SIM 2 – gently open the SIM2 holder tray, insert the SIM card into
the slot so that its gold contact pins will face upwards, and the
notched corner will be placed next to the battery, on the right hand
side.
5.2

Memory Card Installation

There is an option to install a Micro SD Memory Card of 16GB.
The memory card might slide out from its position if the phone is
shaken. Never bend or scratch the memory card; never expose it
to static electricity or dust; never immerse the card in water.
First, switch off the phone and remove the battery
1
Insert the memory card so that gold contacts will face
2
downwards.
14
