Project #373
Display
Letter "d"

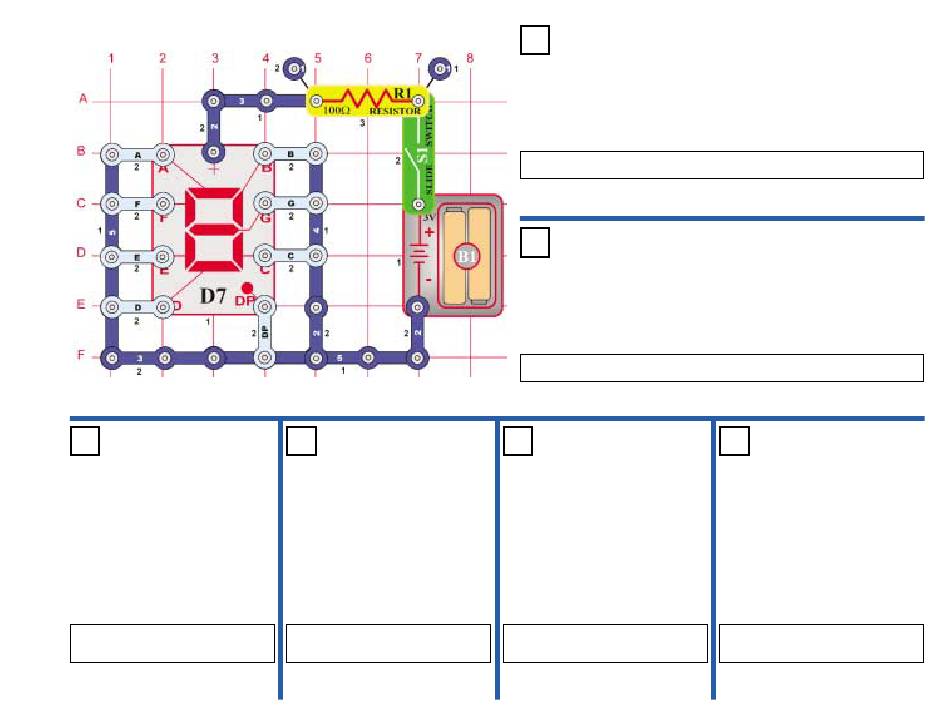

OBJECTIVE: To configure the
seven segment to display the
letter "d".
Connect B, C, D, E, & G to the
negative of the battery.
Project #374
Display
Letter "e"
OBJECTIVE: To configure the
seven segment to display the
letter "e".
Connect A, B, D, E, F, & G to the
negative of the battery.
Project #371

Display Letter "b"

OBJECTIVE: To configure the seven segment to display the letter "b".
Connect C, D, E, F, & G to the negative of the battery.
Project #372

Display Letter "c"

OBJECTIVE: To configure the seven segment to display the letter "c".
Connect A, F, & G to the negative of the battery.
Project #375
Display
Letter "h"
OBJECTIVE: To configure the
seven segment to display the
letter "h".
Connect F, E, G, & C to the
negative of the battery.
Project #376
Display
Letter "o"
OBJECTIVE: To configure the
seven segment to display the
letter "o".
Connect C, D, E, & G to the
negative of the battery.
-28-
