Fm Radio; Mega Circuit - Elenco Electronics Snap Circuits Instruction Manual

Project #316
Project #317
-11-

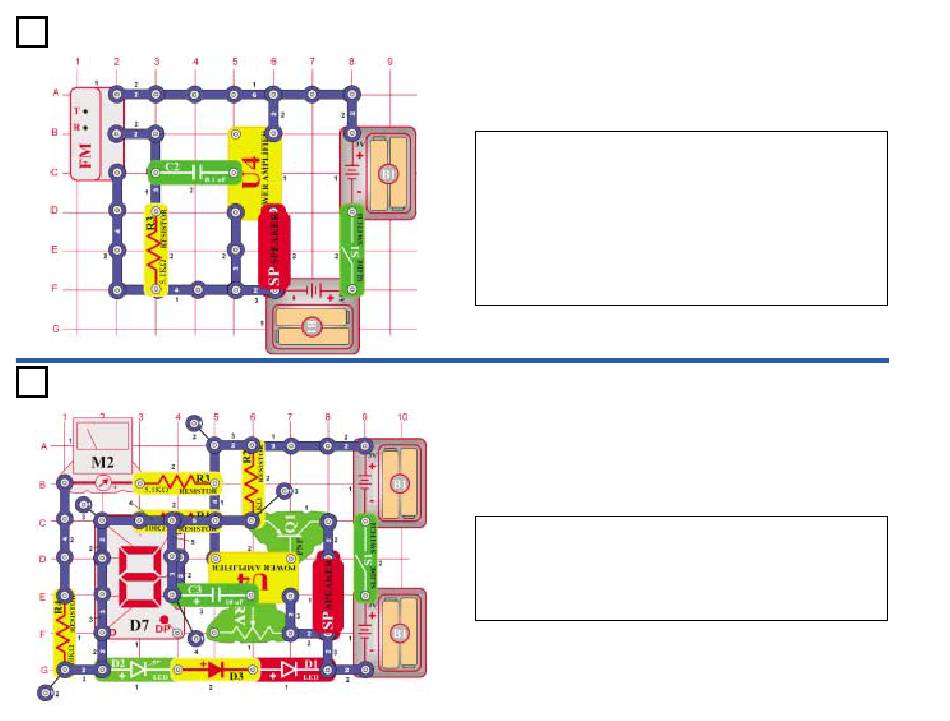

FM Radio

OBJECTIVE: To build a working FM radio.
The FM module (FM) contains a scan (T) and a reset (R) button. The
R button resets the frequency to 88MHz. This is the beginning of the
FM range. Press the T button, the module scans for the next available
radio station.
Turn on the switch (S1) and press the R button. Now press the T
button and the FM module scans for an available radio station. When
a station is found, it locks on to it and you hear it on the speaker.
Press the T button again for the next radio station. The module will
scan up to 108MHz, the end of the FM band, and stop. You must then
press the reset (R) button to start at 88MHz again.

Mega Circuit

OBJECTIVE: To build a complex circuit.
This is an example of using many parts to create an unusual circuit.
Turn on the switch (S1). As the circuit oscillates, the 7-segment
display (D7) flashes the number 5 and the LEDs flash as well. The
meter (M2) deflects back and forth and the speaker sounds a low tone
at the same rate. The frequency of the circuit can be changed by
adjusting the variable resistor.
