Homelegance 4522WH-15 Assembly Instructions

LISTE DE PIECES
NO DESCRIPTION
1 TOP
2 SIDE PANEL FRAME (L/R)
3 CROSS BAR
Step 1
Remove drawer from Top.
1
Lock
Left side view
Step 2
D
E
2R
MADE IN MALAYSIA
ASSEMBLY INSTRUCTION
INSTRUCTIONS D' ASSEMBLANGE
Item No :
Description :
Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing
straps before you start to assemble.
Do not tighten all screws / bolts until all completely assembled.
Keep all hardware parts out of reach of children.

PART LIST

QTY/PCS
C
B
A
2L
3
1
4522-15 / 4522WH-15

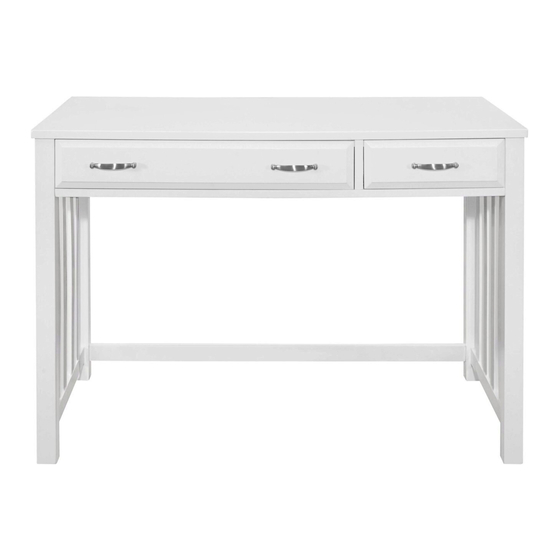

DESK
I M P O R T A N T
LISTE DE QUINCAILLERIE
NO
1 PC A JCBC BOLT / BOULON M6 x 1.0 x 45mm
2 PCS SPRING WASHER / RONDELLE D' ARRET
B
1/4" x 9/32" x 15/32" x 0.04"
1 PC
FLAT WASHER / RONDELLE PLATE
C
1/4" x 9/32" x 3/4" x 0.04"
D
ALLEN KEY / CL ALLEN M4 x 60mm
E CSK SCREW / VIS M4 x 45
Lock
Right side view
Step 3
Re-assemble drawer to Desk.
N O T E :

HARDWARE LIST

DESCRIPTION
Re-assemble handle from inside
to outside position.
QTY/PCS
8 PCS
8 PCS
8 PCS
1 PC
2 PCS
1 OF 2
