Summary of Contents for Partilink V23-H04H04

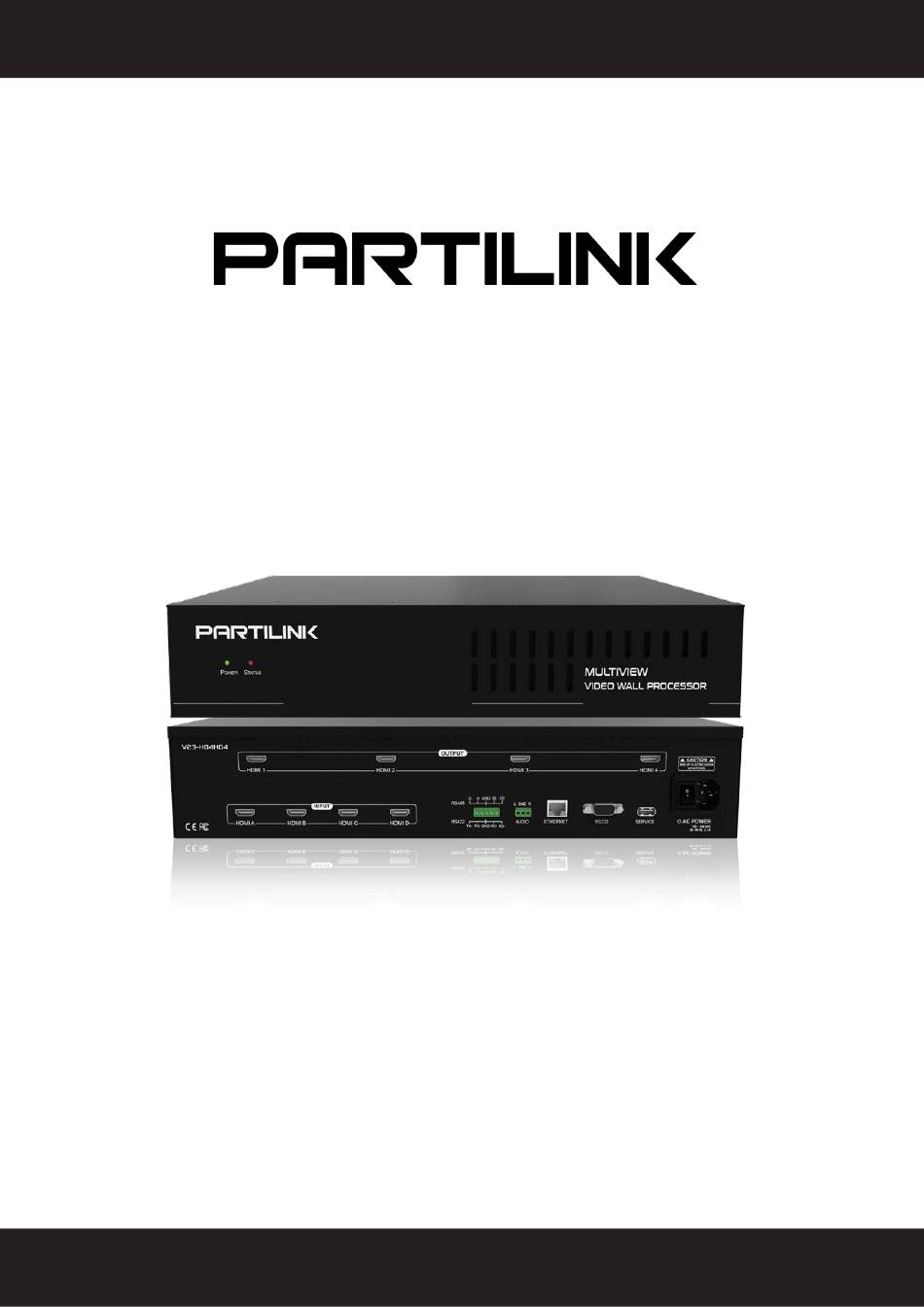

- Page 1 HDMI 2.0 Multiview Video Wall Processor V23-H04H04 User Manual (201912 v.1) www.partilink.con...
-
Page 2: Table Of Contents
Contents 1. Overview ------------------------------------------------------------------------------------------------------ 2. Features ------------------------------------------------------------------------------------------------------ 3. Specification -------------------------------------------------------------------------------------------------- 4. Hardware ---------------------------------------------------------------------------------------------------- 4.1 Front Panel --------------------------------------------------------------------------------------- 4.2 Rear Panel --------------------------------------------------------------------------------------- 5. Installation --------------------------------------------------------------------------------------------------- 5.1 Wiring Configuration --------------------------------------------------------------------------- 5.2 Video Wall Wiring Configuration ------------------------------------------------------------ 5.3 Rack Mount Installation ----------------------------------------------------------------------- 6. System Operation ------------------------------------------------------------------------------------------ 6.1 System Screen Layout Setting --------------------------------------------------------------- 6.2 System Screen Mode Setting... -
Page 3: Overview
1. Overview The Partilink V23-H04H04 is a HDMI 2.0 (4K@60Hz 4:4:4) Multiview Video Wall Processor with 4 HDMI inputs and 4 HDMI outputs. It provides various functions including video wall, multiview, matrix switch and scaling all-in-one unit and various type of control including web UI, Telnet, RS232, RS485 and RS422 to manage the video wall system. -
Page 4: Specification
3. Specification MODEL NO. V23-H04H04 Inputs 4 x HDMI 2.0 INPUT/OUTPUT Output 4 x HDMI 2.0 Audio Output terminal block 3 pole, stereo full screen, PIP, POP, rotation R90°/ L90°, Display Mode cross screen, quadview, matrix 4096 x 2160p (60Hz, 50Hz, 24Hz) -
Page 5: Hardware
4. Hardware 4.1 Front Panel No. Feature Description Indicate the status of power. The light is static on when Green LED power on but flashes when scaling is not working Indicator properly Indicate the status of fan. The light is static on when the Red LED fan working normally but flashes to alarm when fan not Indicator... -
Page 6: Installation
5. Connect the PC, network hub, switch or router to the Ethernet port of RJ- 45 connector with CATx cable for operating via Ethernet 6. Connect the PC to RS232 D-sub 9 connector of V23-H04H04 via a 9-wire straight cable for control via RS232 7. -
Page 7: Video Wall Wiring Configuration
5.2 Video Wall Wiring Configuration: a) For a 2x2 video wall array system wiring setup please follow instruction below Connect output HDMI 1 to the top left display • Connect output HDMI 2 to the top right display • Connect output HDMI 3 to the bottom left display •... -
Page 8: Rack Mount Installation
5.3 Rack Mount Installation: Attach and screw the rack brackets to the right and left side of the 2U chassis... -
Page 9: System Operation
6. System Operation The V23-H04H04 is a multiple functions processor to apply as follows: Scaler • Video Wall Controller • Multiviewer • Matrix Switcher • This chapter is system operation guide from screen setting to display mode selection. Please follow steps below to complete your first-time setup. -
Page 10: System Screen Layout Setting
At the beginning, please set up the screen layout for the display system. The V23-H04H04 is capable to build the video wall array system 1x2, 1x3, 1x4, 2x2, 4x1, 3x1, 2x1 or matrix as diagram below. (Please see chapter 5.2 for wiring configuration and chapter 7.2.1 for screen setting) - Page 11 Single Source Full Screen Display Matrix Display...
-
Page 12: System Screen Mode Setting
6.2 System Display Mode Setting There are 3 display modes can be applied with V23-H04H04 Video Wall • Multiview windowing • • Matrix Only one mode can be presented at the same time. See instruction for display mode in following session. -
Page 13: Matrix Mode
6.2.3 Matrix Mode The Matrix mode here means each connected screen presenting video from single source and full screen only without multiview. The video presenting on each screen can be assigned from the same source or matrix switch. (Please see chapter 7.4.3.1 for setting) <<NOTE>>... -
Page 14: Web Management
V23-H04H04 for accessing the web UI via Ethernet directly to control and management. You can either connect the PC to the V23-H04H04 (a) via Ethernet cable (CATx cable with RJ-45 connector) directly or (b) via an Ethernet hub/ Router with CATx cable between the PC and the V23-H04H04. -
Page 15: Screen Setting Page
7.2 Screen Setting Page Screen Width Screen Length Screen Visual Width Screen Visual Length 7.2.1 Screen Setting Video Wall Array: Input the number of displays in column and row • to set up various video wall array including 1x1, 1x4, 1x3, 1x2, 2x2, 4x1, 3x1, 2x1 video wall system. - Page 16 Bezel and Gap Compensation • To avoid video display twisted, setting up the dimension of connected displays for bezel and gap compensation. Input the screen’s outside screen width/ length (including the bezel) and inside visual width/length (excluding bezel) for auto compensation Screen Setting Screen Width Screen Length...
-
Page 17: Screen Layout
7.2.2 Screen Layout Screen Layout Screen Layput Showing the layout of video wall array set actually 7.2.3 Output Setting Output Setting Select output resolution from the resolution table: auto (default) 4096x2160@60Hz, 4096x2160@50Hz, 4096x2160@24Hz, 3840x2160@60Hz, Resolution 3840x2160@50Hz, 3840x2160@30Hz, 3840x2160@24Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1920x1080@30Hz, 1920x1080@24Hz, 1280x720@60Hz, 1280x720@30Hz, 1600x1200@60Hz, 1920x1200@60Hz, 2048x2048@57Hz Apply... -
Page 18: Edid
7.2.4 EDID EDID Select EDID from the management table: Default: the default EDID Management Copy: copy the EDID from Output 1 and apply to all the output ports Apply Click “Apply” to confirm the setting 7.3 Video Wall Page... -
Page 19: Audio Setting
7.3.1 Audio Setting Audio Setting Select source to output audio: HDMI A, HDMI B, HDMI C, Audio Source HDMI D and Mute Apply Click “Apply” to confirm the setting 7.3.2 Image Setting Image Setting Select aspect ratio from the option table: Fill: Enlarge to full screen size Aspect Ratio Contain: Keep the original aspect ratio... -
Page 20: Color Setting
7.3.3 Color Setting Color Setting Brightness Adjust Brightness value between 0 ~ 100 Contrast Adjust Contrast value between 0 ~ 100 Adjust Hue value between 0 ~ 100 Saturation Adjust Saturation value between 0 ~ 100 Apply Click "Apply" to confirm the setting... -
Page 21: Video Wall Setting
7.3.4 Video Wall Setting Video Wall Setting Click on the icon of monitor (remarked in circle as the diagram shown), then the "Video Wall Input" platform will pop up for Monitor Icon setting Video Wall To select the video source for output when in single source Input video wall display mode Channel... -
Page 22: Multiview Page
7.4 Multi-View Page 7.4.1 Audio Setting Audio Setting Select source to output audio: HDMI A, HDMI B, HDMI C, Audio Source HDMI D and Mute Apply Click "Apply" to confirm the setting... -
Page 23: Color Setting
7.4.2 Color Setting Color Setting Brightness Adjust Brightness value between 0 ~ 100 Contrast Adjust Contrast value between 0 ~ 100 Adjust Hue value between 0 ~ 100 Saturation Adjust Saturation value between 0 ~ 100 Apply Click "Apply" to confirm the setting 7.4.3 Layout Setting There are three modes to set up in screen layout setting •... -
Page 24: Matrix
7.4.3.1 Martrix <<NOTE>>The Matrix mode is available here for setting only when user set up the screen layout to 2x2 , i.e. 2 in column and 2 in row in Video Wall page previously. (Please see chapter 7.2.1 for the 2x2 setting) Click on the Matrix first Matrix Click on the "Matrix"... -
Page 25: Pre Defined
7.4.3.2 Pre-Defined When screen layout in Pre-Defined mode, the Image Setting will pop up for user to set the aspect ratio and border color... - Page 26 Pre-Defined There are 5 sets pre-defined screen layout to select Layout A Layout B Layout C Layout D Layout E Layout A Layout B Layout Layout C Layout D Layout E << NOTE >> In this setting, input sources are fixed to the corresponding window.
-
Page 27: Custom
7.4.3.3 Custom When screen layout in Custom mode, a platform will pop up for user to set the position and size of the windows of each custom screen layout saved from Custom 1 to Custom 7 individually. <<NOTE > >Setting for aspect ratio and border line are not available in custom screen layout mode Vertical Position Width Resize... - Page 28 Custom Maximum 7 sets of custom screen layout can be defined and stored here to select. Users are free to reset and restore the custom screen layout for application. Custom 1 Custom 2 Custom 3 Custom 4 Custom 5 Custom 6 Custom 7 Custom There are two ways to define the custom layout including:...
- Page 29 Tier 1 Tier 2 Tier 3 Tier 4 Tier 1...
-
Page 30: System Page
7.5 System Page System Ethernet Type Select Ethernet type STATIC or DHCP Indicate the MAC address of the unit Mac Address IP Address Indicate the IP address of the system currently Unit ID Indicate the ID of the unit. ID ranges between 00~99 Indicate the operating fan speed currently. -
Page 31: Serial/Telnet Communication
8. Serial/ Telnet Communication The V23-H04H04 can be operated and controlled by the serial/Telnet commands 8.1 Series Port Setting Please apply following information to set up the serial port communication Baud Rate: 19200bps • Data Bit: 8 bits • Parity: None •... - Page 32 COMMAND LIST Web UI Action Command Parameter Value Note Screen layout N: Column M: 1~4 M: Row N: 1~4 W: 1~3000 Screen SCRSETTING N M W X Y Z Bezel Setting X: 1~3000 W: Screen Width Y: 1~3000 X: Screen Length Z: 1~3000 Y: Screen Visual Width Z: Screen Visual Length...
- Page 33 a) When N=1: Matrix mode M=N/A N:1~3 b) When 1: Matrix, available on 2x2 screen setting Multiview N=2: Pre-defined Layout 2: Pre-defind Layout MVMODE Layout M=1~5: Pre-defined Layout A~E 3: Costom Layout M: 1~7 c) When N=3: Custom Layout M=1~7: Custom Layout 1~7 S: 1~4 S: Quadrant I, 1~4 represents HDMI A~D, Input...
- Page 34 Web UI Action Command Parameter Value Note N:0~1 HDCP 0: Off 1: On X: 0~1 X: 0, Static IP Mode IPMODE X: 0, Static X: 1, DHCP X: 1, DHCP S T U V IPADD 192 168 1 22 IP Address IPADD S.T.U.V IPADD 192.168.1.22 S T U V...
-
Page 35: Package Contents
9. Package Contents The V23-H04H04 package includes following items. 1) The video wall processor unit x 1 piece 2) Power cords including US x 1 piece and EU standard x 1 piece 3) Rack mount bracket x 1 set 4) M4 x 6mm screws x 10 pieces... - Page 36 V23-H04H04 User manual (201912 V.1) www.partilink.con...
