Summary of Contents for Partilink VP-QV41H

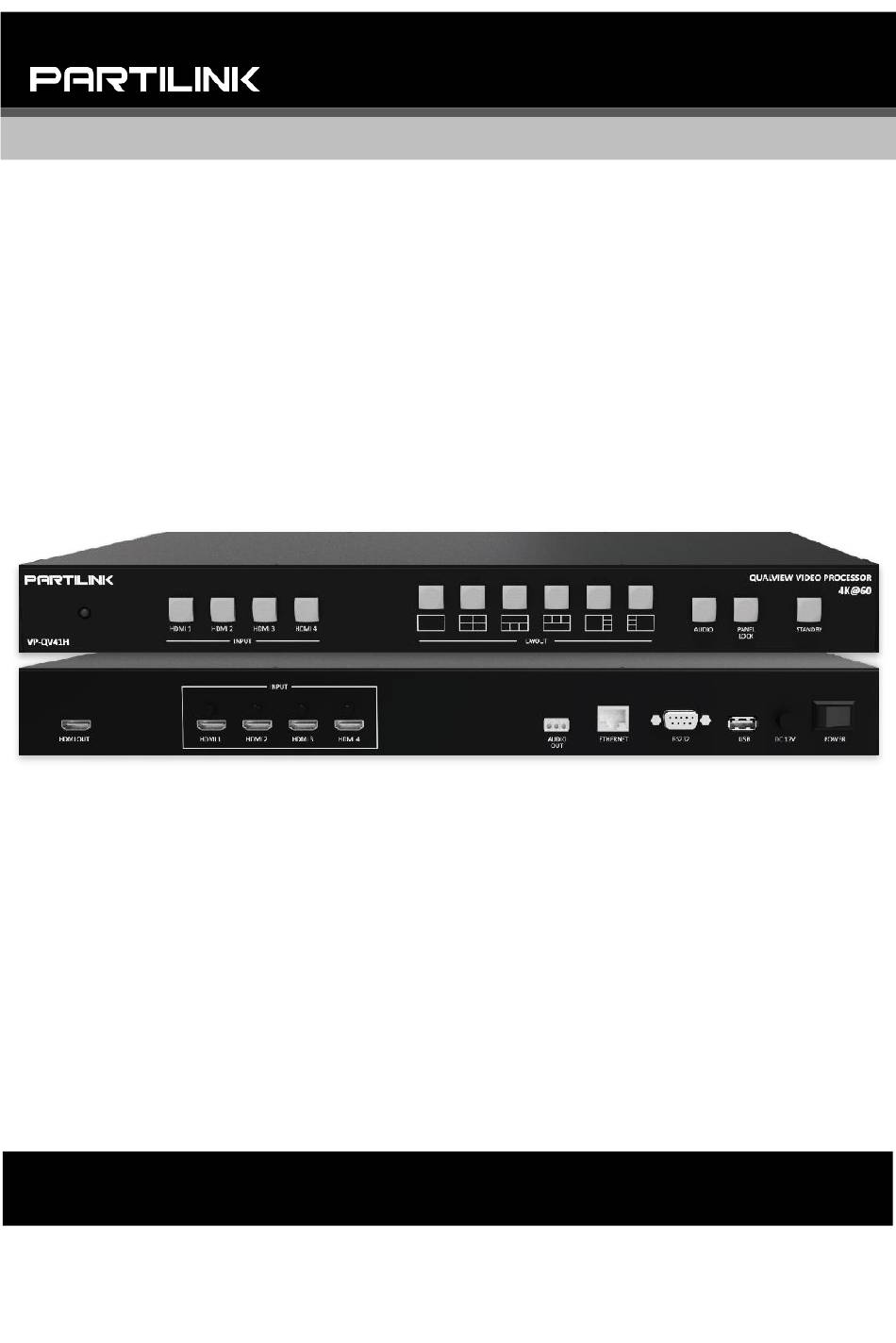

  • Page 1 User Manual- VP-QV41H Quadview Video Processor...

  • Page 3: Table Of Contents

    Contents 1. Overview ....................1 2. Features ....................1 3. Specifications ..................2 4. Hardware Descriptions ................. 4 Product Appearance ............4 Front Panel ................. 5 Rear Panel ................7 IR Remote Control .............. 8 5. Installation ..................... 11 Wiring Diagram ..............11 Rack Mount Installation ..........
  • Page 4 7. Package Contents ................27 A. Appendix 1: Function NA list ............28 B. Appendix 2: Front Panel Screen Layout Indicator ...... 28...

  • Page 5: Overview

    1. Overview The Quadview Video Processor is a simple, cost-effective video scaler designed to enable a true 4K@60Hz UHD, HD, SD video display device, virtually handling any input resolution up to 4K@60Hz. It provides 4 HDMI inputs and 1 HDMI output.

  • Page 6: Specifications

    3. Specifications MODEL NO. VP-QV41H Product Hardware System structure Pure Hardware Information Start up < 12 sec Operating No CPU and operating system system Input / Input 4 x HDMI 2.0 with locking Output Output 1 x HDMI 2.0 with locking...
  • Page 7 Control Front panel 4 x select HDMI 1,2,3,4 input and/or Methods buttons audio, 6 x display layout, 1 x Audio Selection, 1 x Panel lock, 1x Standby 1 x IR remote control 1 x D9 Female Connector / Compatible RS232/TELNET with third party control system ETHERNET 1 x RJ45...

  • Page 8: Hardware Descriptions

    4. Hardware Descriptions 4.1 Product Appearance Feature Description Attach the bracket to the left side of the system Rack Mount Bracket chassis for rack mount installation Control Quadview Video Processor or directly Front Panel via the front panel push Buttons Connect Video and Audio signal via rear panel Rear Panel input connectors...

  • Page 9: Front Panel

    4.2 Front Panel Feature Description Receives signals from the remote control IR Receiver transmitter Select the HDMI 1 input in full screen HDMI1 mode Select HDMI 1 audio in quadview mode Select the HDMI 2 input in full screen HDMI2 mode Select HDMI 2 audio in quadview mode INPUT...
  • Page 10 PANEL LOCK Lock or unlock the front panel buttons Put the system into standby mode or wake STANDBY up the system...

  • Page 11: Rear Panel

    4.3 Rear Panel Feature Description Connect to the HDMI display device, connector on OUTPUT HDMI rear panel with locking Connect to the HDMI source, connector on rear HDMI1 panel with locking Connect to the HDMI source, connector on rear HDMI2 panel with locking INPUT Connect to the HDMI source, connector on rear...

  • Page 12: Ir Remote Control

    4.4 IR Remote Control...
  • Page 13 Feature Description Press to set system into standby mode or wake Standby up the system Lock Press to Lock or unlock the front panel buttons Select HDMI 1 in full screen mode Select HDMI 1 audio in quadview mode Select HDMI 2 in full screen mode Select HDMI 2 audio in quadview mode.
  • Page 14 / L90 Rotate the video display in full Rotate* screen mode Flip* Flip display screen in full screen mode Feature Description Select custom screen layout 1 Select custom screen layout 2 Select custom screen layout 3 Select custom screen layout 4 Custom Layout* Select custom screen layout 5...

  • Page 15: Installation

    5. Installation 5.1 Wiring Diagram Do the following steps for device connections. Connect a HDMI source to the HDMI 1 input connector. Connect a HDMI source to the HDMI 2 input connector. Connect a HDMI source to the HDMI 3 input connector. Connect a HDMI source to the HDMI 4 input connector.

  • Page 16: Rack Mount Installation

    5.2 Rack Mount Installation Take the following steps to attach the two brackets to the system chassis and install into rack. Remove all cables and power supply before mount the Quadview Video Processor in the rack Place the system chassis on a sturdy surface Attach bracket to the left side of the system chassis by using the screw driver and four screws Attach the other bracket to the right side of the system chassis by...

  • Page 17: Configurations

    6. Configurations 6.1 Front Panel Buttons Please see the section 4.2. 6.2 Remote Control Please see the section 4.4 6.3 Web UI You can connect the Ethernet directly from PC to Quadview Video Process. Please follow below steps to configure your PC Ethernet setting. 6.3.1 Directly Connect to PC via Ethernet Cable Click Start >...

  • Page 18: Ethernet Hub Or Router

    After doing the steps from a. to h. successfully, you can click into Web UI by typing the 192.168.1.202 IP address in IE or Chrome. 6.3.2 Ethernet Hub or Router At first, please follow section 6.3.1 and open web browser then follow 6.3.3 to set the Ethernet type to DHCP.

  • Page 19: System Setting Page In Web Ui

    6.3.3 System Setting Page in Web UI Feature Description FW version System firmware version MAC address of Quadview Video MAC addr. Processor System Refer to sec. 6.3 for telnet commands. Telnet CMD The response of the commands is not shown on Web UI. Reboot Quadview Video Processor Reboot Change the network type to Static IP or...

  • Page 20: Multi View Page In Web Ui

    6.3.4 Multi View Page in Web UI Settings Output Setting Color Setting Brightness 3840x2160@30Hz Multi ▼ View Window A ▼ Contrast Load Cancel Confirm Default Full Screen Setting Saturation Cancel Confirm Cancel Confirm...
  • Page 21 Feature Description Select output resolution 1: Auto (default) 2: 3840x2160@60Hz 3: 3840x2160@50Hz 4: 3840x2160@30Hz Resolution* 5: 1920x1080@60Hz 6: 1280x720@60Hz 7: 480p@60Hz Press “Confirm” after setting has finished or Output press “Cancel” to ignore the modification. Setting Select audio output source 1: HDMI1 (default) 2: HDMI2 Audio...
  • Page 23 Feature Description Select display layout type on monitor 1: Layout A (default, full screen) 2: Layout B 3: Layout C 4: Layout D Pre-defined* 5: Layout E 6: Layout F Press “Confirm” after setting has finished or press “Cancel” to ignore the modification.
  • Page 24 Layout Setting Pre-defined Layout A Layout B Custom Custom 1 Custom 2 Custom 3 Custom 4 Custom 5 Custom 6 Custom 7 Custom 8 HDMI1 Bottom HDMI2 Layer3 Window A Window B HDMI3 Layer2 Upper Window C Window D Window A Window B Window C Window D...
  • Page 25 Feature Description Select display custom layout type on Layout monitor Press “Confirm” after setting has finished Setting Custom * or press “Cancel” to ignore the modification. Window Information in upper left side of the window. 1. Window name: Window A, B, C and D 2.

  • Page 26: Load Default In Web Ui

    6.3.5 Load Default in Web UI Settings Output Setting Multi 3840x2160@30Hz ▼ View Window A ▼ Load Default Cancel Confirm Full Screen Setting ▼ Cancel Confirm Press to load default setting in Web UI.

  • Page 27: Rs232/Telnet

    RS232/TELNET Serial Port Settings 6.4.1 Apply the following settings to set up the serial port communication. Baud rate: 115200 Data bits: 8 Stop bits: 1 Parity: None Flow control: None Commands 6.4.2 Command Description Parameter SPOW 0/1 SET THE UNIT POWER ON/OFF 0=OFF,1=ON RPOW SHOW CURRENT POWER STATE...
  • Page 28 N=0~100, SHUE N SET HUE VALUE FOR OUTPUT Default 50 RHUE SHOW HUE CURRENT VALUE 0 = ALL, BRIGHTNESS+CONTRAS T+SATURATION+HUE 1=BRIGHTNESS, RESET COLOR SETTING VALUE TO SIMRE 0~4 DEFAULE 2=CONTRAST, 3=SATURATION, 4=HUE, Command Description Parameter WINDOW N=1~4, 1: A, 2: B, 3: C, 4: D SIN2CH N M SET INPUT SOURCE M TO WINDOW N INPUT SOURCE M=1~4,...
  • Page 29 WINDOW N=1~4, 1: A, 2: B, 3: C, 4: D SET VERTICAL POSITION OF SPECIFIED SVPOS N M WINDOW VERTICAL POSITION M=0~59 SHOW WINDOW VERTICAL POSITION CURRENT VALUE RVPOS WINDOW A~D=WINDOW 1~4 VERTICAL SIZE 0~59 WINDOW N=1~4, 1: A, 2: B, 3: C, 4: D SWIN N M SET OUTPUT WINDOW ON/OFF M=0/OFF, 1/ON...
  • Page 30 0=DHCP, 1=STATIC, SIPM 0/1 SET IP MODE TO DHCP OR STATIC Default 1 RIPM SHOW CURRENT IP MODE N=0~255, M=0~255, SIPADD N M X Y SET STATIC IP ADDRESS X=0~255, Y=0~255 RIPADD SHOW STATIC CURRENT IP ADDRESS SMAADD N M X N=0~255, M=0~255, SET STATIC SUBNET ADDRESS X=0~255, Y=0~255...
  • Page 31 7. Package Contents 1 x Quadview Video Processor 1 x Remote Control 1 x DC 12V/2A output power adapter 2 x Rack Mount Bracket 4 x Rubber Pad 1 x Screws bag 1 x User manual...
  • Page 32 A. Appendix 1: Function NA list Custom Custom Input Output Layout A Layout B Layout A Layout B Layout Layout Resolution Resolution Rotate NA Rotate NA 4K60 4K60 Rotate NA Flip NA Flip NA Rotate NA Rotate NA 4K30 4K30 Rotate NA Flip NA Flip NA...
