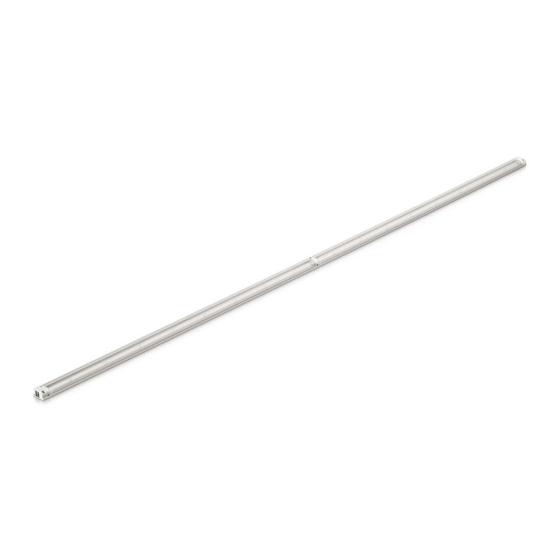

- Page 1 Quick installation guide Philips InteGrade LED fixture system for indoor environments and refrigerated cabinets (-30 to +30 °C / -22 to +86 °F)
-
Page 2: Warranty
• Do not make sharp bends with electrical wires. • Due to the variety of designs and brands in which the Philips LED products can be installed, you may need to use customized mounting accessories to fit the specific design you are using. If you require further support, please contact your local Philips sales organization. - Page 3 Products and tools spare parts Xitanium LED Power Driver 20 W 24Vdc - 929000654006 80 W 24 Vdc - 929000653906 InteGrade LED InteGrade LED lock inline Mounting brackets shelf InteGrade LED InteGrade LED InteGrade LED InteGrade LED InteGrade LED connector...
- Page 4 Connecting the LED InteGrade fixtures in the profile...
- Page 5 Installation examples with various InteGrade mounting clips and fixtures...
- Page 6 - Xitanium LED driver 80 W (logistic code 929000653906) max 72 W • Use Philips InteGrade LED power cable of 1 m (39 inch) or 2.5 m (98 inch) • If InteGrade power cables are extended, only use 0.75 mm...
