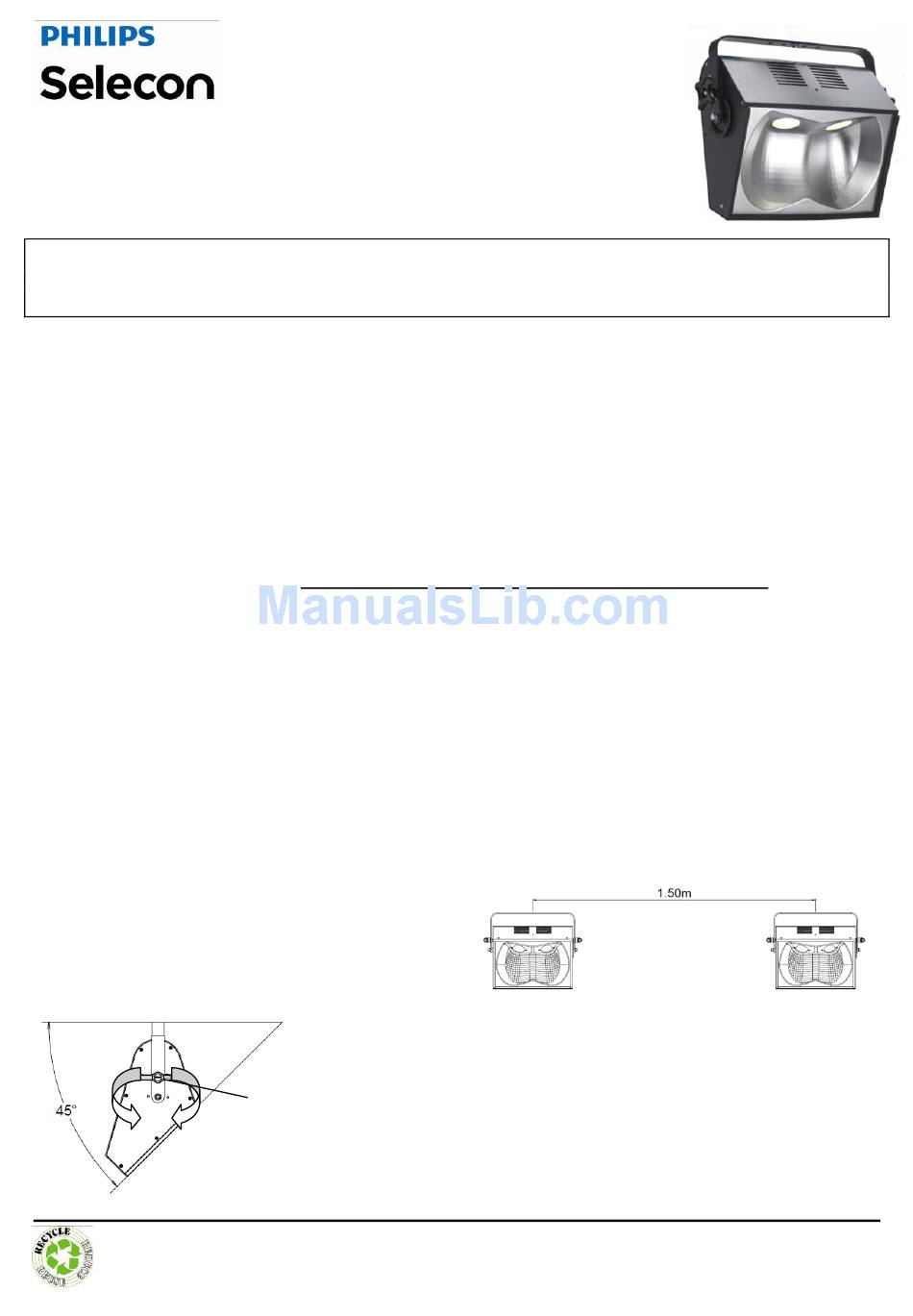

Philips Selecon PLCYC2 Operation Manual

PLCYC2
LED LUMINAIRE
THANK YOU FOR PURCHASING A PHILIPS SELECON PLCYC2 LED LUMINAIRE.
WE HAVE DESIGNED THIS LUMINAIRE TO PROVIDE YOU WITH A SUPERIOR
FITTING IN PERFORMANCE, DESIGN AND ENGINEERING. WE ARE CONFIDENT
THAT IT WILL PERFORM TO YOUR EXPECTATIONS FOR MANY YEARS TO COME.
Caution!
Installation is entirely at your risk. Do not attempt installation unless you are suitably qualified. If you do
not understand a point in this manual, don't guess. Don't take short cuts. If in doubt, stop! Contact Philips Selecon
or one of its authorised distributors for advice. Don't be afraid to ask for help.
This SHORT FORM MANUAL is designed to provide you with the information that you will need IMMEDIATELY upon
unpacking your new luminaire. This manual covers information required for PLCYC2-03 products.
We recommend making a note of the serial numbers of your purchased luminaires for future reference.
(The serial number can be found on the sticker on the side of the yoke on the unit and on the outside of the box the unit was packed in).
Important Note: Before discarding the packaging ensure you have the suspension bolt set
Electrical Installation
WARNING!!! Risk of fire and electric shock. This product is to be installed by a qualified electrician only. Ensure that the AC
power is switched off before attempting to make any wiring connections.
This fixture employs a grounded type receptacle and is not intended for connection to a two-wire, ungrounded source of supply.
To avoid the chance of product damage or malfunction, disconnect power before connecting wires, and do not connect or
disconnect cables (supply, data, lamps and interface cables) when voltage is supplied to the luminaire.
Mains Voltage: 100-240VAC (+/- 10%). unit must be direct switching mains only, not via a dimmer system.
When installing this fixture use wire conductor colour codes as follows:
PLCYC2 luminaires can be linked together in a 'daisy chain' fashion, using a Powercon interconnect cable. The MAXIMUM
number of luminaires which can be linked together on one circuit is limited by the Input Voltage, the Maximum power supply limit
of 300W and the Maximum Allowable input current of 20A. So on a circuit capable of supplying the maximum 20A and:
on a 100V supply, a maximum of 6 units can be used
on a 240V supply, a maximum of 16 units can be used
Mounting
A safety bond MUST always be used when rigging luminaires on bars, trusses, etc. The safety bond is fixed to the luminaire
lamp-house anchor point, located at the top of the luminaire, and is wrapped around the bar and attached to itself. This is the
only recommended anchor point for the luminaire. Philips Selecon supplies a fitted safety bond with all theatrical / entertainment
luminaires.
The PLCYC range has been designed to meet demanding quality
light level applications – multiple luminaires are required to obtain
a visually even wash of light.
luminaires is to have a ratio of 5:4 (spacing apart : distance from
the wall). For example if the luminaires are 1.5m away from the
wall the optimum spacing between the luminaires for an even
wash of light would be 1.2m.
Philips Selecon has packaged this product using environmentally friendly packaging. Please consider
either reuse of the packaging or dispose of responsibly with your nearest recycling collection agency.
SF PLCYC2 – January 2012
SHORT FORM OPERATION MANUAL
Brown - Phase, live
Blue - Neutral, return
Green/Yellow - Earth, ground
Recommended spacing of
For optimum light distribution the PLCYC2 has been designed to be installed at a 45deg
nominal angle as indicated.
Adjusting the tilt angle
Loosen the lock off handle on each side of the
luminaire, tilt and retighten finger tight
Ambient Operating Temperature:
To guarantee product lifetime, the user should ensure that the ambient temperature
remains within the recommended temperature range.
REFER TO FULL MANUAL FOR MORE DETAILS
0°C to 40°C
pg1 of 4
