Settings

Pos : 18.1 /Übersc hriften/Übersc hriften 1/A-E/Ei nstellungen @ 0\mod_1199868783862_78.doc @ 36141
7 Settings
Pos : 18.2 /BA/Sicher heit/Gefahr enhinweis e/Vors ätz e/Gefahr Wartung allgemei n Vors ätz e/F eldhäc ksler (Mess erteller) @ 13\mod_1225453555895_78.doc @ 156385
Danger! - When performing repair, maintenance or cleaning work or when making
technical modifications to the machine, drive elements may start moving (caution:
cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Move the machine to the working position and lower it to the ground
• Switch off the forage harvester engine and remove the ignition key.
• Secure the forage harvester against accidental start-up and against rolling away.
• Switch off the PTO and disengage it.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and protective devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a doctor
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos : 18.3 /Übersc hriften/Übersc hriften 2/A-E/Abstand Abstr eifleis ten - F ördersc hnec ke einstellen @ 13\mod_1225692537051_78.doc @ 156478
7.1

Adjusting the distance between the scraper bars and the auger conveyor

Pos : 18.4 /BA/Eins tell ung en/Vorsätze/Abstand Abstr eifleis ten - För dersc hnec ke ei nstellen Bild @ 13\mod_1225692634207_78.doc @ 156502

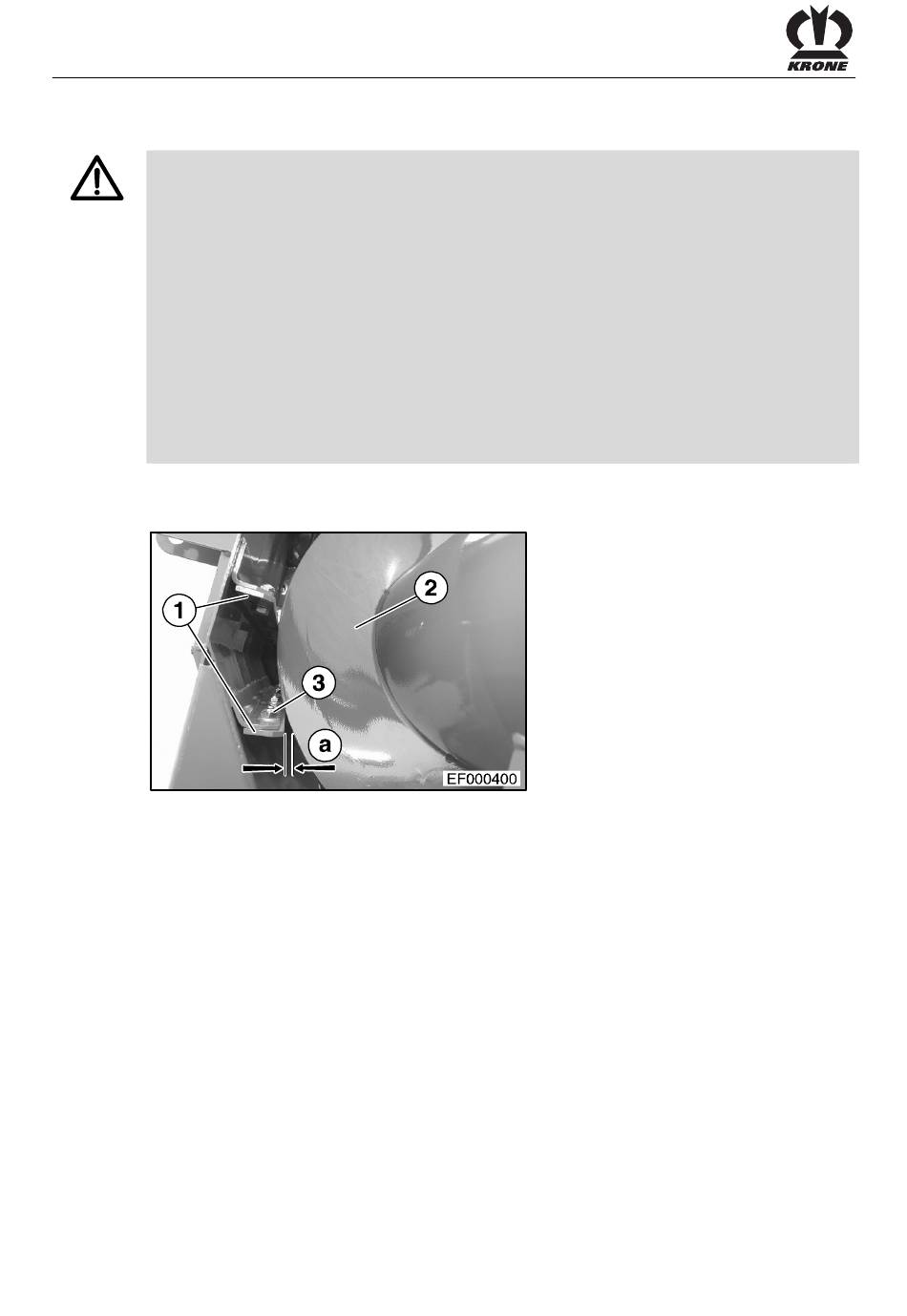

Fig. 15:
Pos : 18.5 /BA/Eins tell ung en/Vorsätze/Abstand Abstr eifleis ten - För dersc hnec ke ei nstellen @ 13\mod_1225692284832_78.doc @ 156459
The hopper has two scraper bars (1), one on the right and one on the left of the transfer
opening, which can be adjusted via the oblong holes. The distance between the scraper bars
(1) and the outer coating of the auger (2) should be "a = 3 mm".
• Loosen the screw connections (3) and adjust the distance to the scraper bars (1).
Pos : 19 /BA/-----Sei tenumbruch------ @ 0\mod_1196175311226_0.doc @ 4165
32
