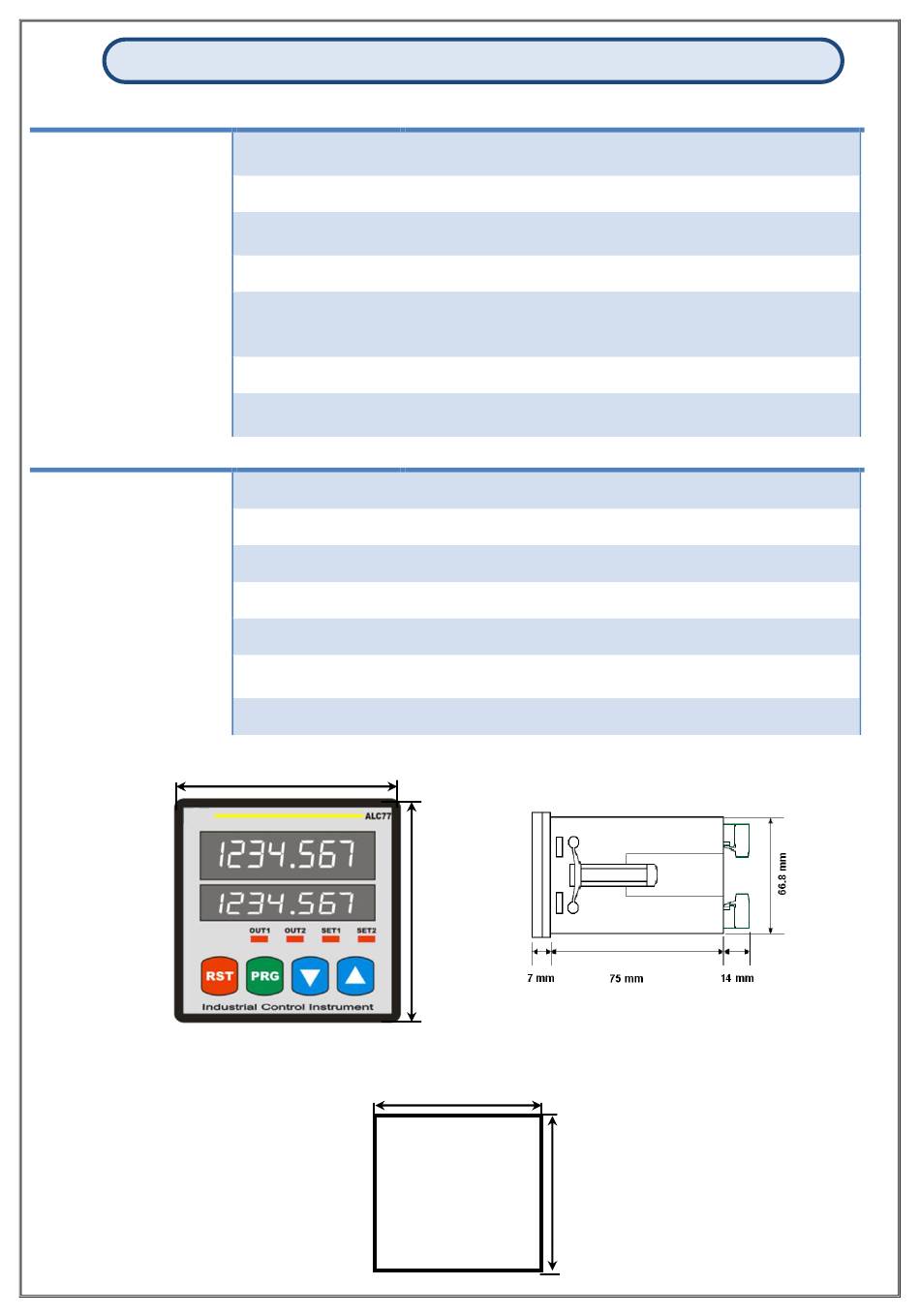

1. TECHNICAL FEATURES

ELECTRICAL CHARACTERISTICS
24 VAC/DC 50/60 Hz
SUPPLY VOLTAGE
85-265 VAC 50/60 Hz
POWER CONSUMPTION 5.5 VA / 4.4 W Max
SENSOR SUPPLY 5 VDC 100 mA (for TTL Sensor)
VOLTAGE 12 VDC 100 mA (for Push-Pull Sensor)
CONNECTION 2,5 mm² screw-clemens
A/B Encoder Pulse Inputs (600 KHz speed reading)
INPUTS Z (external reset) Input
Hold Input
OUTPUTS 2 pieces 250 VAC 3A (for Resistive Load) Relay
SERIAL
RS-232 (Optional)
COMMUNICATION
PHYSICAL CHARACTERISTICS
DIMENSIONS 73,5 x 73,5 x 96 mm
WEIGHT 300 gr.
MOUNTING Upper and lower legs are fixed to the clipboard.
RELATIVE HUMIDITY %80 up to 31 °C , %50 up to 40 °C
STORAGE TEMPERATURE -10 UP TO 60 °C
OPERATING
0 UP TO 50 °C
TEMPERATURE
PROTECTION CLASS IP 60 Front Panel, IP 20 Back panel
DIMENSIONS
73,5 mm
73,5 mm
Pano Dimensions:
69 mm
69 mm
- 1 -
