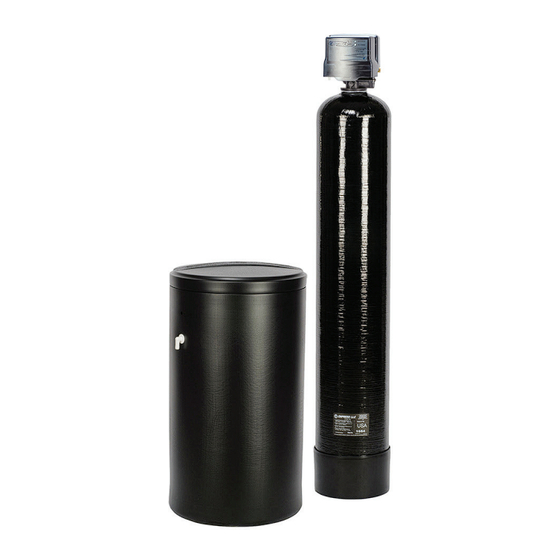

Clearion 300 Series Manual
Nitrate / sulfate
Hide thumbs
Also See for 300 Series:
- Service manual (23 pages) ,
- Installation & operation manual (13 pages)
Related Manuals for Clearion 300 Series
Summary of Contents for Clearion 300 Series

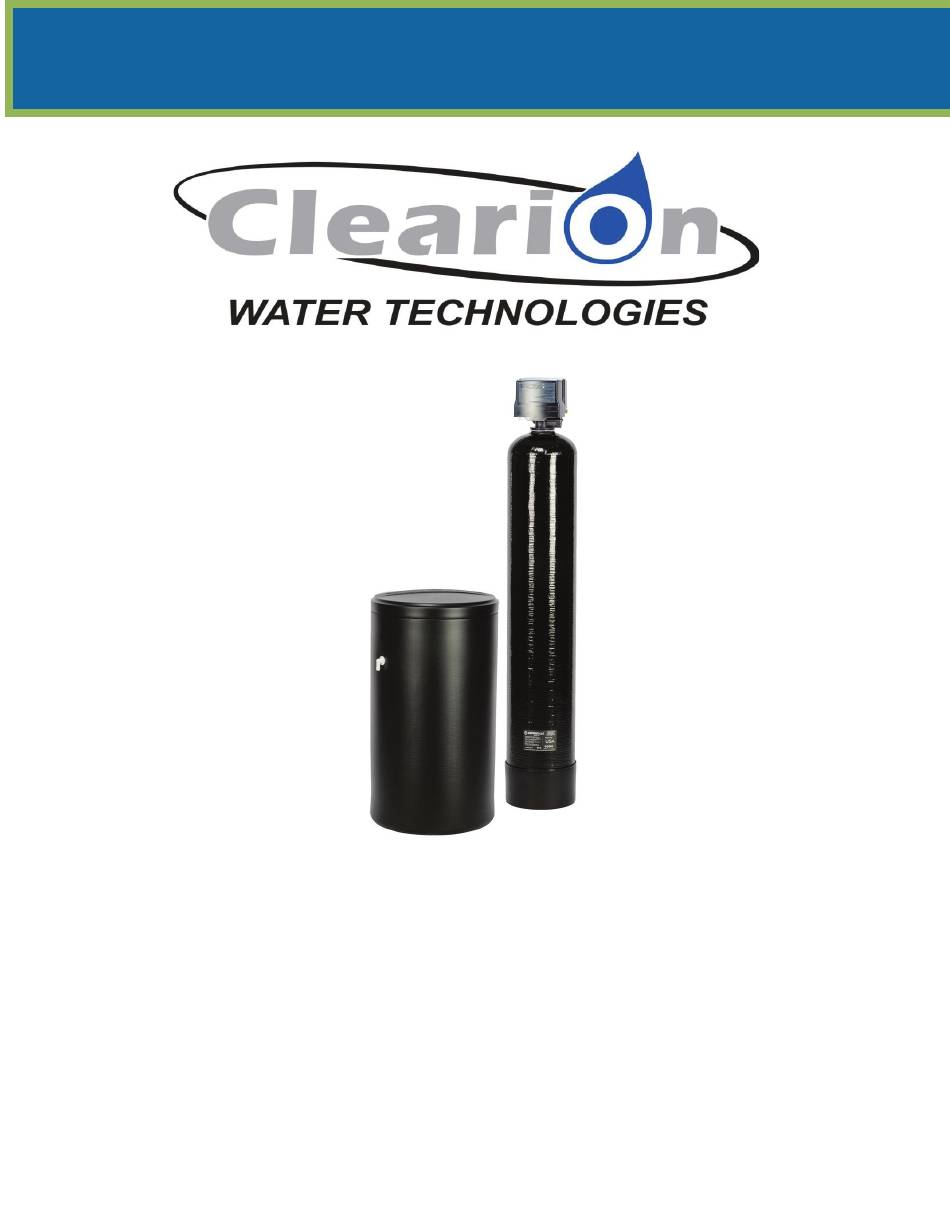

- Page 1 300 SERIES 300 Series Nitrate / Sulfate Manual Installation / Operation Manual Fully Automatic & Demand Water Softeners - 2017...
-
Page 2: Table Of Contents
300 SERIES Specifications................ Page 3 Installation................Page 4 Control Valve Start Up............Page 10 Utilizing Bluetooth..............Page 14 Powerhead Assembly............Page 17 Valve Body Assembly............Page 18 Valve Body Parts..............Page 19 Bypass Assembly..............Page 20 Service Instructions............. Page 21 Troubleshooting.............. -
Page 3: Specifications
300 SERIES Specifications General Specifications CLMN15 CLMN25 Grains Capacity / Regeneration 15,000 25,000 Salt Used / Regeneration 18.0 30.0 Maximum Raw Water Nitrate / Sulfate (mg/l) Maximum Clear Iron / Manganese (ppm) Exchange Resin (cu ft) Mineral Tank (Vortech ™) -
Page 4: Installation
300 SERIES Installation Note: Due to the Nitrate System abilities to remove bi-carbonate (alkalinity) from the water, a dramatic reduction in pH of the treated water may be experienced. If this occurs, a whole house or upflow filter with neutralizer or Neu-Cor media may be required. - Page 5 300 SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water.
- Page 6 300 SERIES Installation - Drain Line Connection - 1. The drain line flow control assembly is pre-assembled for your convenience. Should you chose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pulling straight out on housing.
- Page 7 300 SERIES Installation How To Calculate Regeneration Frequency Note: The quantity of both nitrate and sulfate must be known for proper regeneration calculation. Step 1: Convert Nitrate (NO3) and Sulfate (SO4) to Calcium Carbonate (CaCO3). Nitrate Divide ppm (mg/l) of Nitrate by 62 and multiply by 50.1...
- Page 8 300 SERIES Installation Step 4: Calculate the grains capacity for the system being installed. Example : MN15 = 1.5 cu. ft. x 8,500 grains / cu. ft. = 12,750 total grains capacity Step 5: Calculate total grains of nitrate. ppm as CaCO = grains of Nitrate 17.1...
- Page 9 300 SERIES Installation Filling The Brine Tank With Salt To expect a high level of performance and reliability, a salt manufactured specifically for water softeners must be used. Salt of this grade is virtually free from dirt and other particulate that would eventually cause the nitrate filter to malfunction.
-
Page 10: Control Valve Start Up
300 SERIES Control Valve Start Up - Programming The Control Valve - 1. Set time of day. 2. Set a.m. or p.m. 3. Set water hardness in grains per gallon (gpg). Note: If the water contains iron and / or manganese, multiply the total parts per million (ppm) by “four” (4) and then add to the grains per gallon (gpg) of hardness. -
Page 11: Main Menu
300 SERIES Control Valve Start Up Main Menu 12:00 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash) 2. To set the Time of Day, press the Set/Change button. (First digit will flash) Example [12-00] To change digit value, press the Set/Change button. -
Page 12: Normal Operation
300 SERIES Control Valve Start Up Normal Operation 1. Home Display a. Time Clock Softeners -Alternates between the display of Time of Day and Number of Days until the Next Regeneration. - Days Remaining until the Next Regeneration will count down from the entered value until it reaches 1 day remaining. - Page 13 300 SERIES Control Valve Start Up Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode.
-
Page 14: Utilizing Bluetooth
300 SERIES Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2. - Page 15 300 SERIES Utilizing Bluetooth Control 1. Change Time of day (Press “set” to set time automatically based on device time) 1. Set Backwash Frequency This sets the amount of days between backwash cycles. 1. Set Regeneration Time Example: For 2am, just type 2 and press OK.
- Page 16 300 SERIES Utilizing Bluetooth Control Status and History NOTE: Any water flow information will require installation of optional flow meter. From the Status and History, all items in ORANGE can be reset. Touch any table to explode a detailed list of the last 60 days.
-
Page 17: Powerhead Assembly
300 SERIES Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS Description Part Number Metered Power Head Assy. 23003X100 Softener Circuit Boad Assy. 23001X102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate 20001X005... -
Page 18: Valve Body Assembly
300 SERIES Valve Body Assy. (Softener Version) 21/22... -
Page 19: Valve Body Parts
300 SERIES Valve Body Assy. Parts List(Softener Version) Description Part No. Piston Assembly 20001X231 10-24 X 13/16 Hex Head 20001X226 Seal and Spacer Kit 20561X253 Bottom Spacer DLFC 1.2 Button 20251X275 DLFC 2.4 Button 20251X268 Flow Control Assembly 1.2 20017X265 Flow Control Assembly 2.4... -
Page 20: Bypass Assembly
300 SERIES Bypass Assembly Description Part No. D15 Bypass 20017X283 1” Female Straight Slip Set 20017X288 (optional) 1” NPT Elbow Set 20017X284 1” NPT Straight Set 20017X289 (optional) Elbow, Vertical Adapter 20017X295 (optional) Blank Elbow, Vertical Adapter 20017X294 (optional) 1/4” NPT Tapped... -
Page 21: Service Instructions
300 SERIES Service Instructions / Instructional Videos Available at www.clearionwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. - Page 22 300 SERIES Service Instructions / Instructional Videos Available at www.clearionwater.com To Service Injector and Screen 1. Follow steps A1-A2. 2. Unscrew injector cover screws and remove injector cover. 3. Remove injector screen and clean or replace. 4. Remove injector and clean or replace.
-
Page 23: Troubleshooting
300 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1. Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically... - Page 24 300 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Plugged drain line or drain line control Check flow to drain. Clean drainline flow control button 7. Excessive Water in Dirty or damaged brine valve Clean or replace brine valve. Brine Tank and / or Plugged injector or screen Clean or replace injector screen.
-
Page 25: Error Codes
300 SERIES Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration. -
Page 26: Warranty
ILY HOME, this warranty covers your water treatment equip- ranty, and does not apply unless prompt notice of any claim ment, if you are the first user of this Clearion water treatment is given to an authorized Clearion Dealer or to Clearion or a... - Page 27 300 SERIES...
- Page 28 300 SERIES 710 Orange St, Ashland, OH 44805 PH 419-281-8962 l FAX 419-281-2375 l www.water.com 1018TV...
