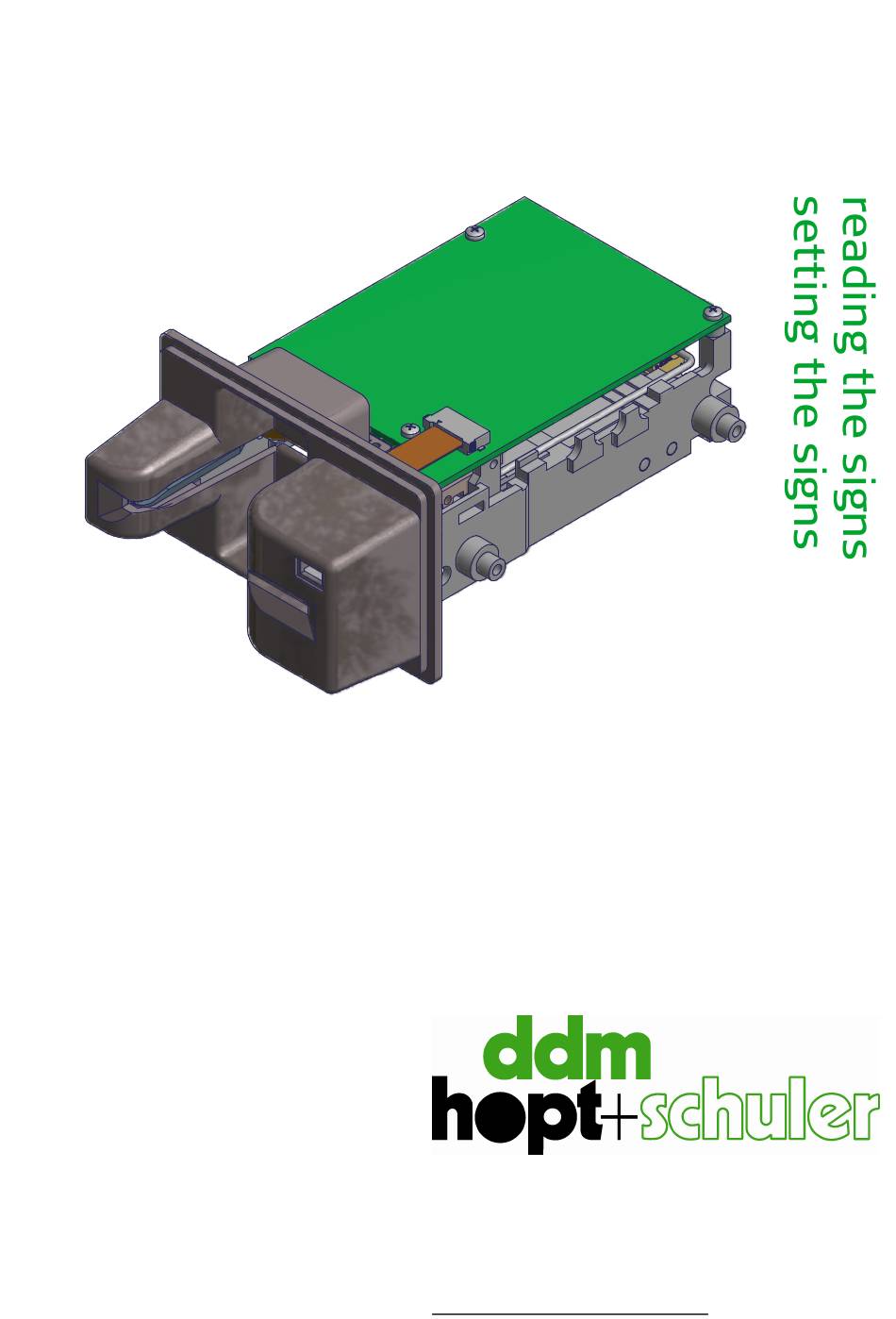

Hybridkartenleser 862-A22S1U027B0
Hybrid Card Reader 862-A22S1U027B0
die zeichen lesen
die zeichen setzen
D-78628 Rottweil | Königsbergerstr. 12
Tel. (++49) 7 41 / 26 07-0
Fax (++49) 7 41 / 1 33 98
ddm@hopt-schuler.com
www.hopt-schuler.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 862-A22S1U027B0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddm hopt+schuler 862-A22S1U027B0

Summary of Contents for ddm hopt+schuler 862-A22S1U027B0

  • Page 1 Hybridkartenleser 862-A22S1U027B0 Hybrid Card Reader 862-A22S1U027B0 D-78628 Rottweil | Königsbergerstr. 12 Tel. (++49) 7 41 / 26 07-0 Fax (++49) 7 41 / 1 33 98 ddm@hopt-schuler.com www.hopt-schuler.com...

  • Page 2: Table Of Contents

    Environmental conditions 4.1 Klimatische Bedingungen Climatic conditions 4.2 Chemisch aktive Stoffe Chemical active substance 4.3 Mechanisch aktive Stoffe Mechanical active substance 4.4 Mechanische Belastung Mechanical load 5.0 Kartenspezifikation Rev. 0 Cardspecification 5.1 Magnetkarte Magnetic card 5.2 Chipkarte Chip card 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 3 Rev. Datum Kapitel Beschreibung der Änderung 6.0 Einbaumaße Rev. 0 Dimensions 6.1 Adaption RFID-Modul Adaption RFID-Module 7.0 Schnittstelle Rev. 0 Interface 8.0 Bestellschlüssel Rev. 0 Ordering code 9.0 RoHs II + REACH - Konformitätserklärung Rev. 0 Conformity explanation 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 4 Mod.-Nr.: Modification Description 06.00 07.06.2013 0826 PCN about the card stop in all housings and a better fixation of the spring from the power pull mechanic,by the extension of the side block card stop side block card stop 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 5: Allgemeine Betreiber Hinweise Global User Information

    · ISO 7811/3 Identification cards - location of embossing characters on ID-1 cards · ISO 7811/4 Identification cards - recording technique (track 1, 2) · ISO 7811/5 Identification cards - recording technique (track 3) · ISO 7816/1 to 6 Identification cards - integrated circuit(s) cards with contacts 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 6: Mechanische Kennwerte Mechanical Characteristics

    Hybridkartenleser hopt + schuler Hybrid Card Reader 2.0 Mechanische Kennwerte Mechanical characteristics 2 .1 Abmessungen 50 mm x 100,4 mm x 124 mm Dimensions 123,8 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 7: Mounting Example

    Hybridkartenleser hopt + schuler Hybrid Card Reader 2.2 Befestigungsbeispiel Mounting example 20,3 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 8: Chipkontakt Chipcontact

    Bit density Spur 3 - 210 Bpi Lesen / read vorwärts und rückwärts Leserichtung 10cm - 1m / sek. Steckgeschwindigkeit Reading forward and backwards Reading speed 10cm - 1m / sec sicherer Magnetkopf Sonderbaugruppe Assembly secure magnetic head 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 9: Allgemein General

    The increased wear of the magnetic head or the chip contacts can also require the exchange of these parts within the ensureness period. These wear parts are therefore excluded from the ensureness. 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 10 If the power - pull funktion has been used, the status of the locking system has to checked by software, and the locking system has to be moved to open position. 20 - 25 Newton Betätigungskraft Power Pull Activation power pull 20 - 25 Newton 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 11: Elektrische Kennwerte Electrical Characteristics

    Version b Software 862-EMV LIB 1.0 Version 1,0 As tested in 3.3 Communications Protocoll with Smart Card T=0, T=1, 3.4 Encrypted Magnetic head All 3 tracks can be encrypted, AES is possible. 3.5 MTBF (Electronics ) 90.000 hours 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 12: Chip Contacts

    800 V (eff / -) IEC 664 Impulse voltage Verschmutzungsgrad IEC 664 Pollution > 0.6 mm Luftstrecke IEC 664 Clearance distance 0.6 mm Kriechstrecke IEC 664 Creapage distance Kontaktkapazität < 6 pF IEC 512 - , Test 22a Contact capacity 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 13: Umgebungsbedingungen Environmental Conditions

    10 ... 100 % relative Luftfeuchtigkeit, Humidity nicht kondensierend 10 ... 100 % relative humidity, not condensing Luftdruck 70 ... 106 kPa Air pressure 4.2 Chemisch-aktive Stoffe Chemical active substance EN 60721-3-3 (3C2) 4.3 Mechanisch-aktive Stoffe Mechanical active substance EN 60721-3-3 (3S3) 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 14: Mechanische Belastung

    Impuls 40 g / 6 ms Impulse Anzahl pro Lage 100 ± 5 Number per axis d.) Kippfallen IEC 68-2-31 DIN EN 60068-2-31 Drop test Unterlage PVC auf Beton Surface Fallhöhe 25 mm Drop hight Schräglage 30° Angle 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 15: Kartenspezifikation Cardspecification

    Hybridkartenleser hopt + schuler Hybrid Card Reader 5.0 Kartenspezifikation Cardspecification 5.1 Magnetkarte Magnetic card Spur 1 track 1 Spur 2 track 2 Spur 3 track 3 85.47 / 85,72 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...

  • Page 16: Chipkarte Chip Card

    Hybridkartenleser hopt + schuler Hybrid Card Reader 5.2 Chipkarte Chip card ISO-8 0,08 0,76 - 0,08 85,47 / 85,72 oberer Kartenrand upper edge linker Kartenrand left edge 10,25 max. 12,25 min. 17,87 max. 19,87 min. (ISO 7816-2) 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 17 Hybridkartenleser hopt + schuler Hybrid Card Reader 6.0 Einbauzeichnung Dimensions 97,3 20,3 26,5 Massangaben in mm Unit: mm Masse ohne Toleranz ± 0,5 General tolerance ± 0.5 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 18 - Power supply: between 5 and 12 Volts DC - Typical consumption: less than 50 mA - The card latch circuit adds approx 250mA for a period of 40ms during latch close and latch open operation. - RS232 C Serial link Pin 1 Direction Signal 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 19 / Kunststoff with / plastic mit / Metall Ausführung with / version metal Flache Karteneinführung 100x76, M3 2-001605-00 flat bezel 100x76, M3 KE mit LED transparend KE with LED translucid 862-A22S1U027B0-SPZ.idw Blatt.-Nr.:...
  • Page 20 ROHS II + REACH conformity explanation Hiermit bstätigen wir, dass das Produkt Hereby we confirm that the product 862-A22S1U027B0 keinerlei giftige Substanzen enthält, die in der ROHS II Directive 2011/65/EU und in der REACH - Richtlinie (EC) Nr. 1907/2006 spezifiziert sind does not contain any substances, which are specified in the ROHS II Directive 2011/65/EU and in the REACH - Directive (EC) No.
